GE8061Si16.05A956

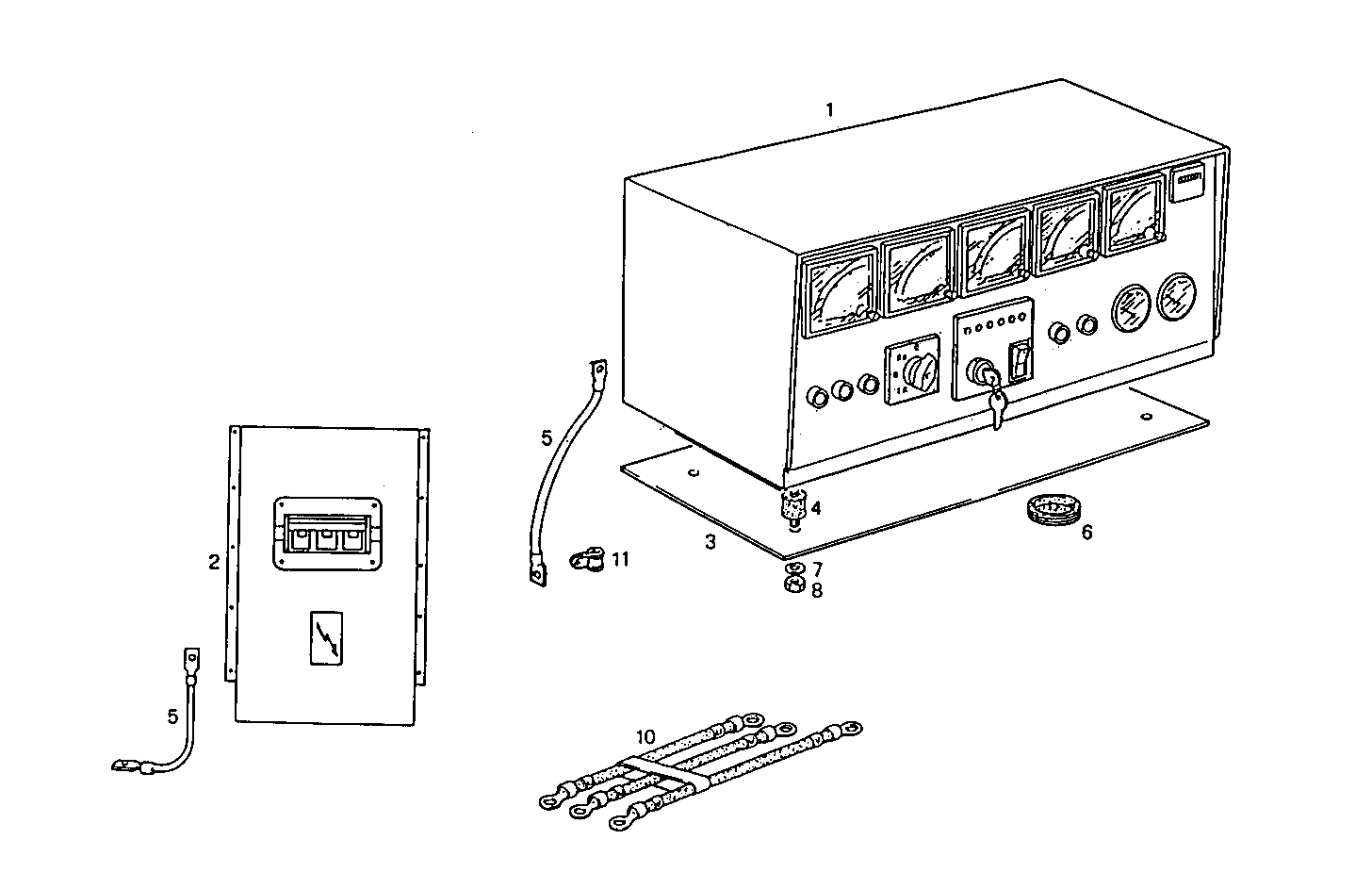

A60330007 MANUAL CONTROL BOARD FOR ELECT. MACHINE - MARELLI (GAC-HUGLI)
| Item | Part number | Description |
|---|---|---|
| 1 | 8018946 | CONTROL BOARD ASSY 220V 50-60Hz |
| 2 | 8010036 | SWITCH 320A |
| 3 | 8019202 | COVER |
| 4 | 8104155 | DOWEL |
| 5 | 8110852 | EARTH WIRE |
| 6 | 8113214 | INSULATING RING |
| 7 | 17088474 | WASHER Ø6X12 MM |
| 8 | 17037821 | HEXAGON NUT M6X1 |
| 10 | 8010362 | EARTH WIRE |
| 11 | 17314890 | CLIP |
