GE8061Si16.06A955

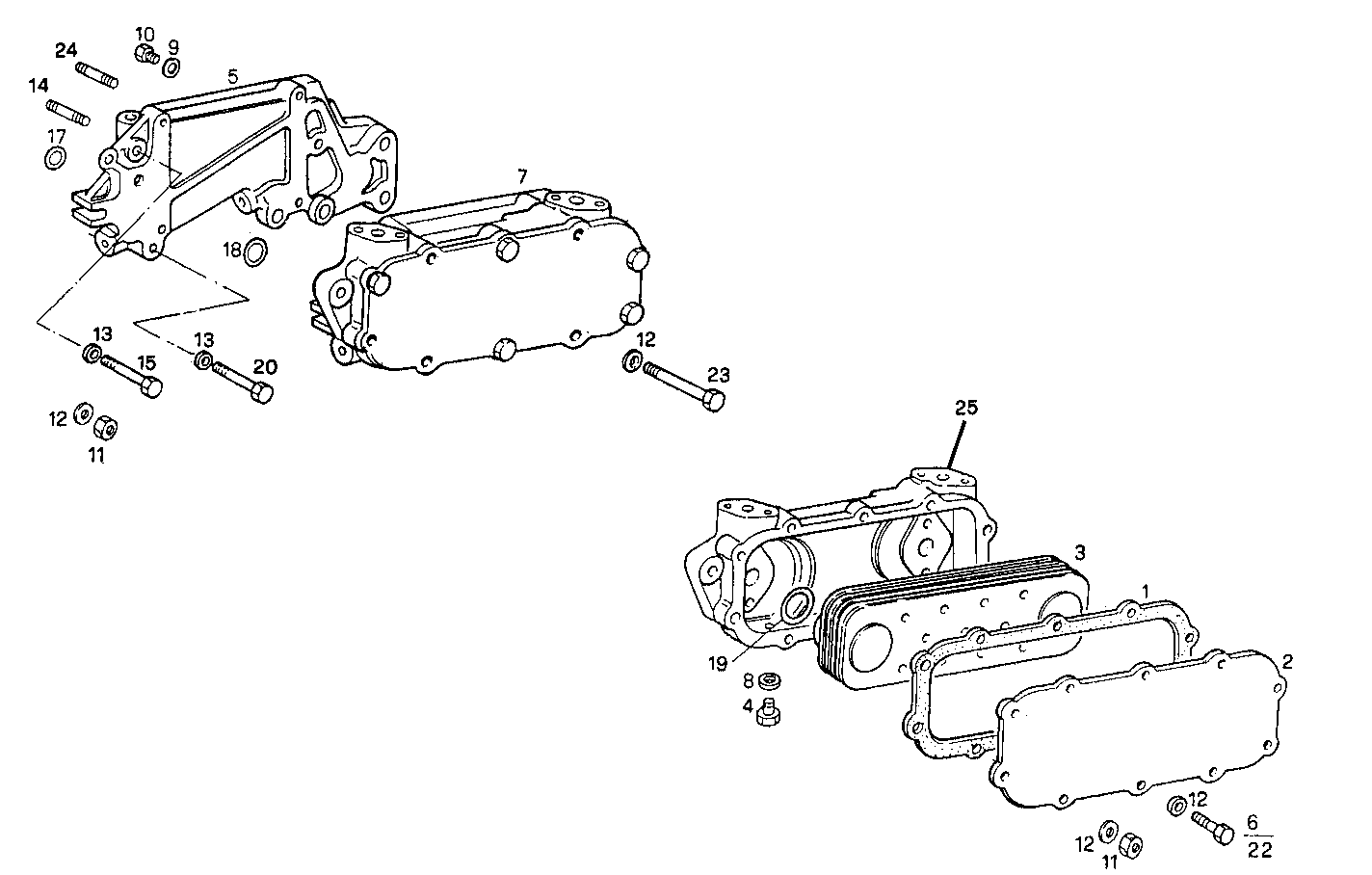

3100.050 OIL - WATER HEAT EXCHANGER

Iveco/FPT OIL - WATER HEAT EXCHANGER

Item Part number Description
1 98400786 FLAT ENGINE GASKET
2 98407795 HEAT EXCHANG.COVER [from 546031]
3 98417614 OIL COOLER
4 98435232 PLUG
5 4763099 SUPPORT
6 16605734 HEXAGON BOLT M8X30 MM
7 4770264 HEAT EXCHANGER ASSY
8 10260060 SEAL GASKET Ø8X12X1 MM
9 4858610 WASHER Ø18X24 MM SP=1,5 MM
10 16993311 THREADED PLUG M18X1,5
11 17038221 HEXAGON NUT M10
12 10519601 WASHER Ø8X17 MM
13 17090274 WASHER Ø10X20 MM
14 4853521 STUD M12x1,75 <--> M10x1,25
15 11234721 HEXAGON BOLT M10X1,25X45 MM
17 17281981 O-RING Ø18,7 MM SP=2,6 MM
18 14457481 O-RING Ø18,72 MM SP=2,62 MM
19 14458281 O-RING Ø2,62X31,42 MM
20 16610224 HEXAGON BOLT M12X1,75X45 MM
22 16043221 HEXAGON BOLT M8X16 MM
23 16045021 HEXAGON BOLT M8X90 MM
24 98413488 STUD M10X1,25
25 4770208 HEAT EXANGER BODY
