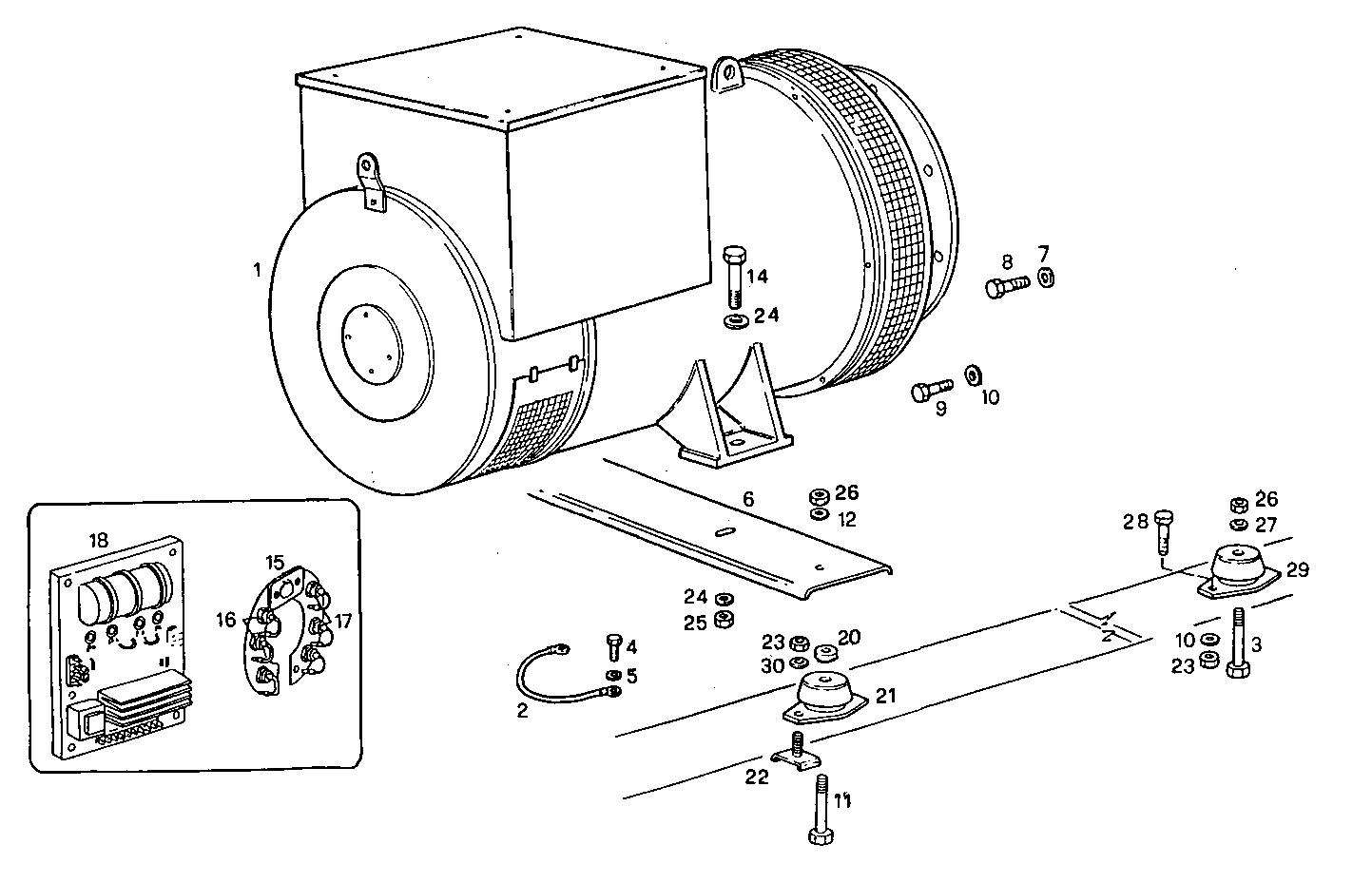

| Item |
Part number |
Description |
|
1 |
8020559 |
ELECTRIC MACHINE LSA 441L7 60HZ |
|
2 |
8104707 |
WIRE/CABLE |
|
3 |
16614624 |
HEXAGON BOLT M16X40 MM |
|
4 |
16043124 |
SCREW M8X14 MM |
|
5 |
17089471 |
SPRING WASHER �16X8 MM SP=1,4 MM |
|
6 |
8015167 |
SUPPORT |
|
7 |
17494934 |
WASHER �10X18,1X2,2 MM |
|
8 |
15970521 |
HEXAGON BOLT M10X20 MM |
|
9 |
15970921 |
HEXAGON BOLT M10X1,25X35 MM |
|
10 |
17090174 |
SPRING WASHER �10X20 MM |
|
11 |
16620624 |
SCREW M24X130 |
|
12 |
17093174 |
WASHER �24X46X5,4 MM |
|
14 |
16614924 |
SCREW M16X55 |
|
15 |
8091777 |
SUPPRESSOR |
|
16 |
8093369 |
DIODE - |
|
17 |
8093368 |
DIODE + |
|
18 |
8090756 |
EL.MACHINE VOLTAGE REGUL. |
|
20 |
8010711 |
SPACING BAR |
|
21 |
4911960 |
RUBBER PAD |
|
22 |
8015168 |
SCREW |
|
23 |
17037821 |
HEXAGON NUT M6X1 |
|
24 |
17092174 |
SPRING WASHER �16X32X3,4 |
|
25 |
17039421 |
NUT M20X1,5 |
|
26 |
17038921 |
NUT M16X2 |
|
27 |
17092374 |
SPRING WASHER �16X34X3,6 MM |
|
28 |
16606524 |
HEXAGON BOLT M8X70 MM |
|
29 |
4955094 |
RUBBER PAD |
|
30 |
17091674 |
WASHER �14X27X3,0 MM |
