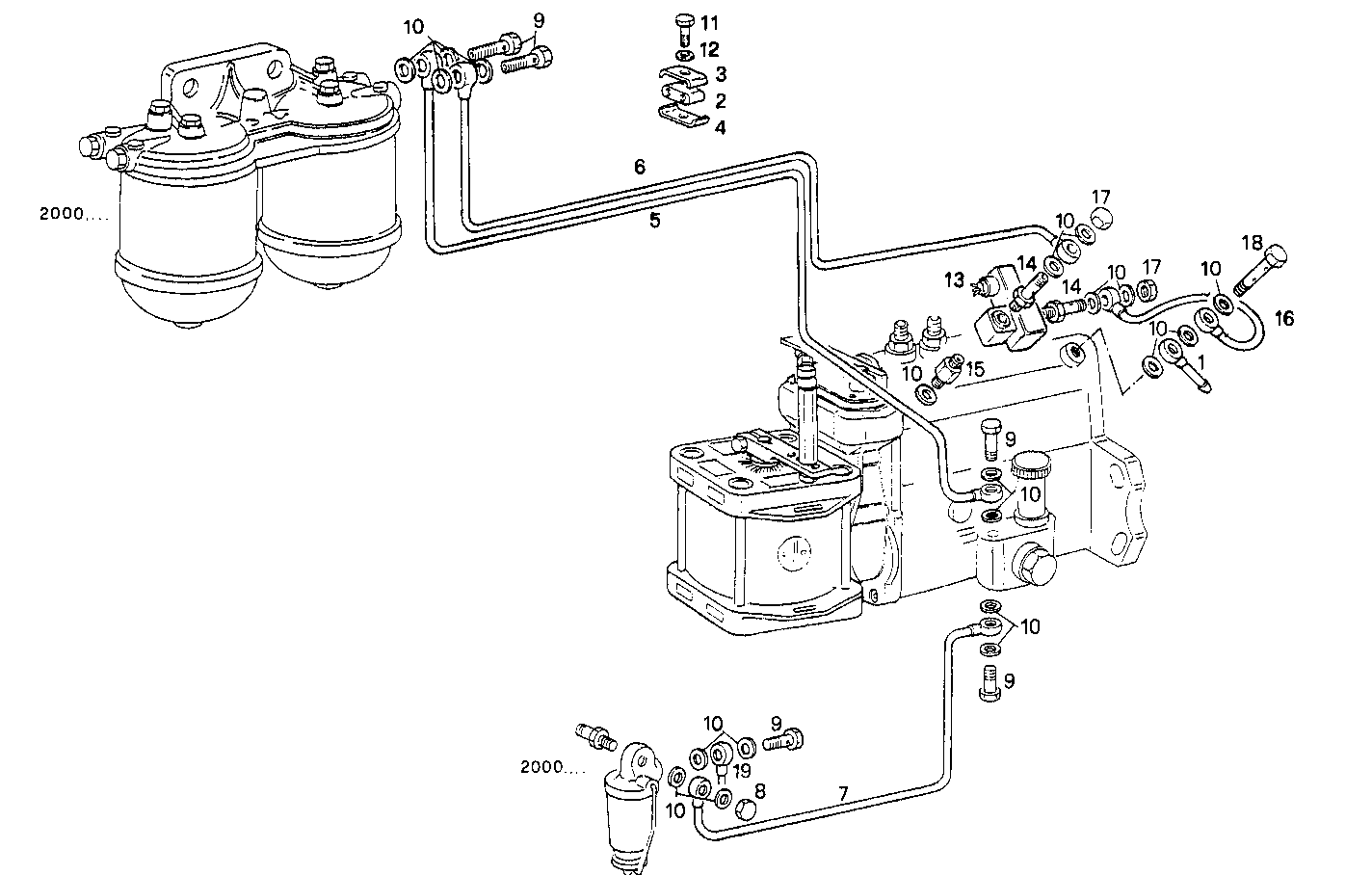

2030.036 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 98413896 | PIPE SOCKET Ø8 MM |
| 2 | 4659217 | DOWEL |
| 3 | 4659218 | CLIP |
| 4 | 4659219 | PLATE |
| 5 | 98420170 | FUEL LINE |
| 6 | 8011089 | INJECTION LINE |
| 7 | 98413562 | FUEL LINE |
| 8 | 10182817 | LOCK PLUG |
| 9 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 10 | 98474308 | SEAL GASKET Ø14X22 MM |
| 11 | 16602324 | HEXAGON BOLT M5X25 MM |
| 12 | 17494634 | SPRING WASHER Ø5,1X9,2 MM |
| 13 | 8108944 | ELECTROVALVE |
| 14 | 4929627 | PIPE SOCKET |
| 15 | 4929626 | PIPE SOCKET |
| 16 | 8011090 | INJECTION LINE |
| 17 | 61320123 | SCREW CONNECTOR |
| 18 | 4936577 | SCREW CONNECTOR |
| 19 | 98404882 | PIPE SOCKET Ø8 MM |
