GE8061SRi25.05A955

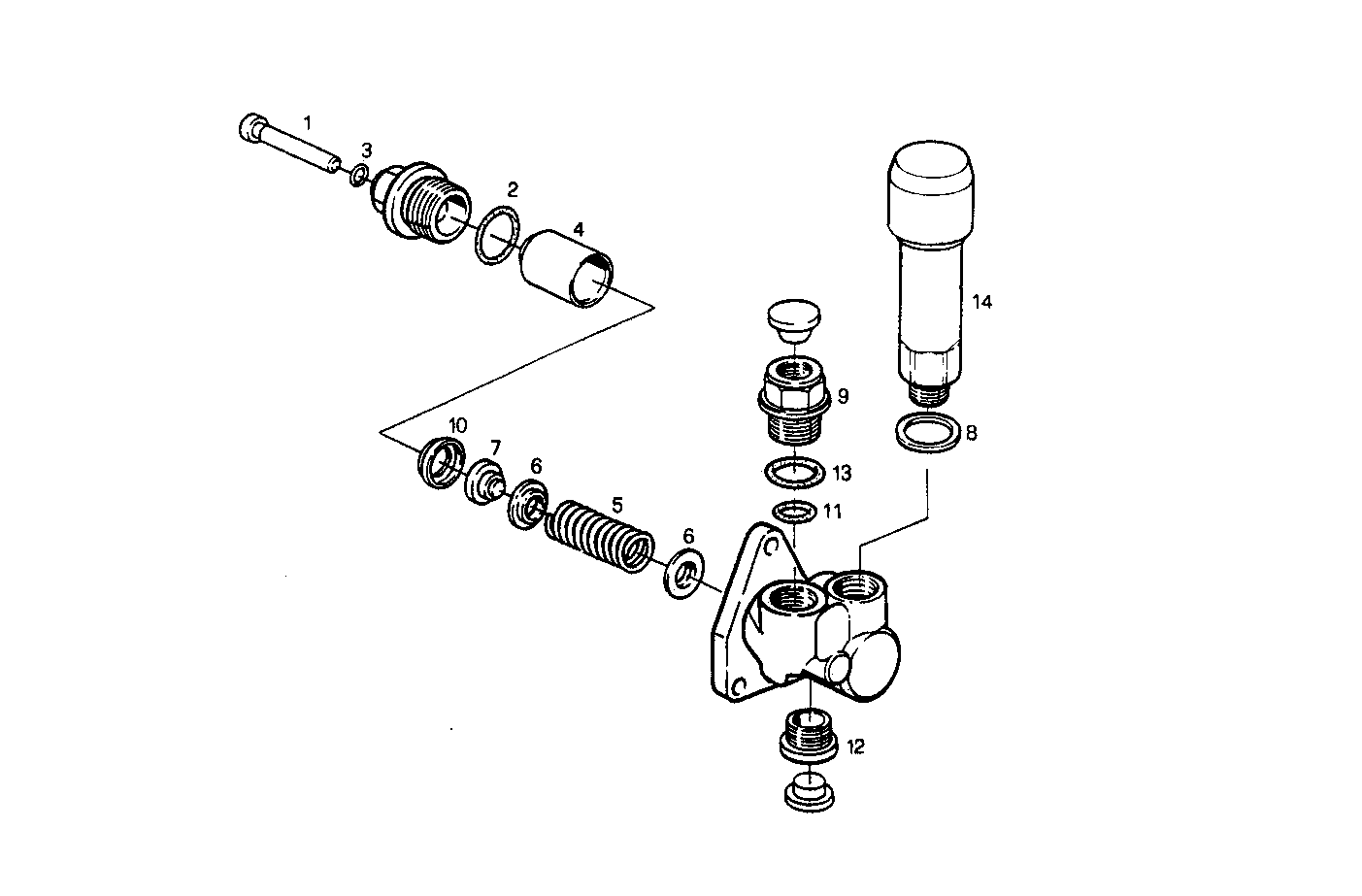

2040.018 FUEL PUMP (COMPONENTS)
| Item | Part number | Description |
|---|---|---|
| 1 | 93163022 | VALVE |
| 2 | 93156915 | O-RING |
| 3 | 79070369 | O-RING |
| 4 | 93156916 | PUMP PLUNGER |
| 5 | 93163024 | SPRING |
| 6 | 93156918 | CAP SP=0,5 MM |
| 7 | 1290608 | SHUT-OFF VALVE |
| 8 | 1287773 | GASKET |
| 9 | 93163025 | THREADED UNION |
| 10 | 93156919 | CAP |
| 11 | 93163026 | O-RING |
| 12 | 93163027 | THREADED UNION |
| 13 | 8190308 | WASHER |
| 14 | 93191167 | HAND PUMP |
