GE8061SRi25.05A955

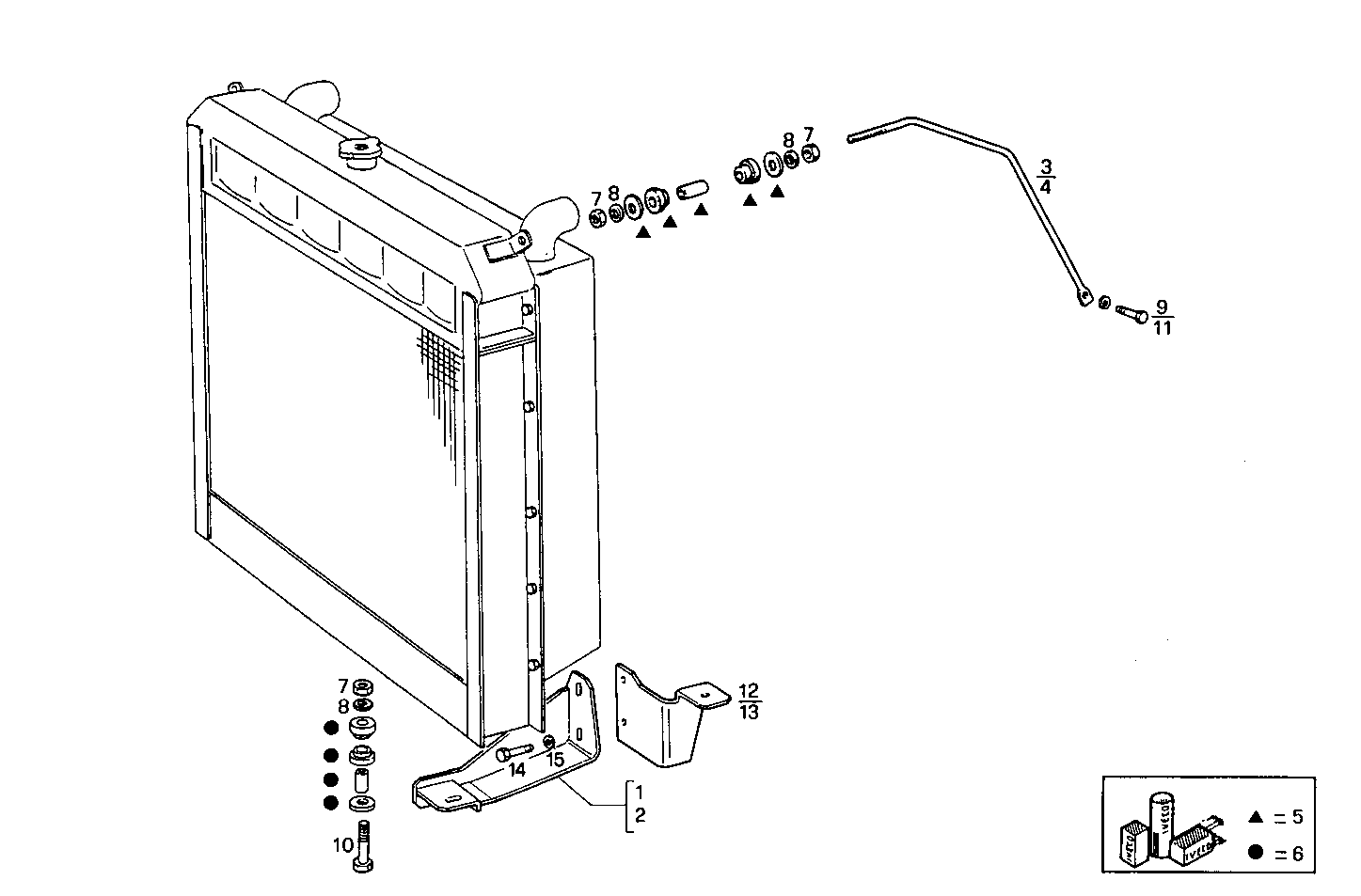

3300.004/03 RADIATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 8008619 | SUPPORT LEFT |
| 2 | 8008618 | SUPPORT RIGHT |
| 3 | 8008257 | TIE ROD RIGHT |
| 4 | 8008258 | TIE ROD LEFT |
| 5 | 8090413 | KIT-RADIATOR A.S. COMPLETE |
| 6 | 8090977 | KIT-RADIATOR A.S. COMPLETE |
| 7 | 17038621 | NUT M12 |
| 8 | 17091074 | WASHER Ø12X24X2,8 MM |
| 9 | 98411344 | SCREW LEFT |
| 10 | 15541221 | HEXAGON BOLT M12X1,25X70 MM [up to 565948] |
| 11 | 16605734 | HEXAGON BOLT M8X30 MM |
| 12 | 8106383 | ENGINE SUSPENSION RIGHT |
| 13 | 8106384 | ENGINE SUSPENSION LEFT |
| 14 | 11390521 | HEXAGON BOLT M16X1,5X40 MM |
| 15 | 17092171 | WASHER Ø16X32X3,4 MM |
