GE8061SRi25.06A955

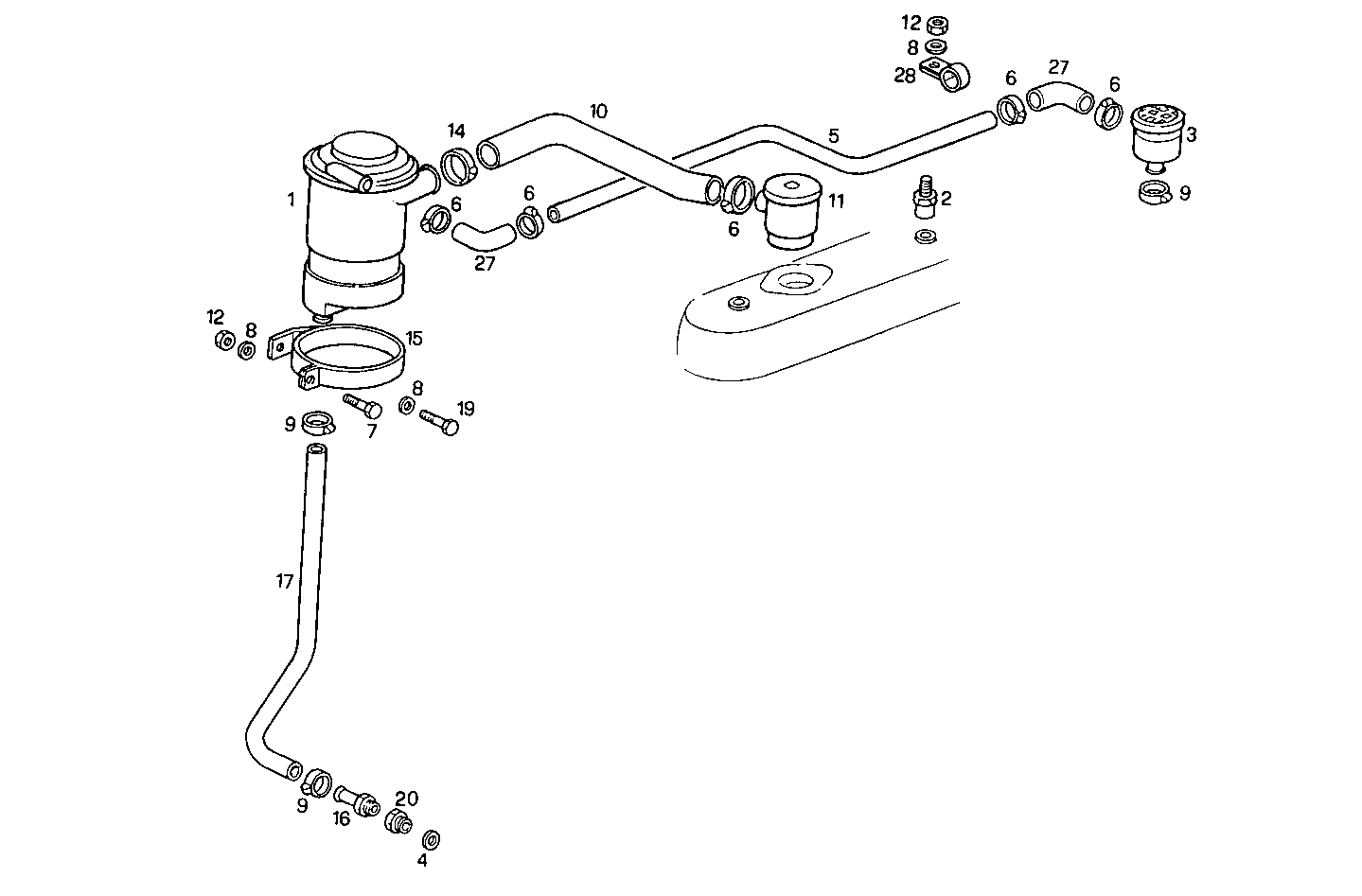

0450.166 ENGINE BREATHERS

Iveco/FPT ENGINE BREATHERS

Item Part number Description
1 4858569 BREATHER
2 8009967 NUT
3 4810557 BYPASS VALVE
4 10265060 SEAL GASKET Ø32X38 MM SP=1,5 MM
6 17764591 CLIP Ø20/32 MM
7 16605524 HEXAGON BOLT M8X20 MM
8 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
9 18088393 CLIP Ø16/25 MM
10 8021614 RUBBER SLEEVE
11 4812047 BREATHER
12 17037931 HEXAGON NUT M8X1,25
14 17764693 CLIP Ø25/40 MM
15 8021600 RETAINER
16 8110268 PIPE SOCKET M16X1.5
17 8024928 AIR HOSE
19 16605424 SCREW M8X16 MM (8.8)
20 8008802 PIPE SOCKET M32X1,5/M16X1,5
27 8108085 RUBBER SLEEVE
28 4033229 CLIP
