GE8061SRi25.06A955

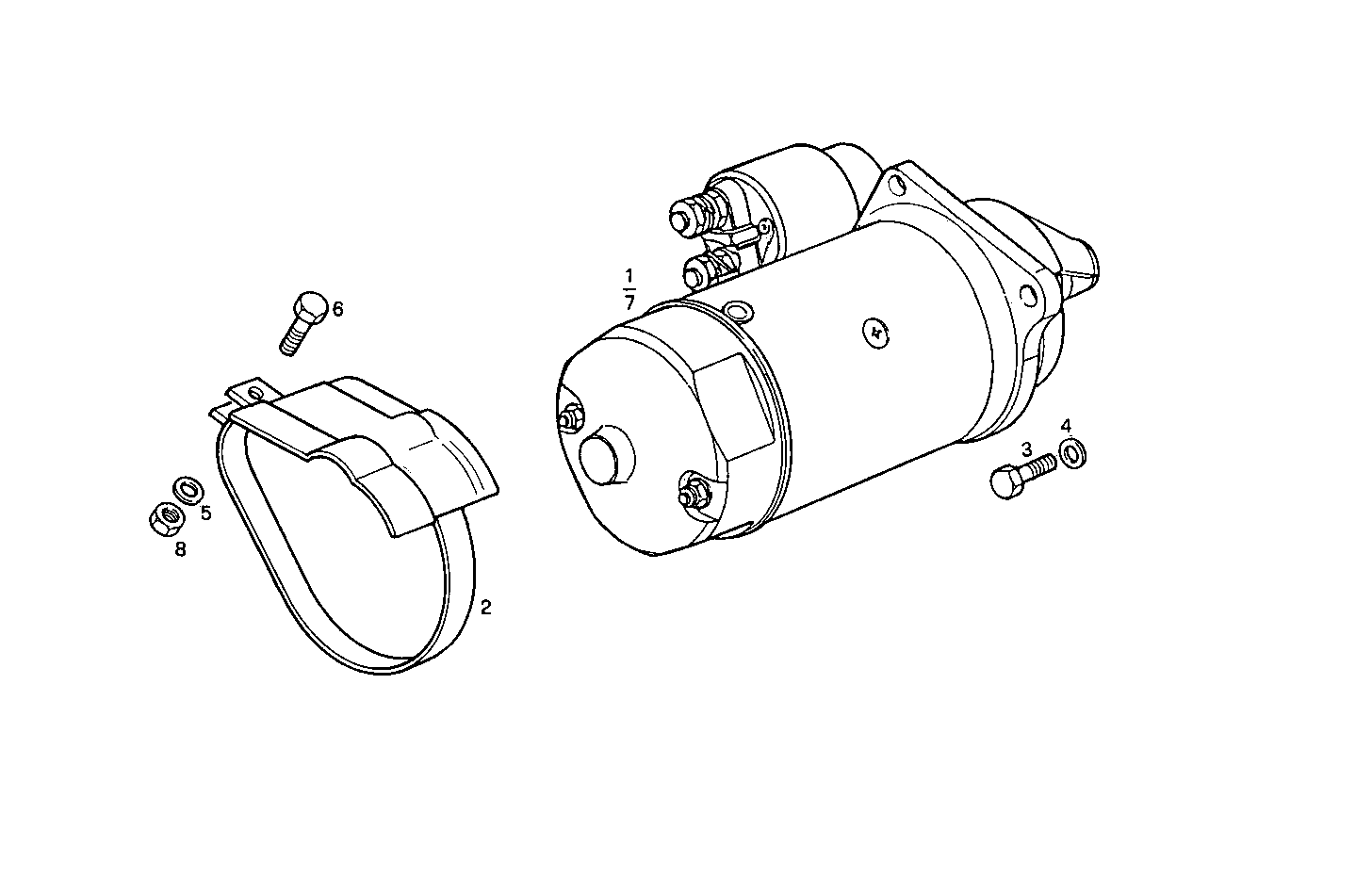

3600.096 STARTER MOTOR
| Item | Part number | Description |
|---|---|---|
| 1 | 500325185 | STARTER MOTOR ASSY BOSCH - 24V - OPT. [from 01-00] |
| 2 | 500398382 | PROTECTION [from 01-00] |
| 3 | 11306921 | SCREW M10X1,25X30 |
| 4 | 17090174 | SPRING WASHER Ø10X20 MM |
| 5 | 17088474 | WASHER Ø6X12 MM |
| 6 | 16604124 | HEXAGON BOLT M6X40 MM |
| 7 | 4807378 | STARTER MOTOR ASSY MARELLI |
| 8 | 17037821 | HEXAGON NUT M6X1 |
