GE8061SRi27.05A956

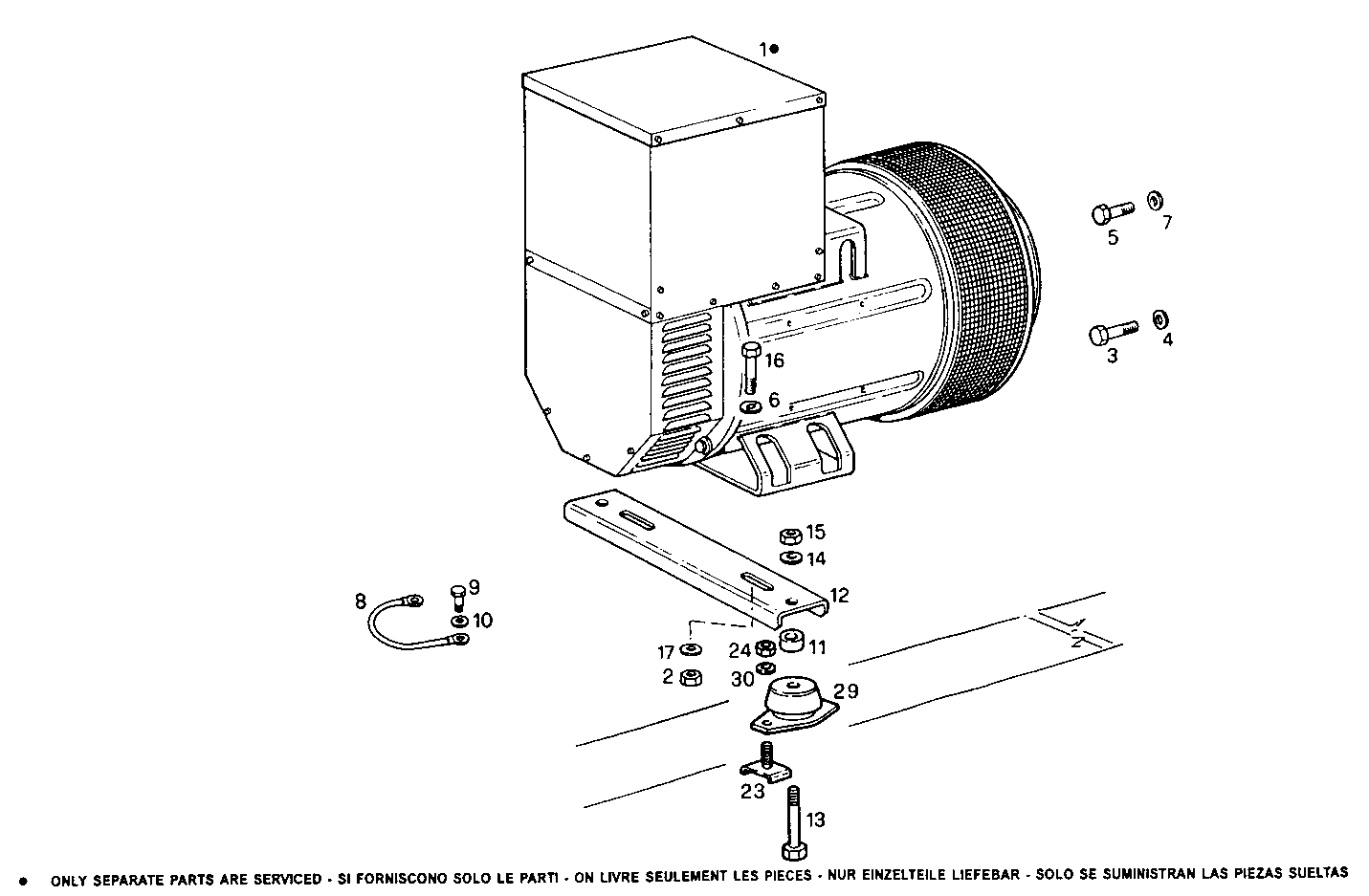

A37410057 SINGLE BEARING ELECTRIC MACHINE - MECC-ALTE

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8028051 ELECTRIC MACHINE ECO 342 L/4
2 17038921 NUT M16X2
3 16608124 HEXAGON BOLT M10X1,5X50 MM
4 17090174 SPRING WASHER Ø10X20 MM
5 15004021 HEXAGON BOLT M10X1,25X25 MM
6 4929369 WASHER
7 17494934 WASHER Ø10X18,1X2,2 MM
8 8110852 EARTH WIRE
9 16043124 SCREW M8X14 MM
10 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
11 8005402 SPACING BAR 35MM
12 8015167 SUPPORT
13 16615424 HEXAGON BOLT
14 17092374 SPRING WASHER Ø16X34X3,6 MM
16 16614824 SCREW M16X50
23 8016024 SCREW
24 17038121 HEXAGON NUT M10
28 16614624 HEXAGON BOLT M16X40 MM
29 4911960 RUBBER PAD
30 17090974 SPRING WASHER Ø12X24 MM
