GE8061SRi27.05N970

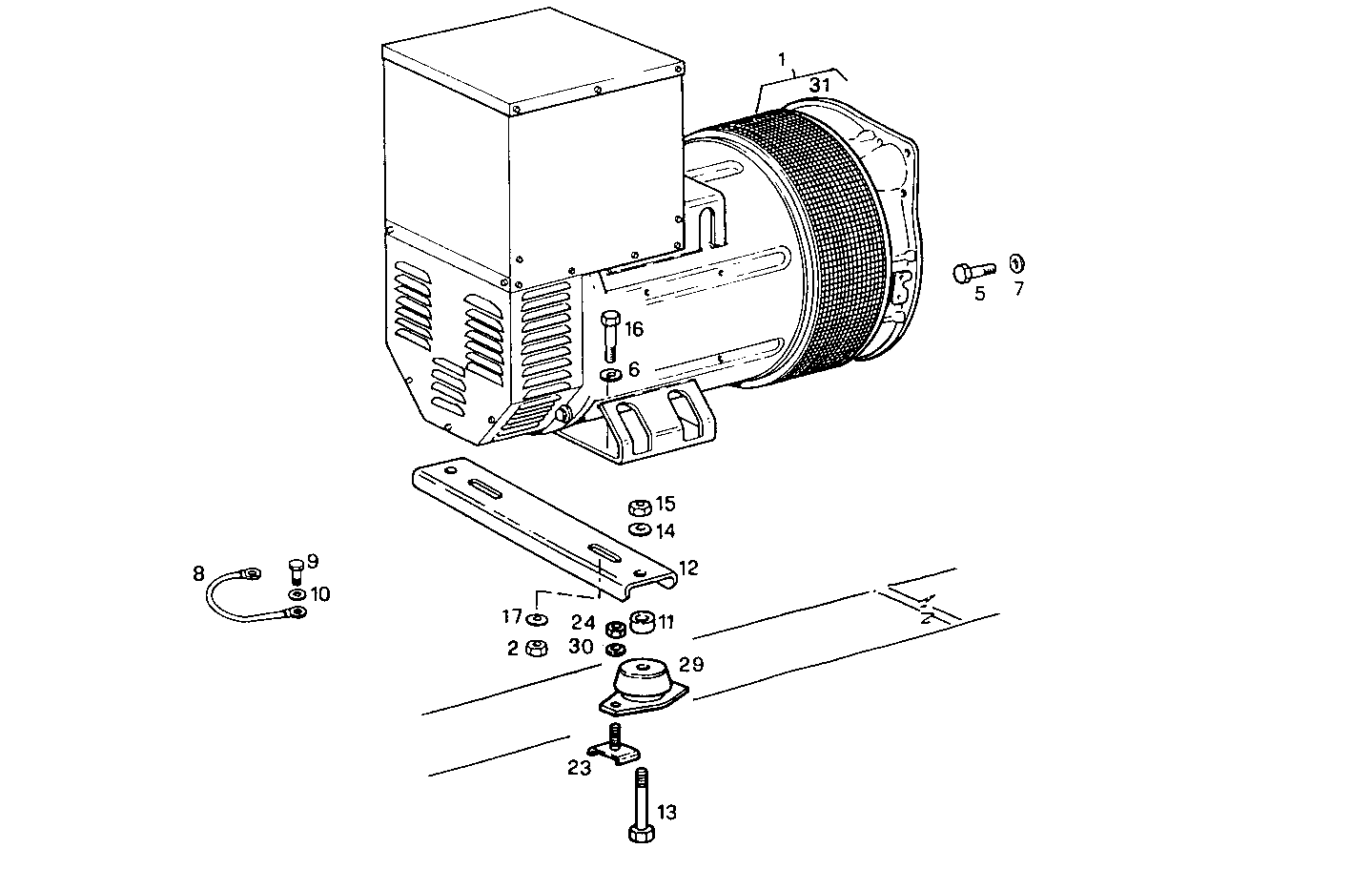

A37410075 ELECTRIC MACHINE - MECC-ALTE

Iveco/FPT ELECTRIC MACHINE

Item Part number Description
1 8028054 ELECTRIC MACHINE ECO 342 L/4 50-60 HZ
2 17037921 HEXAGON NUT M8X1,25
5 15970524 HEXAGON BOLT M10X1,25X20
6 17091974 SPRING WASHER Ø14X32 MM SP=3,4 MM
7 17494934 WASHER Ø10X18,1X2,2 MM
8 8110852 EARTH WIRE
9 16605424 SCREW M8X16 MM (8.8)
10 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
11 8031829 SPACING BAR
12 503110638 SPACING BAR
13 16615024 SCREW M16
14 16614724 SCREW M16X45
15 17038931 HEXAGON NUT M16X2
17 17094104 WASHER Ø3X7 MM
23 16605524 HEXAGON BOLT M8X20 MM
24 17038131 HEXAGON NUT M10
29 4911960 RUBBER PAD
30 17092174 SPRING WASHER Ø16X32X3,4
31 8026983 COUPLING BELL
