GE8061SRi27.05R950

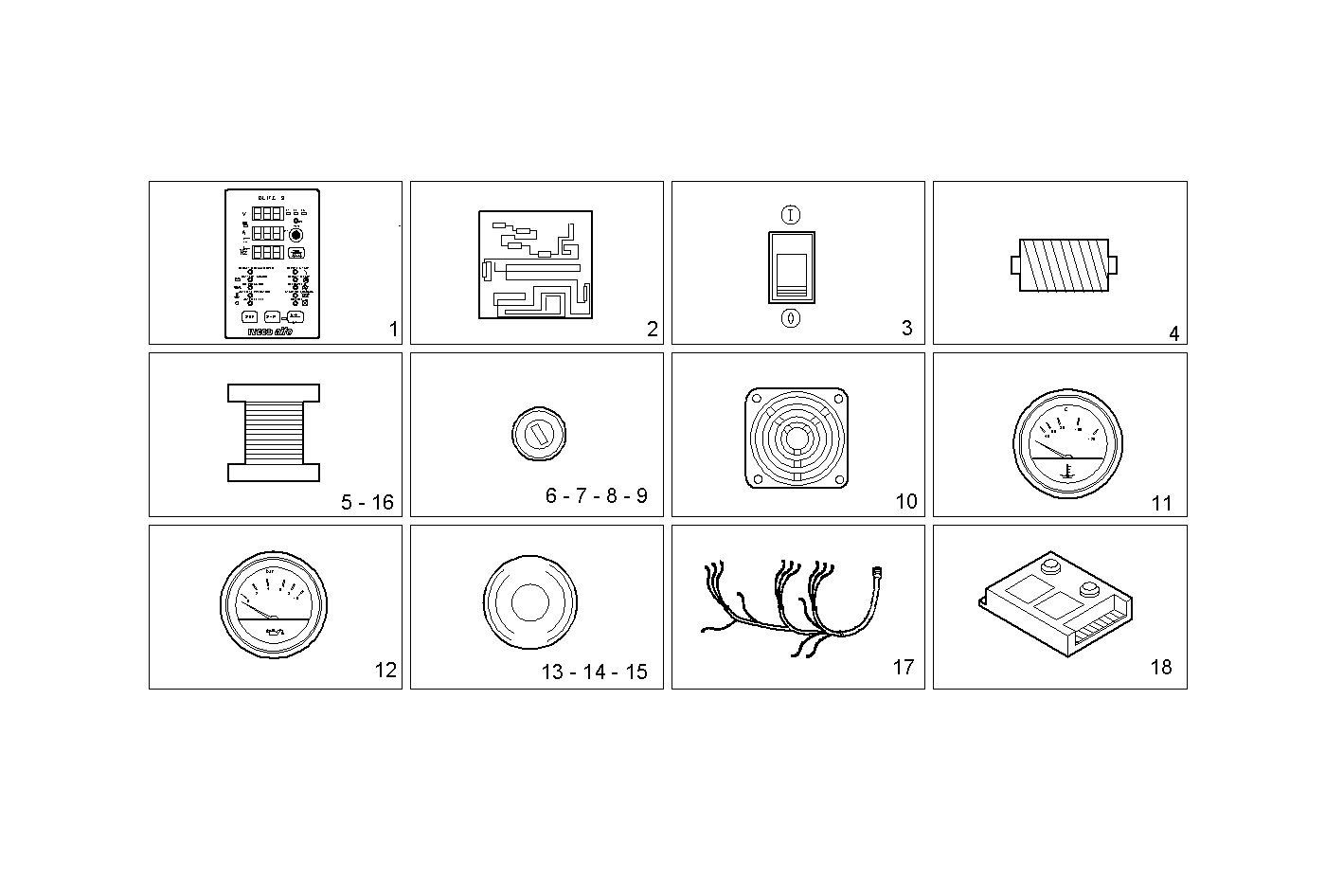

Q0000093 DIGITAL INSTRUMENT PANEL 12V - (components)
| Item |
Part number |
Description |
|
1 |
8094618 |
ELECTRONIC CARD |
|
2 |
8093794 |
ELECTRONIC CARD |
|
3 |
8094603 |
THERMOSWITCH |
|
4 |
8094661 |
MINIMUN TENSION COIL |
|
5 |
8094668 |
AMMETER TRANSFORMATOR |
|
6 |
8094598 |
FUSE BOX |
|
7 |
8094599 |
FUSE 2A |
|
8 |
8094621 |
FUSE 15A |
|
9 |
8094620 |
FUSE 10 A |
|
10 |
8094601 |
ACOUSTIC HORN |
|
11 |
8094623 |
THERMOMETER |
|
12 |
8094622 |
PRESSURE GAUGE |
|
13 |
8094664 |
PUSH BUTTON |
|
14 |
8094663 |
SPRING CONTACT |
|
15 |
8094662 |
SPRING CONTACT |
|
16 |
8094605 |
SPRING CONTACT |
|
17 |
8094690 |
ENGINE HARNESS |
|
18 |
8018675 |
SPEED CONTROL |
