GE8210G75.10A70M

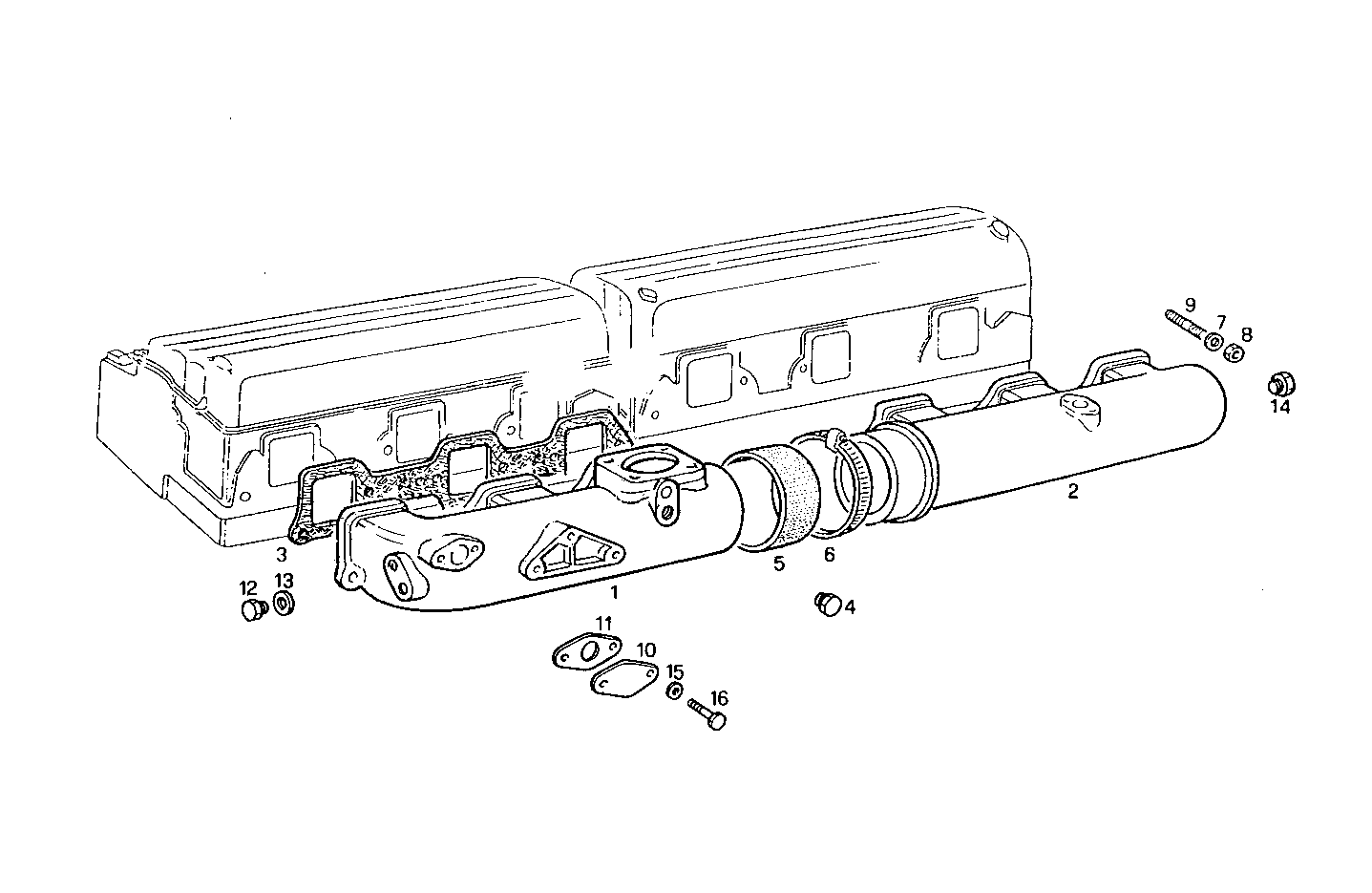

0710.118 INTAKE MANIFOLD
| Item | Part number | Description |
|---|---|---|
| 1 | 4725840 | INTAKE ELBOW |
| 2 | 4744277 | INTAKE ELBOW REAR |
| 3 | 99444980 | INTAKE ELBOW GASK. |
| 4 | 16997611 | THREADED PLUG M20X1,5 |
| 5 | 8005086 | RUBBER SLEEVE |
| 6 | 17765591 | CLIP Ø110/130 MM |
| 7 | 17090174 | SPRING WASHER Ø10X20 MM |
| 8 | 17038221 | HEXAGON NUT M10 |
| 9 | 13449921 | STUD M10X15X40 |
| 10 | 4627259 | COVER |
| 11 | 4863538 | FLAT ENGINE GASKET |
| 12 | 16992511 | THREADED PLUG M18X1,5 |
| 13 | 4858610 | WASHER Ø18X24 MM SP=1,5 MM |
| 14 | 16997211 | LOCK PLUG M12X1,5 |
| 15 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 16 | 16605524 | HEXAGON BOLT M8X20 MM |
