GE8210G75.10A70M

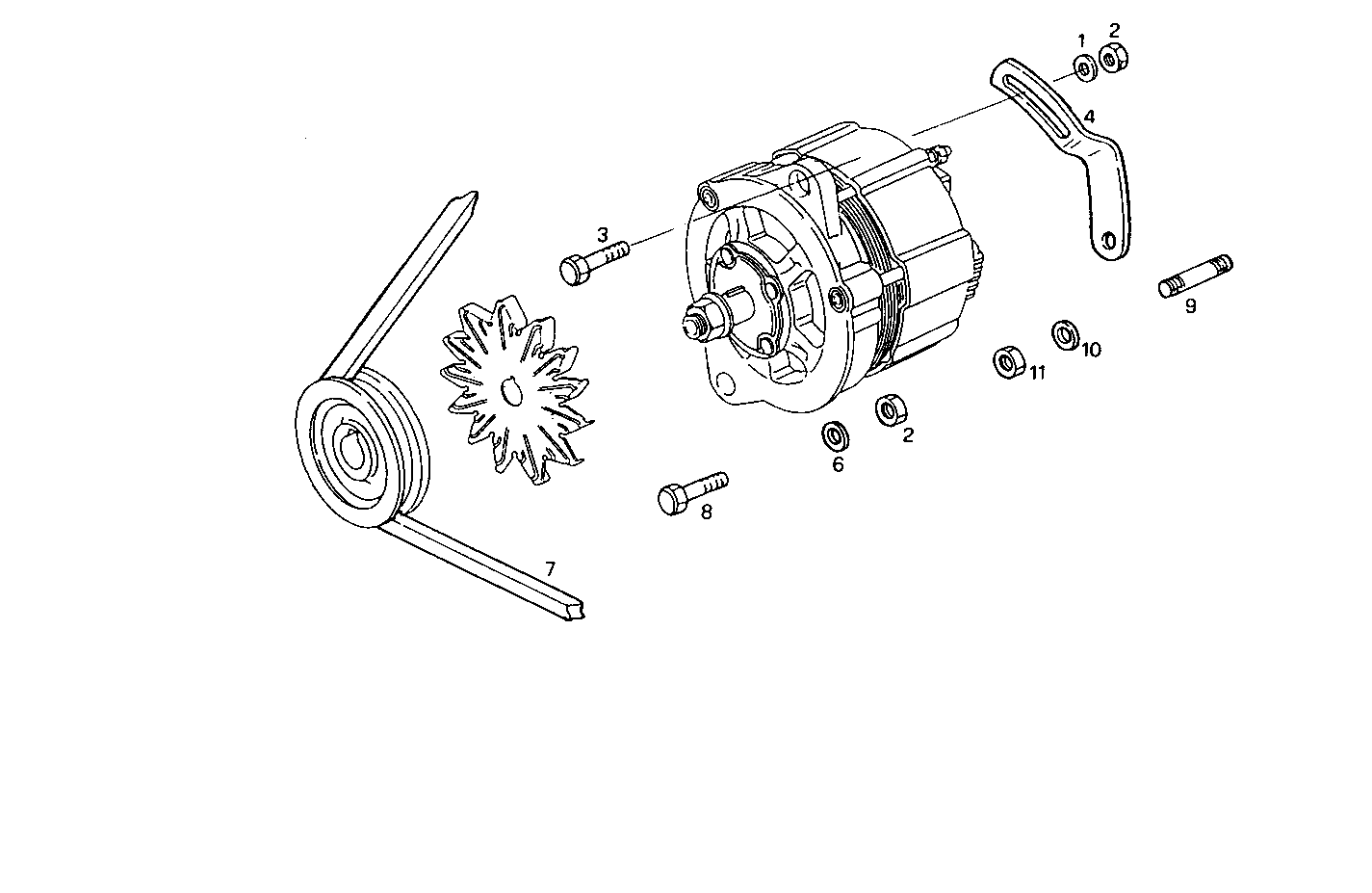

4010.087 MOUNT
| Item | Part number | Description |
|---|---|---|
| 1 | 17095104 | WASHER Ø10X21X2 MM |
| 2 | 17157221 | NUT M10X1,25 |
| 3 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
| 4 | 8026654 | BELT TENSIONER |
| 6 | 12626024 | SPRING WASHER Ø10X21 MM SP=2 MM |
| 7 | 4830930 | V-BELT |
| 8 | 15972221 | SCREW M10X1,25X120 |
| 9 | 13530121 | STUD M10X1,25X65 |
| 10 | 17091074 | WASHER Ø12X24X2,8 MM |
| 11 | 17038621 | NUT M12 |
