GE8210M22.10A64S

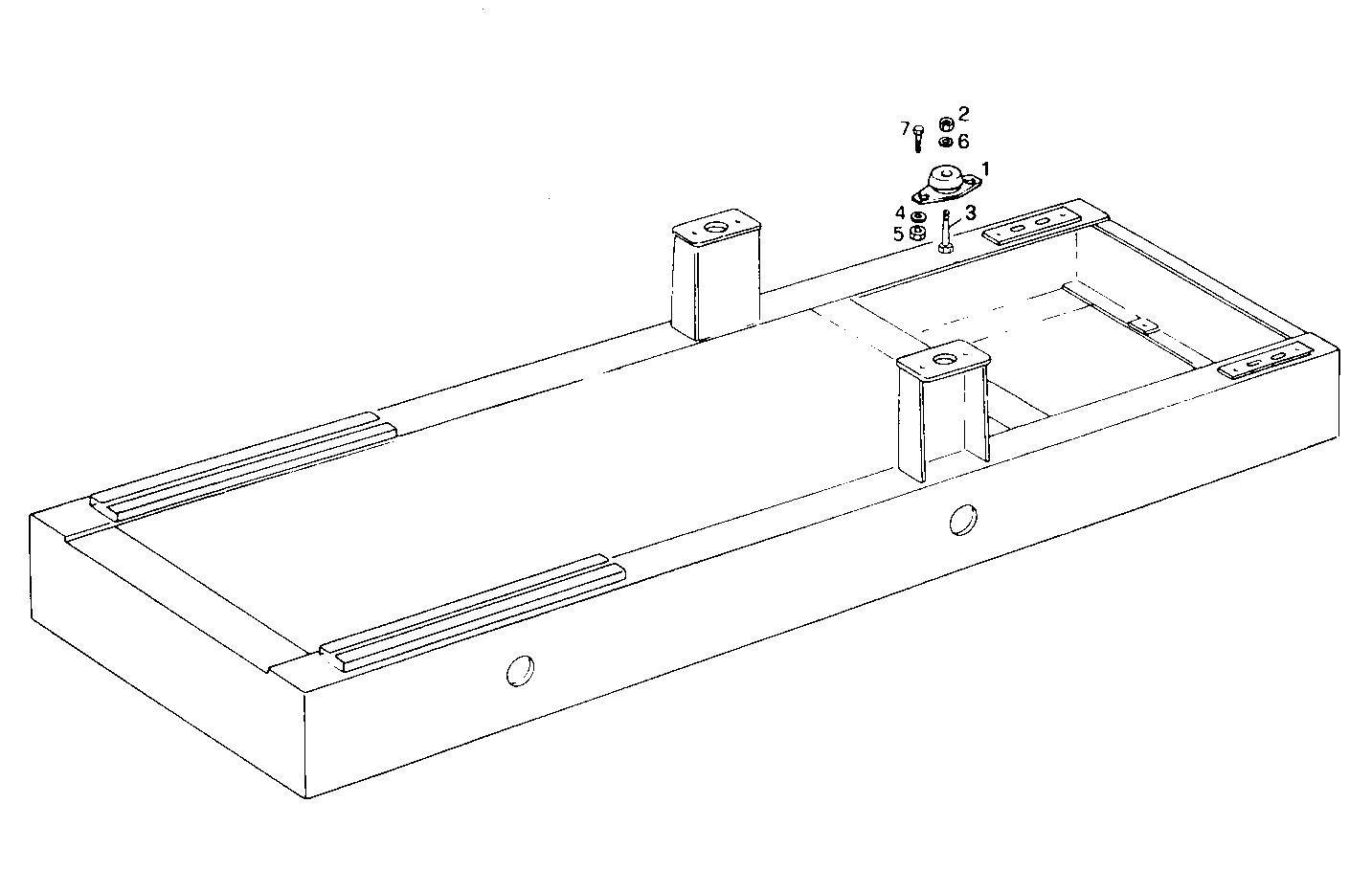

A36070015 SUBBASE FOR GENERATOR UNIT
| Item | Part number | Description |
|---|---|---|
| 1 | 4927807 | RUBBER PAD |
| 2 | 17039021 | HEXAGON NUT M16 |
| 3 | 11390521 | HEXAGON BOLT M16X1,5X40 MM |
| 4 | 17091974 | SPRING WASHER Ø14X32 MM SP=3,4 MM |
| 5 | 17038821 | HEXAGON NUT M14 |
| 6 | 17092374 | SPRING WASHER Ø16X34X3,6 MM |
| 7 | 15977921 | HEXAGON BOLT |
| 8 | 8005884 | SUBBSAE-SUPPORT FRAME |
| 9 | 8015486 | SPACING BAR |
