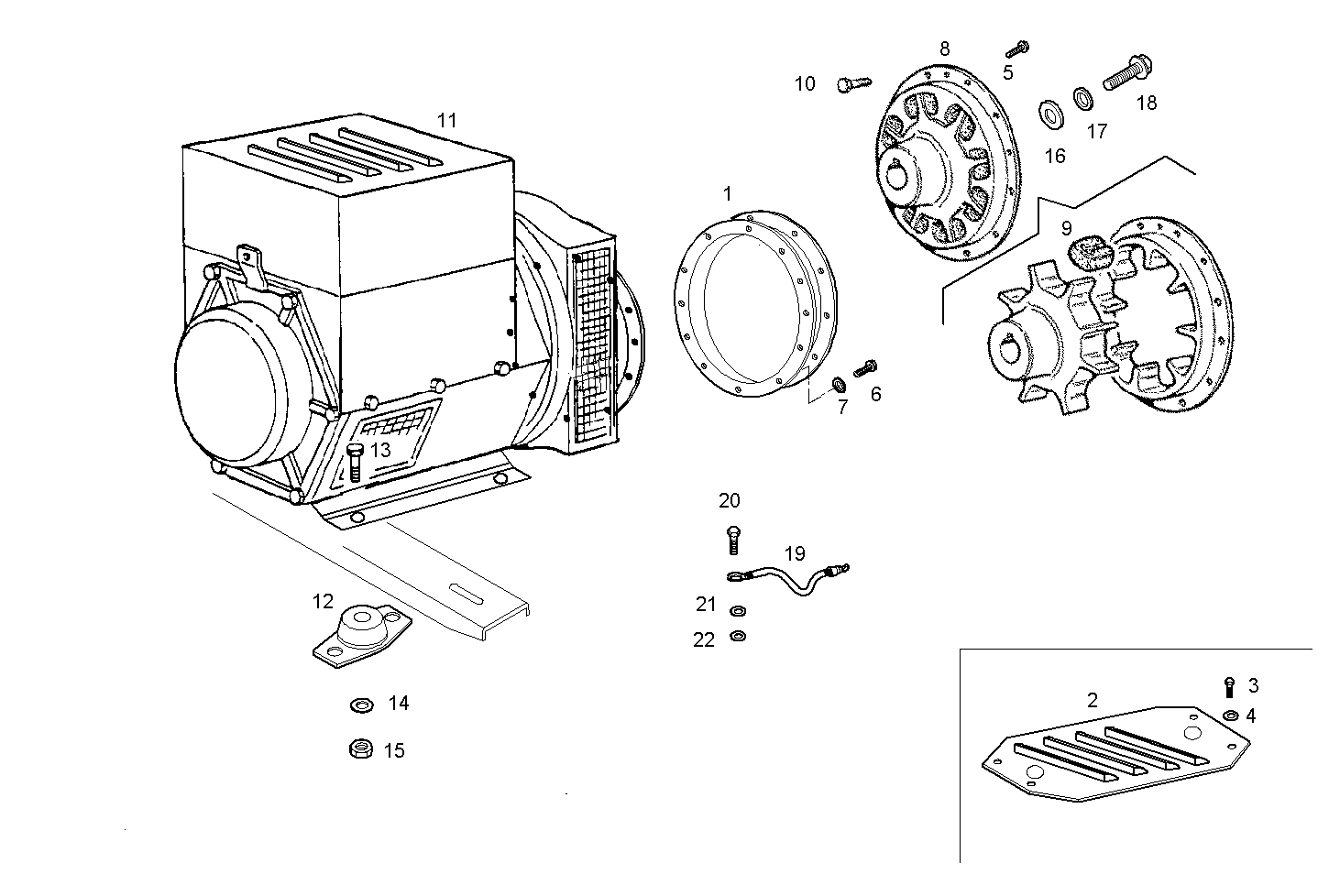

| Item |
Part number |
Description |
|
1 |
8104522 |
COUPLING BELL |
|
2 |
4934736 |
COVER |
|
3 |
16043121 |
HEXAGON BOLT M8X14 MM |
|
4 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
5 |
15970921 |
HEXAGON BOLT M10X1,25X35 MM |
|
6 |
16607824 |
HEXAGON BOLT M10X35 MM (8.8) |
|
7 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
8 |
8005236 |
FLEXIBLE COUPLING ASSY |
|
9 |
4930911 |
RUBBER PAD |
|
10 |
14274621 |
LOCKING SCREW M12X1,25X35 |
|
11 |
8005833 |
ELECTRIC MACHINE Stamford |
|
12 |
4955094 |
RUBBER PAD |
|
13 |
16620024 |
SCREW M24X70 |
|
14 |
11200679 |
SPRING WASHER Ø24,5 MM |
|
15 |
17037921 |
HEXAGON NUT M8X1,25 |
|
16 |
8005257 |
WASHER |
|
17 |
16617224 |
SCREW M20X50 |
|
18 |
17092774 |
WASHER Ø20X38X4,6 MM |
|
19 |
8104707 |
WIRE/CABLE |
|
20 |
15970521 |
HEXAGON BOLT M10X20 MM |
|
21 |
17090474 |
SPRING WASHER Ø10X27 MM SP=2,5 |
|
22 |
16665604 |
WASHER Ø10X20 MM |
