GE8210SRG75.10A70M

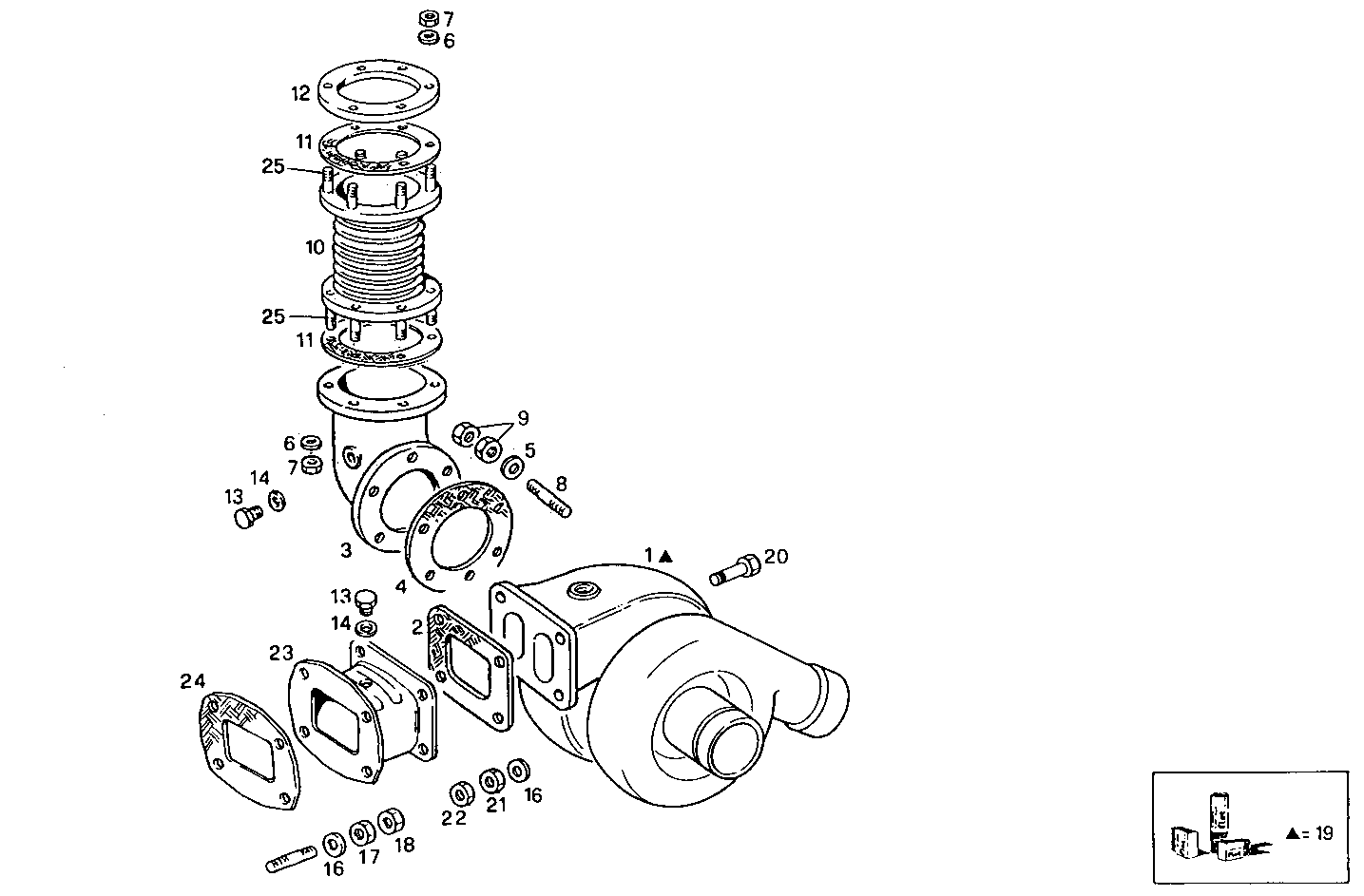

2400.128/01 TURBOCHARGER

Iveco/FPT TURBOCHARGER

Item Part number Description
1 8110129 WATER COOL.TURBOCHARGER ASSY HOLSET
2 8036588 GASKET
3 8012591 EXHAUST ELBOW
4 8111833 GASKET
5 17094914 WASHER 8x16
6 17090174 SPRING WASHER Ø10X20 MM
7 17038221 HEXAGON NUT M10
8 16729424 STUD M8X1,25X25
9 16979431 NUT M8
10 8101671 EXHAUST BELLOWS
11 8009600 GASKET
12 8103591 FLANGE
13 16992211 THREADED PLUG M12X1,5
14 4858607 WASHER Ø12X17 MM SP=1,5 MM
16 17095004 WASHER Ø10X18X2 MM
17 4927248 NUT M10X1,25
18 8100961 NUT M10X1,25
19 8090770 KIT-TURBOCHARGER
20 16607924 HEXAGON BOLT M10X1,5X40 MM
21 17038121 HEXAGON NUT M10
22 16979631 HEXAGON NUT M10
23 8021878 EXHAUST ELBOW
24 4512366 GASKET
25 13449524 STUD M10X1,25X15X25
