GE8210SRG75.10A70M

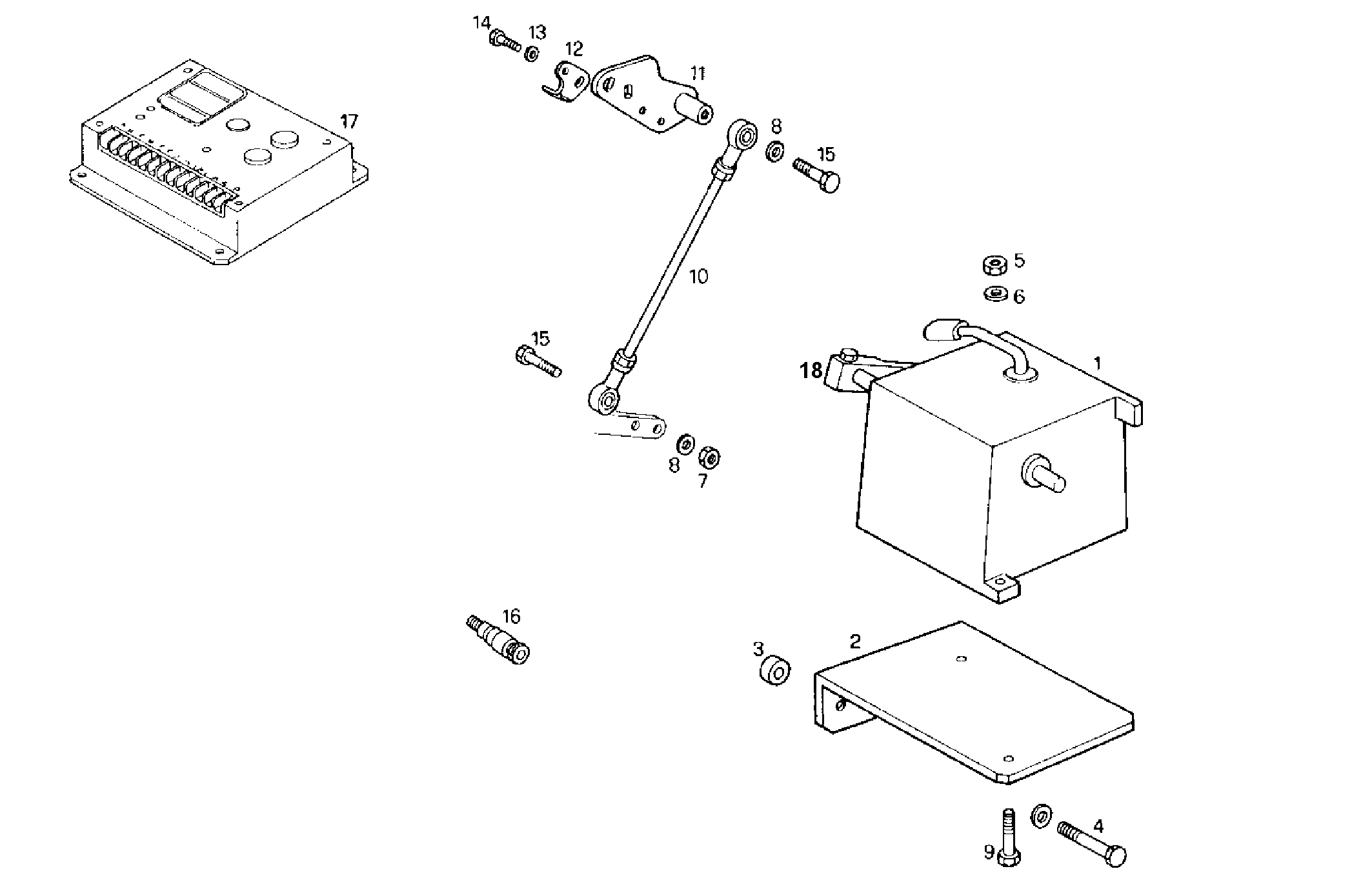

2600.009 ELECTRONIC SPEED GOVERNOR

Iveco/FPT ELECTRONIC SPEED GOVERNOR

Item Part number Description
1 8021744 ENGINE ACTUATOR ASSY
2 8026837 SUPPORT
3 4753027 SPACER Ø12 MM
4 11390521 HEXAGON BOLT M16X1,5X40 MM
5 17037931 HEXAGON NUT M8X1,25
6 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
7 17037821 HEXAGON NUT M6X1
8 17088474 WASHER Ø6X12 MM
9 16605734 HEXAGON BOLT M8X30 MM
10 8026839 TIE ROD
11 8026832 LEVER
12 8025621 RETAINER
13 17800174 WASHER
14 8025675 SCREW
15 16603724 HEXAGON BOLT M6X20 MM (8.8)
16 8018673 PICK-UP
17 8017472 SPEED CONTROL GAC-HUGLI 12V
18 8031536 LEVER
