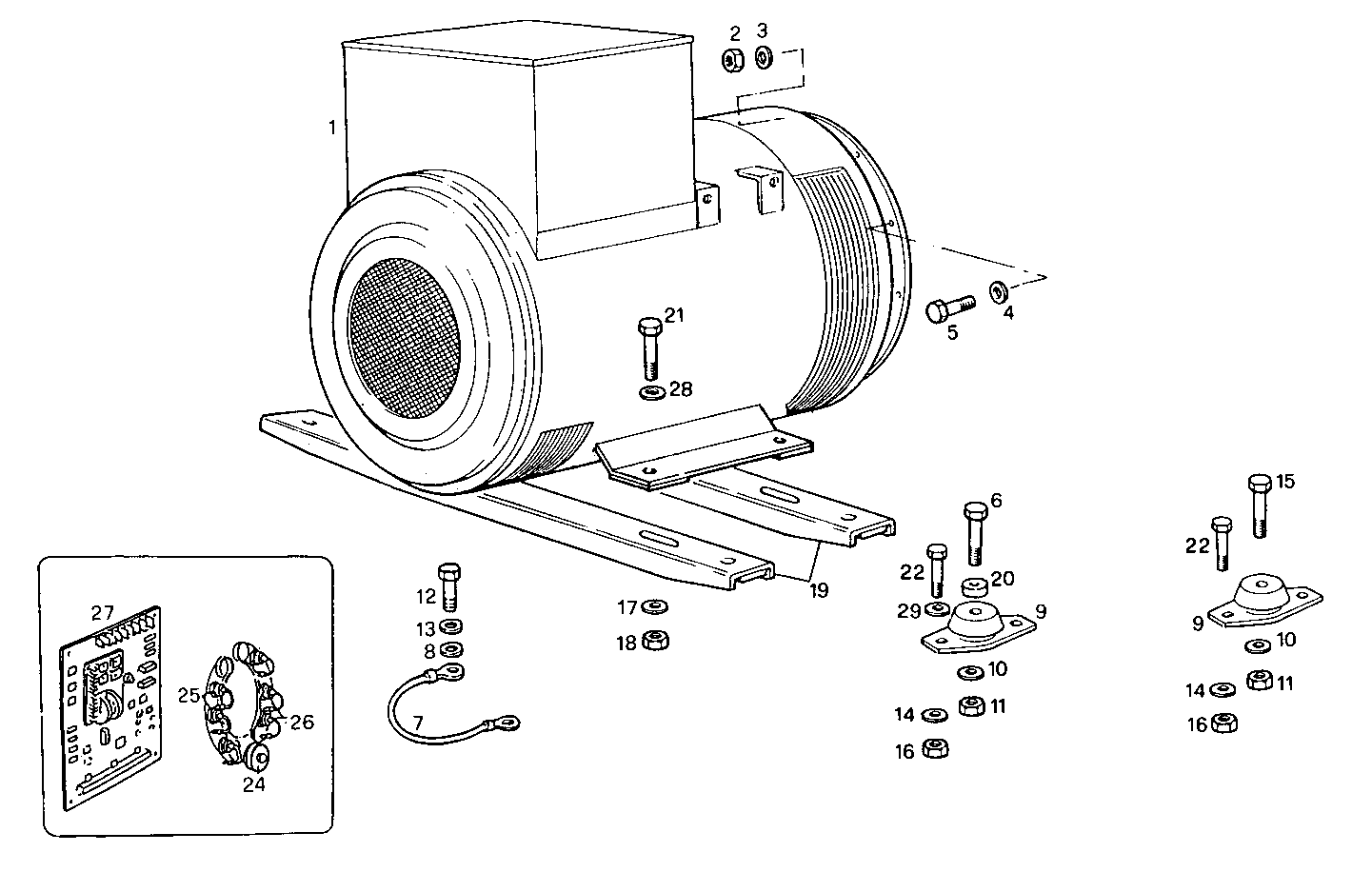

| Item |
Part number |
Description |
|
1 |
8016932 |
ELECTRIC MACHINE M7B 250 MC/4 50HZ |
|
2 |
17038221 |
HEXAGON NUT M10 |
|
3 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
4 |
17091174 |
SPRING WASHER Ø12X24 MM |
|
5 |
15540431 |
HEXAGON BOLT M12X1,25X30 MM |
|
6 |
16620824 |
SCREW M24X150 |
|
7 |
8110852 |
EARTH WIRE |
|
8 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
9 |
4955094 |
RUBBER PAD |
|
10 |
17093174 |
WASHER Ø24X46X5,4 MM |
|
11 |
17039721 |
HEXAGON NUT M24 |
|
12 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
13 |
16665504 |
WASHER Ø8 MM |
|
14 |
17092374 |
SPRING WASHER Ø16X34X3,6 MM |
|
15 |
16620124 |
SCREW M24X3X80 |
|
16 |
17038921 |
NUT M16X2 |
|
17 |
17092774 |
WASHER Ø20X38X4,6 MM |
|
18 |
17039321 |
NUT M20X2,5 |
|
19 |
8025438 |
SUPPORT |
|
20 |
8016947 |
SPACING BAR |
|
21 |
16617424 |
SCREW M20X60 |
|
22 |
16614624 |
HEXAGON BOLT M16X40 MM |
|
24 |
8106491 |
SUPPRESSOR |
|
25 |
8106486 |
EL.MACHINE DIODE MARELLI - REVERSE |
|
26 |
8106485 |
EL.MACHINE DIODE MARELLI - FORWARD |
|
27 |
8091776 |
EL.MACHINE VOLTAGE REGUL. MECC-ALTE |
|
28 |
4279447 |
WASHER |
|
29 |
4774417 |
PIPE |
