GE8210SRi25.00A955

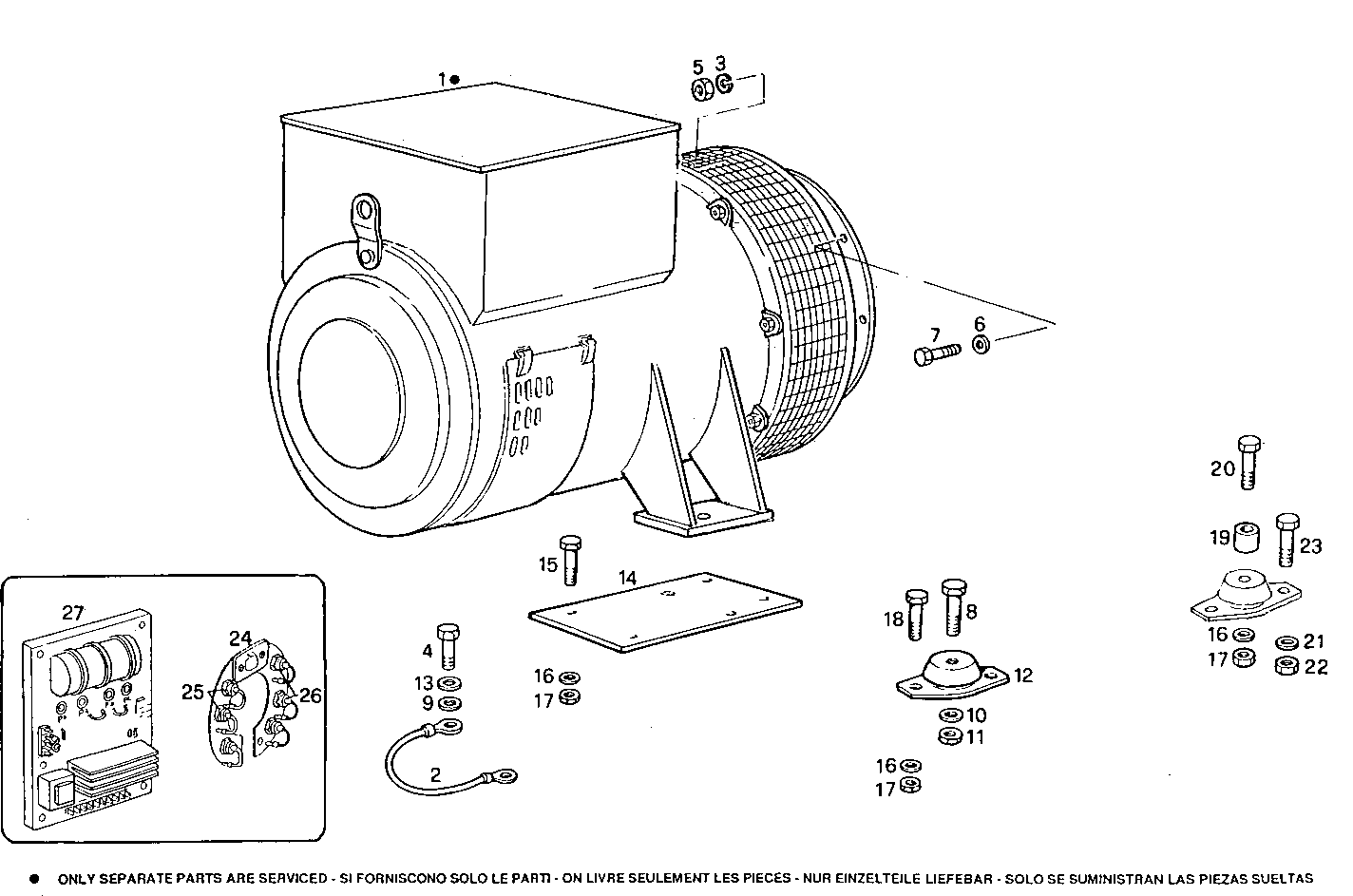

A37110038 SINGLE BEARING ELECTRIC MACHINE - LEROY

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8015644 ELECTRIC MACHINE LSA 461 L8 50-60HZ
2 8104707 WIRE/CABLE
3 17090174 SPRING WASHER Ø10X20 MM
4 15970521 HEXAGON BOLT M10X20 MM
5 17038221 HEXAGON NUT M10
6 17091171 WASHER Ø12X24X3,2 MM
7 15540431 HEXAGON BOLT M12X1,25X30 MM
8 16617724 HEXAGON BOLT M20X80 MM
9 16665604 WASHER Ø10X20 MM
10 17092774 WASHER Ø20X38X4,6 MM
11 17039321 NUT M20X2,5
12 4955094 RUBBER PAD
13 17090474 SPRING WASHER Ø10X27 MM SP=2,5
14 8016343 PLATE
15 16615024 SCREW M16
16 17092374 SPRING WASHER Ø16X34X3,6 MM
17 17038921 NUT M16X2
18 16614824 SCREW M16X50
19 8109336 SPACING BAR
20 16613324 HEXAGON BOLT M14X2X100 MM
21 17091674 WASHER Ø14X27X3,0 MM
22 17038721 NUT M14X2 [from ...]
23 16614624 HEXAGON BOLT M16X40 MM
24 8092295 SUPPRESSOR
25 8092294 EL.MACHINE DIODE -
26 8092293 EL.MACHINE DIODE +
27 8092292 EL.MACHINE VOLTAGE REGUL.
