GE8210SRi25.00A955

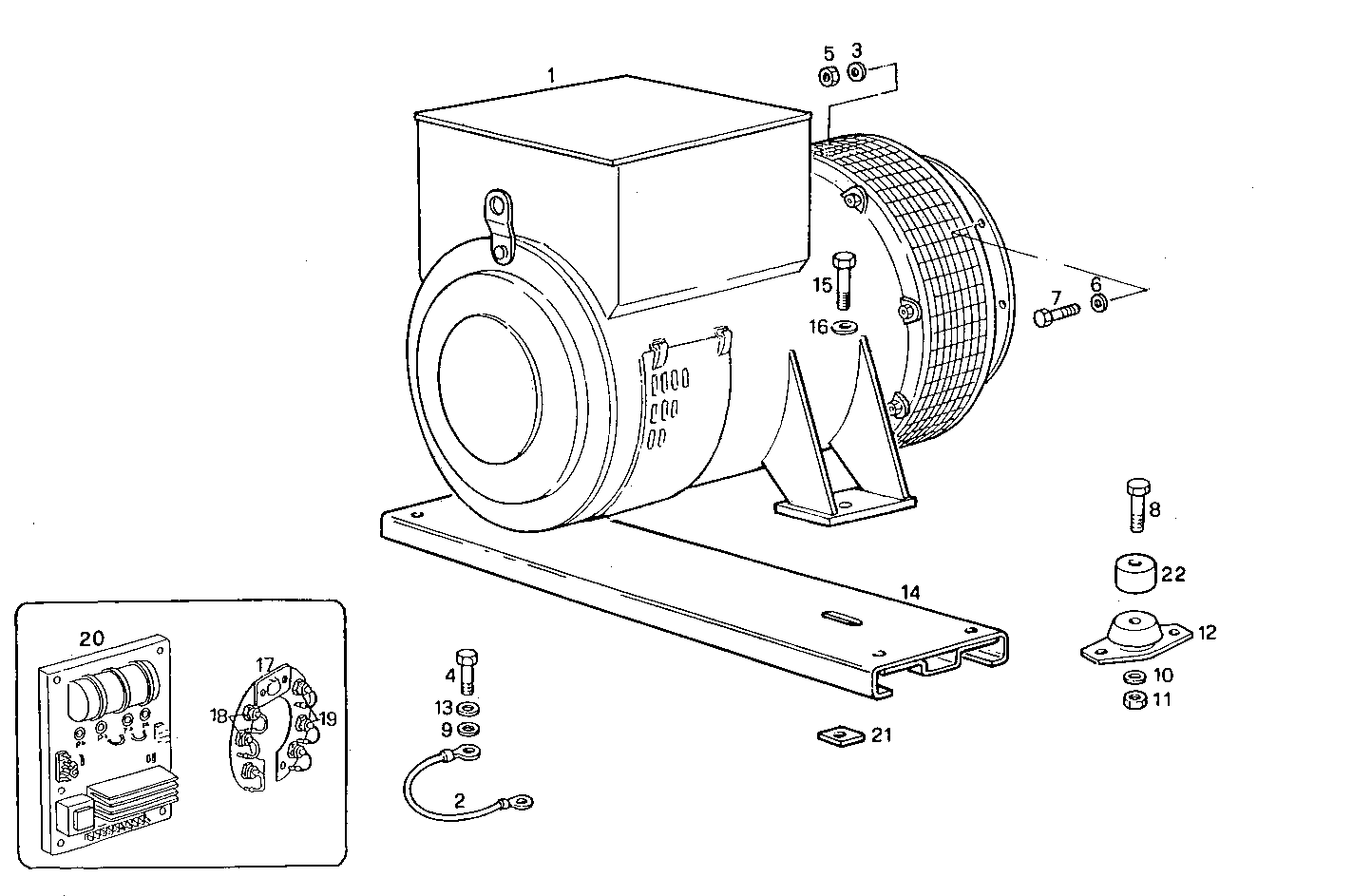

A37110060 SINGLE BEARING ELECTRIC MACHINE - LEROY [D 10-1994] [from10-1994]

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8015644 ELECTRIC MACHINE LSA 461 L8 50-60HZ
2 8104707 WIRE/CABLE
3 17090174 SPRING WASHER Ø10X20 MM
4 15970521 HEXAGON BOLT M10X20 MM
5 17038221 HEXAGON NUT M10
6 17091174 SPRING WASHER Ø12X24 MM
7 15540431 HEXAGON BOLT M12X1,25X30 MM
8 16620524 SCREW M24X120
9 16665604 WASHER Ø10X20 MM
10 17093174 WASHER Ø24X46X5,4 MM
11 17039721 HEXAGON NUT M24
12 4955094 RUBBER PAD
13 17090474 SPRING WASHER Ø10X27 MM SP=2,5
14 8019651 SUPPORT
15 16617424 SCREW M20X60
16 17092774 WASHER Ø20X38X4,6 MM
17 8092295 SUPPRESSOR
18 8092294 EL.MACHINE DIODE -
19 8092293 EL.MACHINE DIODE +
20 8092292 EL.MACHINE VOLTAGE REGUL.
21 8019231 PLATE
22 8108891 SPACING BAR
