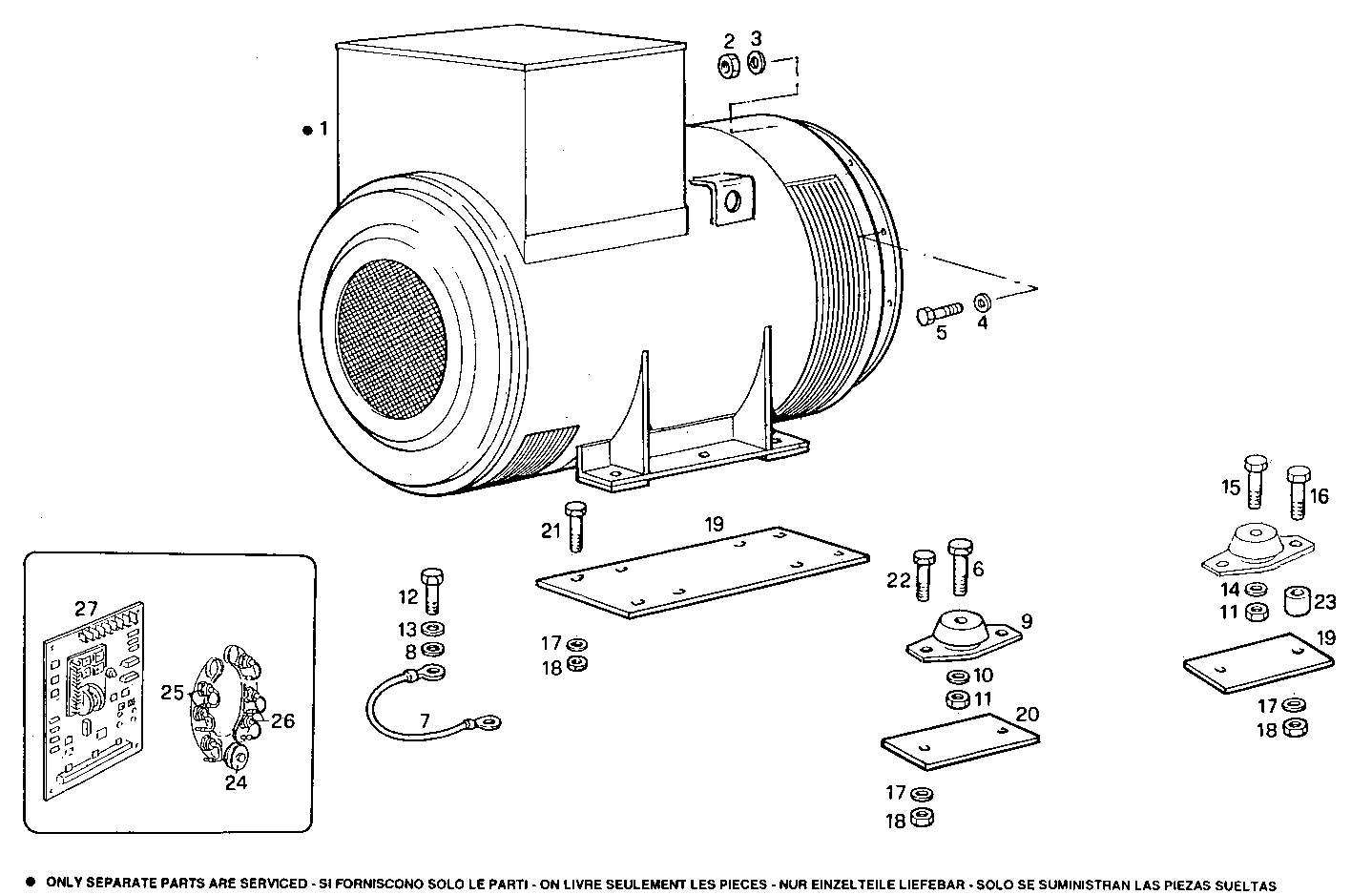

| Item |
Part number |
Description |
|
1 |
8009786 |
ELECTRIC MACHINE M7B 315 SA/4 50-60HZ |
|
2 |
12164711 |
HEXAGON NUT M10X1,25 |
|
3 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
4 |
17091174 |
SPRING WASHER Ø12X24 MM |
|
5 |
15540431 |
HEXAGON BOLT M12X1,25X30 MM |
|
6 |
15997521 |
SCREW |
|
7 |
8104707 |
WIRE/CABLE |
|
8 |
17090474 |
SPRING WASHER Ø10X27 MM SP=2,5 |
|
9 |
4955094 |
RUBBER PAD |
|
10 |
17093174 |
WASHER Ø24X46X5,4 MM |
|
11 |
12164011 |
HEXAGON NUT M14X1,5 [up to…] |
|
12 |
15970521 |
HEXAGON BOLT M10X20 MM |
|
13 |
10730501 |
WASHER Ø10,2 MM |
|
14 |
17091974 |
SPRING WASHER Ø14X32 MM SP=3,4 MM |
|
15 |
15977621 |
SCREW M14X1,5X70 |
|
16 |
15981621 |
HEXAGON BOLT M16X1,5X100 MM |
|
17 |
17092374 |
SPRING WASHER Ø16X34X3,6 MM |
|
18 |
12164111 |
HEXAGON NUT M16X1,5 |
|
19 |
4928027 |
SUPPORT |
|
20 |
8010131 |
SPACING BAR |
|
21 |
15835221 |
HEXAGON BOLT M16X1,5X70 MM |
|
22 |
11376221 |
HEXAGON BOLT M16X1,5X35 MM |
|
23 |
8109633 |
SPACING BAR |
|
24 |
8106490 |
SUPPRESSOR MARELLI |
|
25 |
8106488 |
EL.MACHINE DIODE MARELLI - REVERSE |
|
26 |
8106487 |
EL.MACHINE DIODE MARELLI - FORWARD |
|
27 |
8091766 |
EL.MACHINE VOLTAGE REGUL. MARELLI |
