GE8210SRi25.00A955

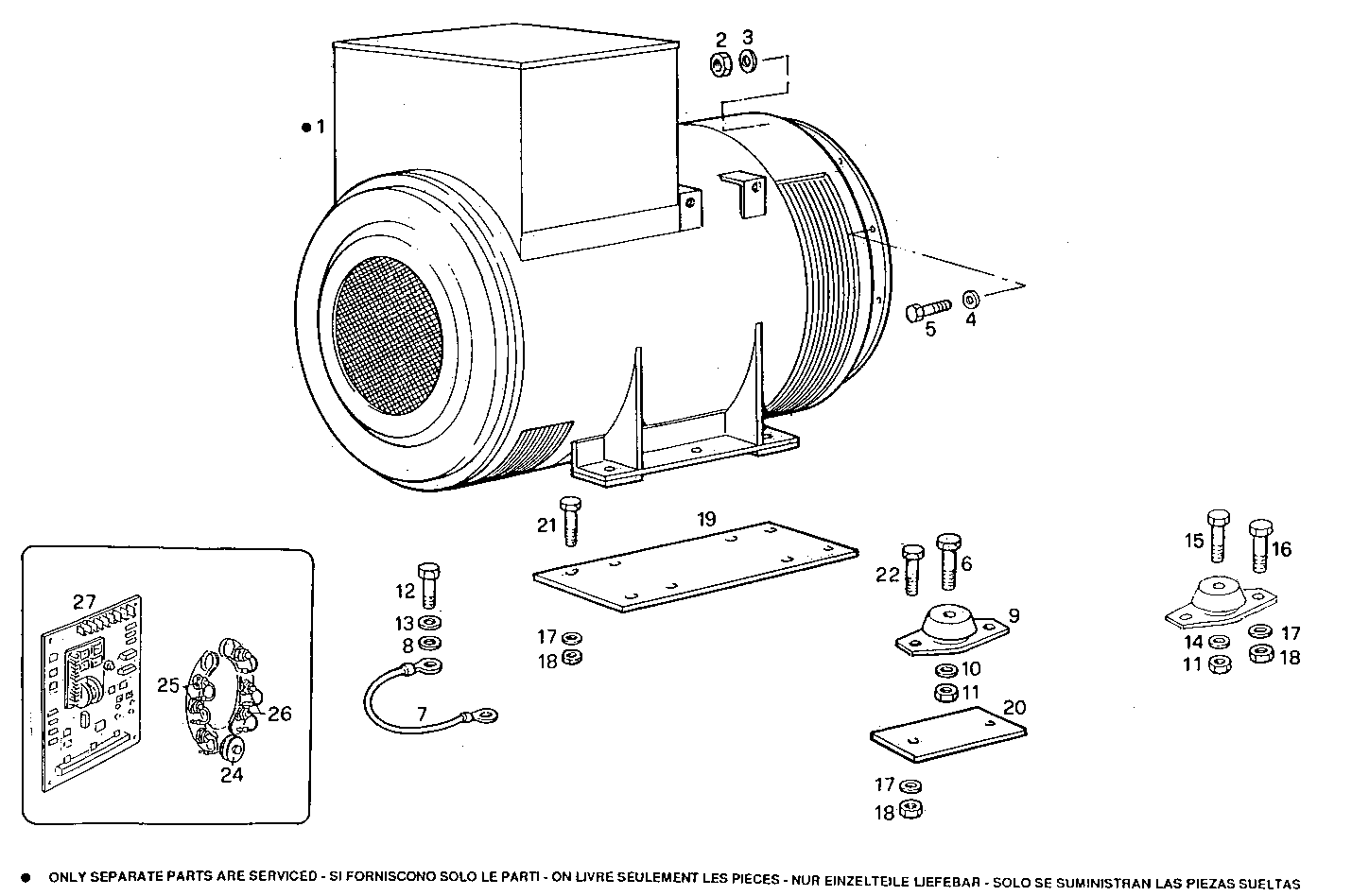

A37210040 SINGLE BEARING ELECTRIC MACHINE - MARELLI

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8010019 ELECTRIC MACHINE M7B 315 SA/4 50-60HZ
2 12164711 HEXAGON NUT M10X1,25
3 17090174 SPRING WASHER Ø10X20 MM
4 17091174 SPRING WASHER Ø12X24 MM
5 15540431 HEXAGON BOLT M12X1,25X30 MM
6 15862121 HEXAGON BOLT
7 8104707 WIRE/CABLE
8 17090474 SPRING WASHER Ø10X27 MM SP=2,5
9 4927807 RUBBER PAD
10 4928185 WASHER
11 12164011 HEXAGON NUT M14X1,5 [up to…]
12 15970521 HEXAGON BOLT M10X20 MM
13 10730501 WASHER Ø10,2 MM
14 17091974 SPRING WASHER Ø14X32 MM SP=3,4 MM
15 15977621 SCREW M14X1,5X70
16 11390521 HEXAGON BOLT M16X1,5X40 MM
17 17092374 SPRING WASHER Ø16X34X3,6 MM
18 12164111 HEXAGON NUT M16X1,5
19 8109629 SUPPORT
20 4933182 SPACING BAR
21 15835221 HEXAGON BOLT M16X1,5X70 MM
22 11376221 HEXAGON BOLT M16X1,5X35 MM
24 8106491 SUPPRESSOR
25 8106486 EL.MACHINE DIODE MARELLI - REVERSE
26 8106485 EL.MACHINE DIODE MARELLI - FORWARD
27 8091776 EL.MACHINE VOLTAGE REGUL. MECC-ALTE
