GE8210SRi25.00A955

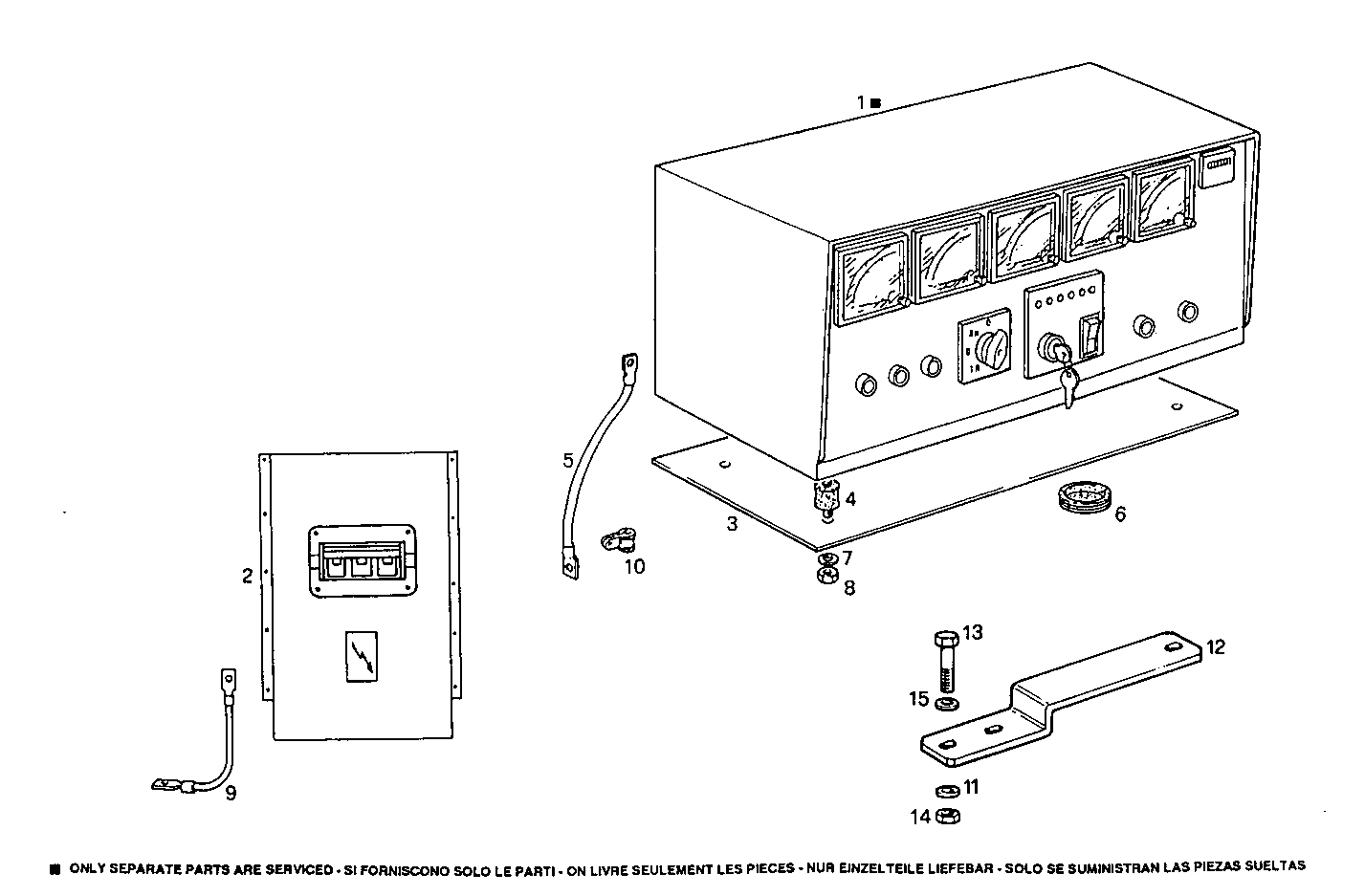

A60230038 MANUAL CONTROL BOARD FOR ELECT. MACHINE - MARELLI
| Item | Part number | Description |
|---|---|---|
| 1 | 8018991 | CONTROL BOARD ASSY 220V/380V 50-60HZ |
| 2 | 8013728 | SWITCH 800A |
| 3 | 8019260 | COVER |
| 4 | 8104155 | DOWEL |
| 5 | 8006993 | EARTH WIRE |
| 6 | 8113214 | INSULATING RING |
| 7 | 17088474 | WASHER �6X12 MM |
| 8 | 17037821 | HEXAGON NUT M6X1 |
| 9 | 8110852 | EARTH WIRE |
| 10 | 17314890 | CLIP |
| 11 | 17095204 | WASHER �12X20 MM |
| 12 | 8021249 | RETAINER |
| 13 | 16610124 | HEXAGON BOLT M12X40 MM |
| 14 | 17038421 | HEXAGON NUT M12 (8) |
| 15 | 17091074 | WASHER �12X24X2,8 MM |
