GE8210SRi26.01A50S

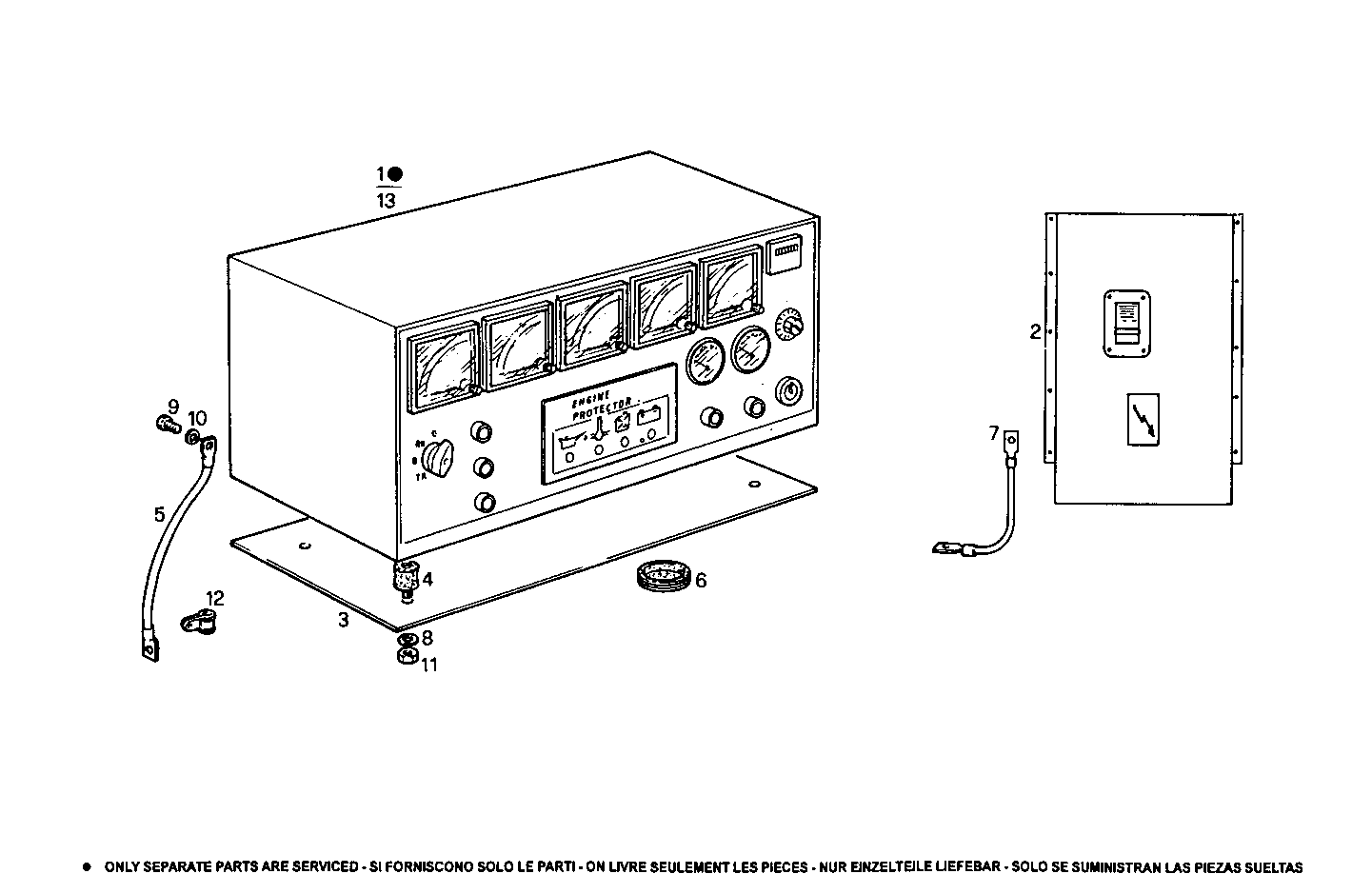

A60210006/01 MANUAL CONTROL BOARD FOR ELECT. MACHINE - STAMFORD

Iveco/FPT MANUAL CONTROL BOARD FOR ELECT. MACHINE

Item Part number Description
1 8110778 CONTROL BOARD ASSY 380V 50-60HZ [up to ...]
2 8110789 DIFFERENTIAL SWITCH 500A
3 8111018 COVER
4 8104155 DOWEL
5 8006993 EARTH WIRE
6 8113214 INSULATING RING
7 8104358 EARTH WIRE
8 11197771 SPRING WASHER Ø6X12 MM SP=1,2 MM
9 16043124 SCREW M8X14 MM
10 11193871 WASHER Ø8X16X1,4 MM
11 15896211 HEXAGON NUT M6
12 10441290 PIPE CLIP Ø10 MM
13 8009013 CONTROL BOARD ASSY 380V 50-60HZ [from ...]
