GE8210SRi26.01A51L

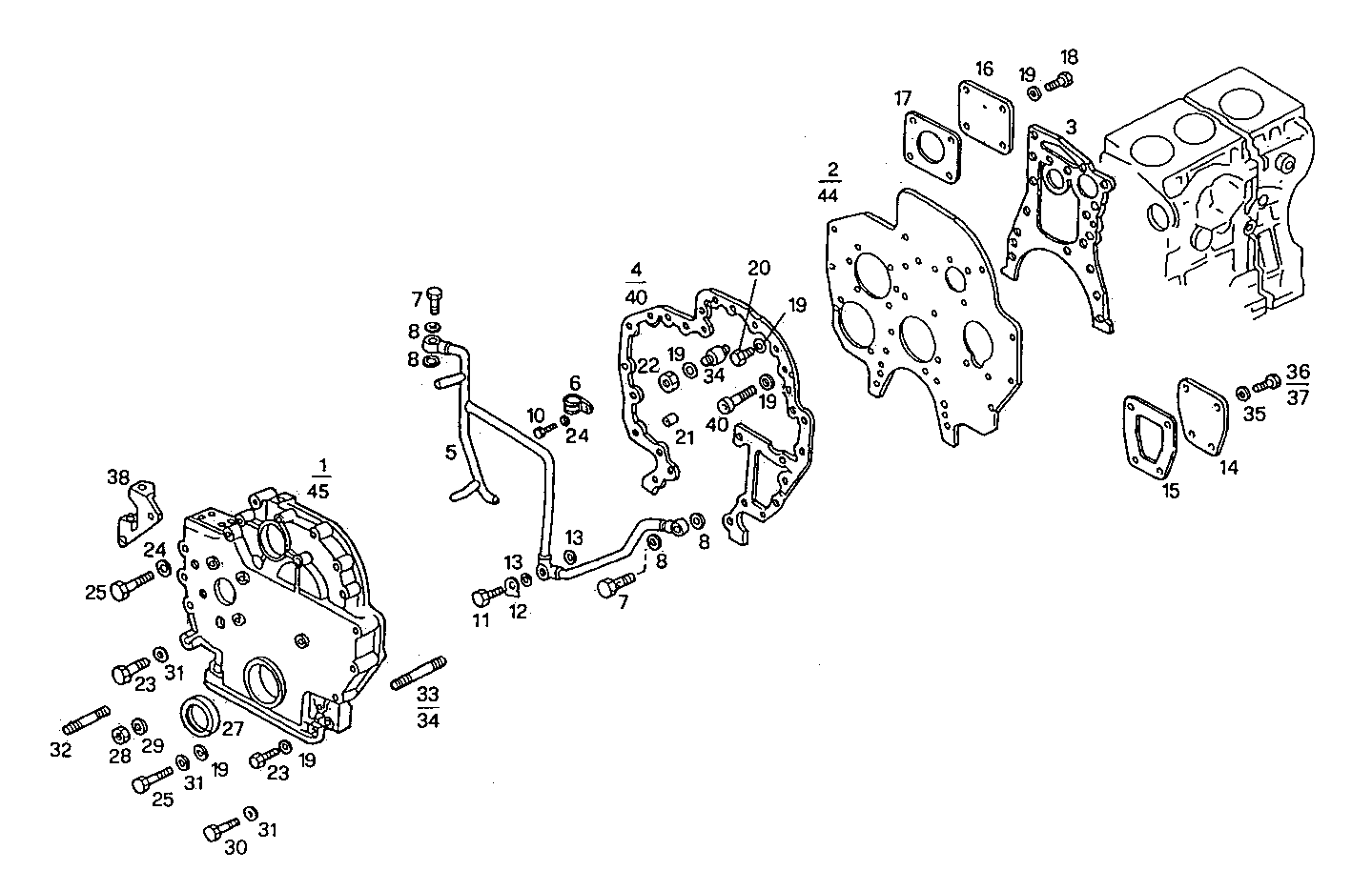

0430.022/01 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 98430321 FRONT C.CASE COVER ASSY [from ...]
2 98430318 PLATE [from ...]
3 4679630 FLAT ENGINE GASKET
4 98431737 FLAT ENGINE GASKET [from ...]
5 4801914 OIL LINE
6 852410 FASTENING BRACKET
7 4707984 SCREW CONNECTOR
8 10262760 SEAL GASKET Ø8,2 MM
10 16042921 SCREW M8X10
11 4679620 SCREW CONNECTOR
12 852409 LOCKING PLATE Ø10,5 MM
13 4858606 GASKET Ø10X14X1 MM
14 4687341 COVER
15 4864032 FLAT ENGINE GASKET
16 4773932 COVER REAR
17 98424208 GASKET
18 15970624 HEXAGON BOLT M12X1,25X22 MM
19 17090274 WASHER Ø10X20 MM
20 15970733 HEXAGON BOLT M10X1,25X25 MM
21 10837810 DOWEL PIN Ø12 MM
22 17038221 HEXAGON NUT M10
23 15977531 SCREW M14X1,5X60
24 14496604 WASHER Ø10X21 MM
25 15971724 HEXAGON BOLT M10X1,25X95 MM
27 40100303 SHAFT SEAL Ø70X90 MM SP=10 MM
28 17038521 HEXAGON NUT M12X1,5
29 12646904 WASHER
30 16045121 HEXAGON BOLT M8X95 MM
31 10519624 WASHER Ø8X16X1,6 MM
32 13453721 STUD M10X25X30
33 4628504 STUD
34 4666138 STUD
35 17090174 SPRING WASHER Ø10X20 MM
36 15970924 HEXAGON BOLT M10X1,25X35 MM
37 15970524 HEXAGON BOLT M10X1,25X20
38 4805220 PLATE
40 16606424 HEXAGON BOLT M8X65 MM
40 98414689 GASKET [up to ...]
44 4715165 PLATE [up to ...]
45 98420717 FRONT C.CASE COVER ASSY [up to ...]
