GE8210SRi26.01A52S

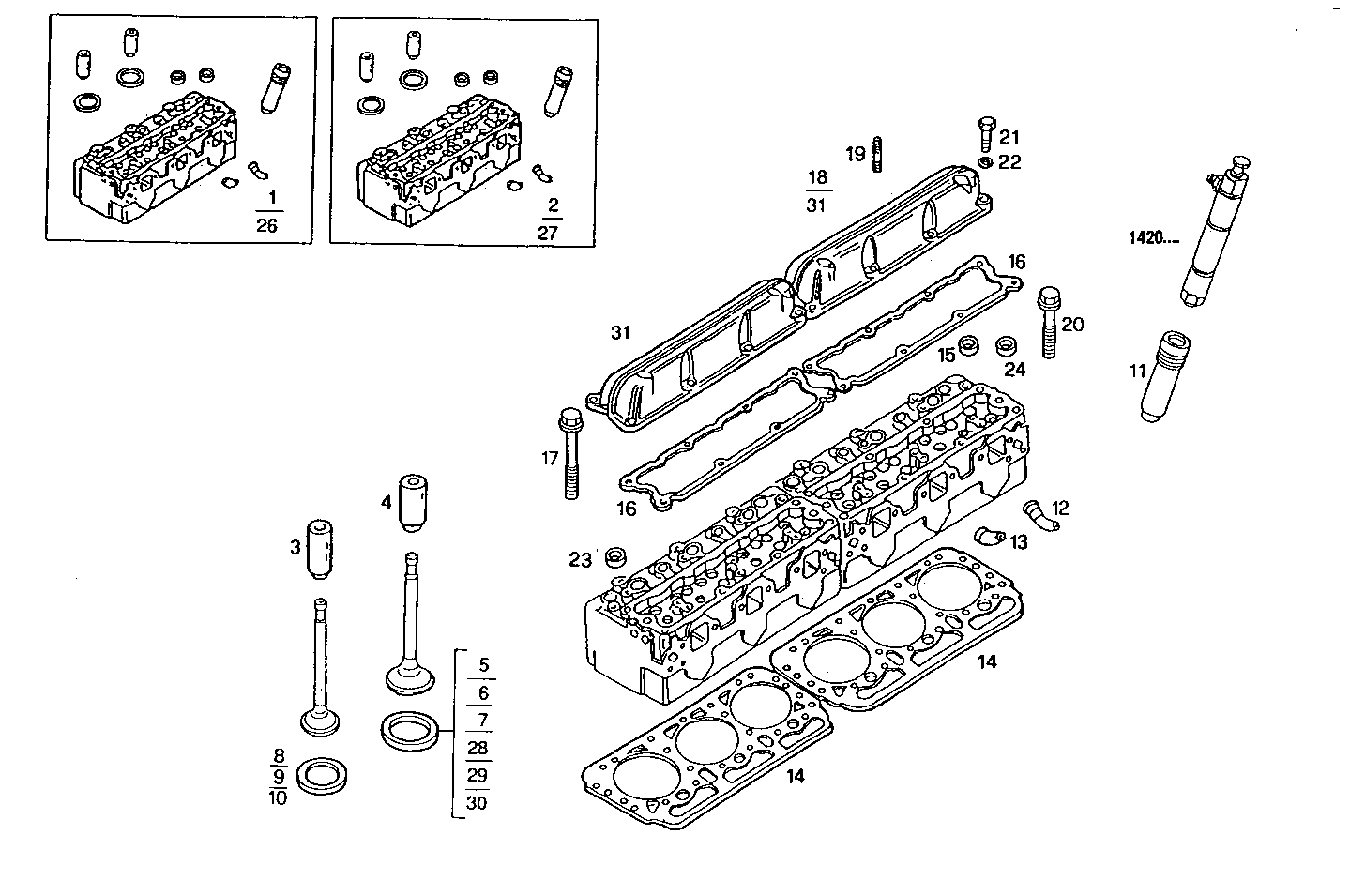

0600.140/01 CYLINDER HEAD

Iveco/FPT CYLINDER HEAD

Item Part number Description
1 4792355 CYLINDER HEAD ASSY FRONT [up to 258269]
2 4792356 CYLINDER HEAD ASSY REAR [up to 258269]
3 4648237 VALVE GUIDE
4 4630923 VALVE GUIDE
5 4849707 VALVE SEAT STD. [from 258270]
6 4849715 VALVE SEAT +0.20 [from 258270]
7 4849716 VALVE SEAT +0.05 [from 258270]
8 4673864 VALVE SEAT STD.
9 4673868 VALVE SEAT +0.20
10 4673869 VALVE SEAT +0.05
11 4673598 NOZZLE HOLDER SEAT
12 4638192 PIPE
13 4623879 PIPE
14 4830381 CYL.HEAD GASKET GOETZE
15 14282670 LOCK PLUG Ø32 MM
16 98420446 HEAD COVER GASKET
17 4769616 CYL.HEAD STUD
18 8111179 CYL. HEAD COVER
20 4769615 SCREW
21 16606424 HEXAGON BOLT M8X65 MM
22 17094914 WASHER 8x16
23 14324801 LOCK PLUG M12X1,5
24 14282370 LOCK PLUG Ø25 MM
26 98418215 CYLINDER HEAD ASSY FRONT [up to 01-99]
27 98418216 CYLINDER HEAD ASSY REAR [up to 01-99]
28 4673863 VALVE SEAT STD.
29 4673866 VALVE SEAT +0.20
30 4673867 VALVE SEAT +0.05
31 4786120 CYL. HEAD COVER
