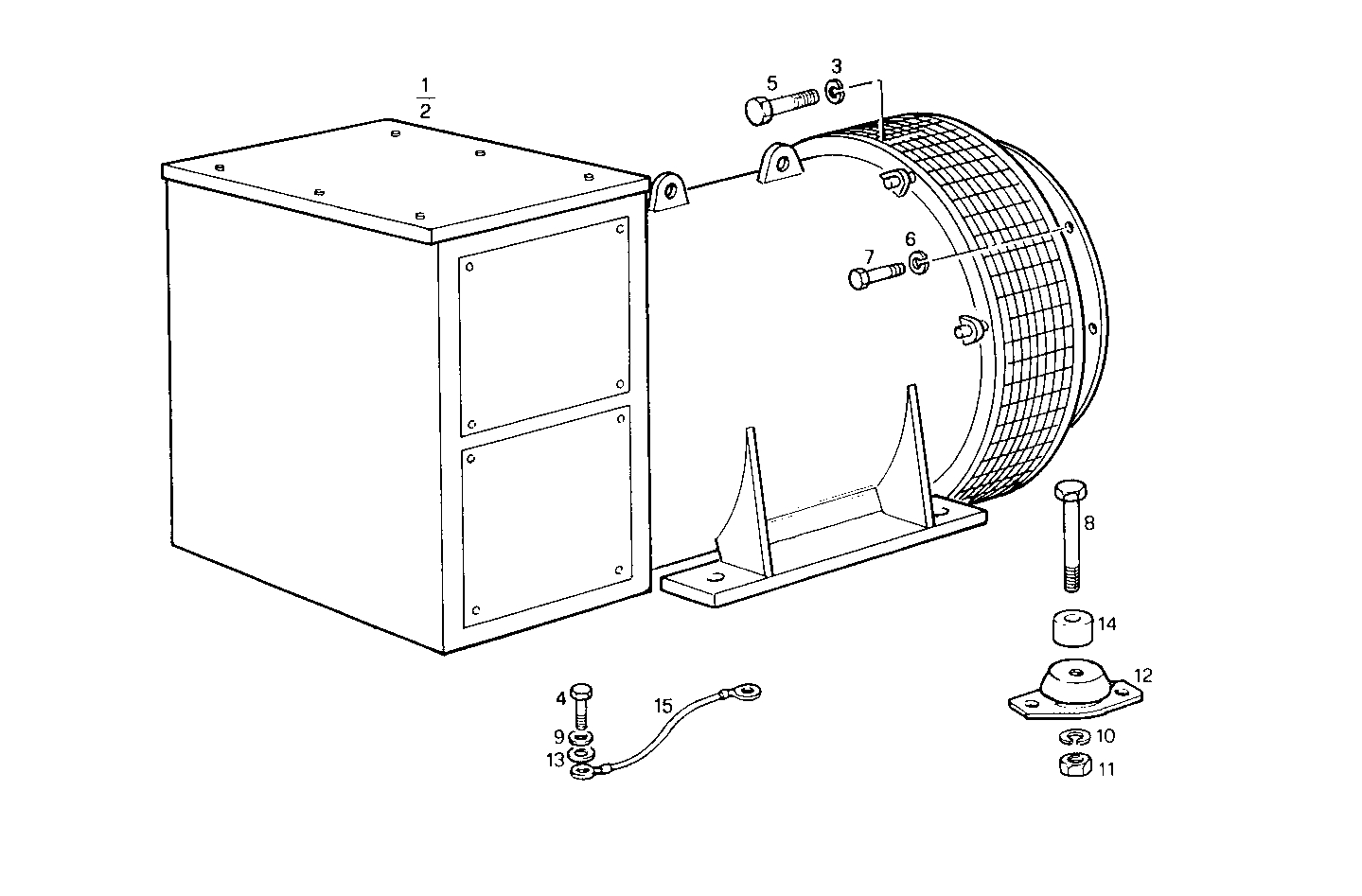

| Item |
Part number |
Description |
|
1 |
8008499 |
ELECTRIC MACHINE LSA 465 VL 12S 50-60HZ [up to ...] |
|
2 |
8114414 |
ELECTRIC MACHINE LSA 46 L10 50HZ [from ...] |
|
3 |
11198379 |
SPRING WASHER Ø10X20 MM SP=2,6 |
|
4 |
15970521 |
HEXAGON BOLT M10X20 MM |
|
5 |
11234721 |
HEXAGON BOLT M10X1,25X45 MM |
|
6 |
17091171 |
WASHER Ø12X24X3,2 MM |
|
7 |
15540431 |
HEXAGON BOLT M12X1,25X30 MM |
|
8 |
15978121 |
HEXAGON BOLT |
|
9 |
10730501 |
WASHER Ø10,2 MM |
|
10 |
11200179 |
SPRING WASHER Ø14X32 MM |
|
11 |
12164011 |
HEXAGON NUT M14X1,5 [up to…] |
|
12 |
4927807 |
RUBBER PAD |
|
13 |
11190679 |
SPRING WASHER Ø10X27 MM SP=2,5 |
|
14 |
8005402 |
SPACING BAR 35MM |
|
15 |
8104707 |
WIRE/CABLE |
