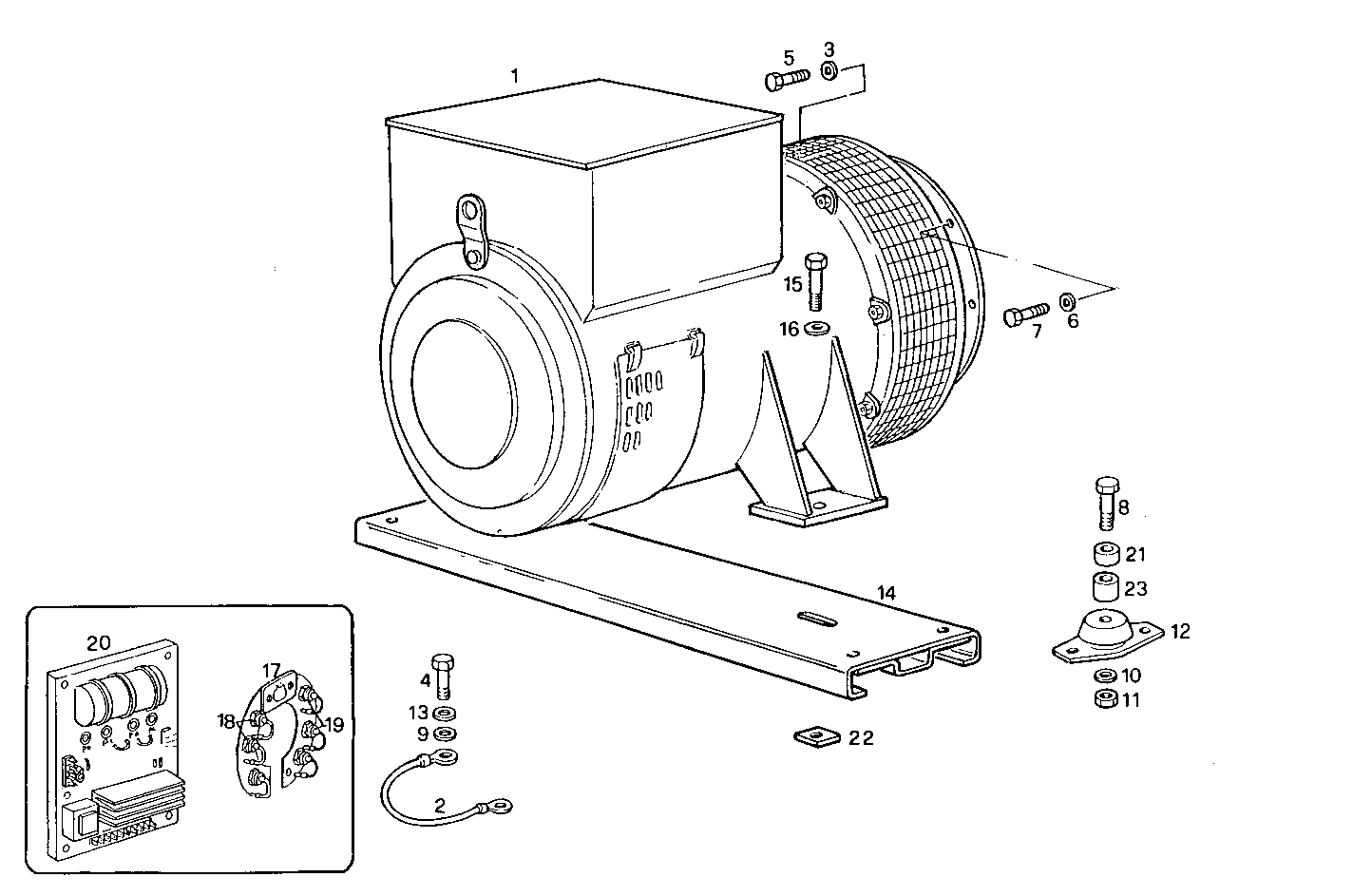

| Item |
Part number |
Description |
|
1 |
8015646 |
ELECTRIC MACHINE LSA 461 VL12 220V-380V [up to ...] |
|
2 |
8110852 |
EARTH WIRE |
|
3 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
4 |
15970521 |
HEXAGON BOLT M10X20 MM |
|
5 |
11234721 |
HEXAGON BOLT M10X1,25X45 MM |
|
6 |
17091171 |
WASHER Ø12X24X3,2 MM |
|
7 |
15540431 |
HEXAGON BOLT M12X1,25X30 MM |
|
8 |
16621024 |
SCREW M24X180 |
|
9 |
16665604 |
WASHER Ø10X20 MM |
|
10 |
17093174 |
WASHER Ø24X46X5,4 MM |
|
11 |
17039721 |
HEXAGON NUT M24 |
|
12 |
4955094 |
RUBBER PAD |
|
13 |
17090474 |
SPRING WASHER Ø10X27 MM SP=2,5 |
|
14 |
8019196 |
SUPPORT |
|
15 |
16617724 |
HEXAGON BOLT M20X80 MM |
|
16 |
17092774 |
WASHER Ø20X38X4,6 MM |
|
17 |
8092295 |
SUPPRESSOR |
|
18 |
8092294 |
EL.MACHINE DIODE - |
|
19 |
8092293 |
EL.MACHINE DIODE + |
|
20 |
8092292 |
EL.MACHINE VOLTAGE REGUL. |
|
21 |
8016970 |
SPACING BAR |
|
22 |
8019231 |
PLATE |
|
23 |
8016025 |
SPACING BAR |
