GE8210SRi26.01A71L

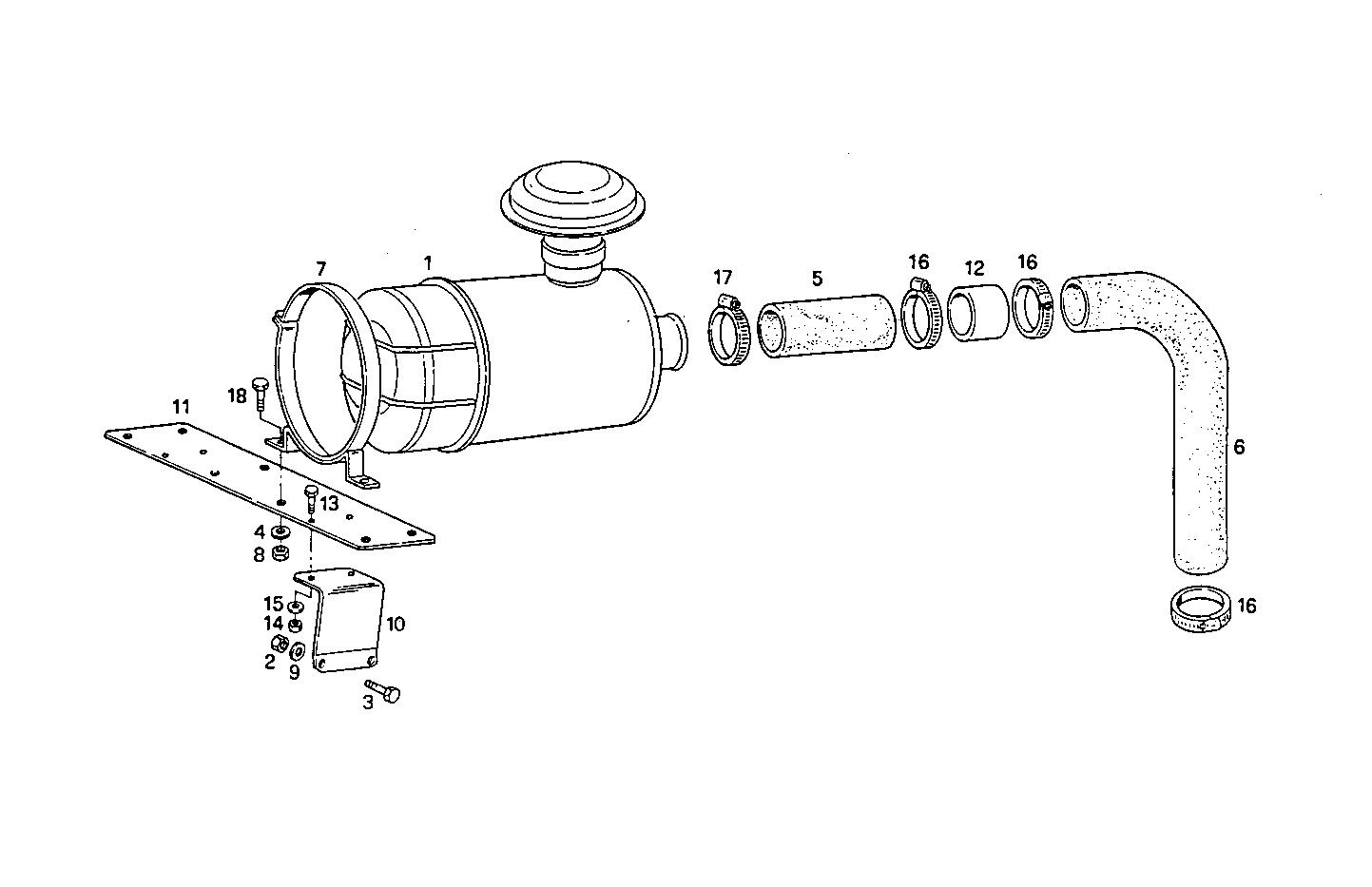

A21170038 DRY AIR CLEANER - with mechanical clogging gauge - genset

Iveco/FPT DRY AIR CLEANER

Item Part number Description
1 8106913 AIR CLEANER ASSY
2 16101511 HEXAGON NUT M12X1,25
3 15540621 HEXAGON BOLT M12X40 MM
4 11190579 SPRING WASHER Ø10X20 MM SP=2,3
5 4927737 AIR HOSE
6 4932921 AIR HOSE
7 8106400 CLIP
8 12164711 HEXAGON NUT M10X1,25
9 11190779 SPRING WASHER Ø12X24 SP=2,8 MM
10 8109320 RETAINER
11 8109321 PLATE
12 8109322 AIR PIPE/DUCT RIGHT
13 16043421 HEXAGON BOLT M8X20 MM
14 17037931 HEXAGON NUT M8X1,25
15 11193879 SPRING WASHER Ø8X16 MM
16 12177590 CLIP Ø107-127 MM
17 12174690 CLIP
18 15970521 HEXAGON BOLT M10X20 MM
