GE8210SRi26.03R970

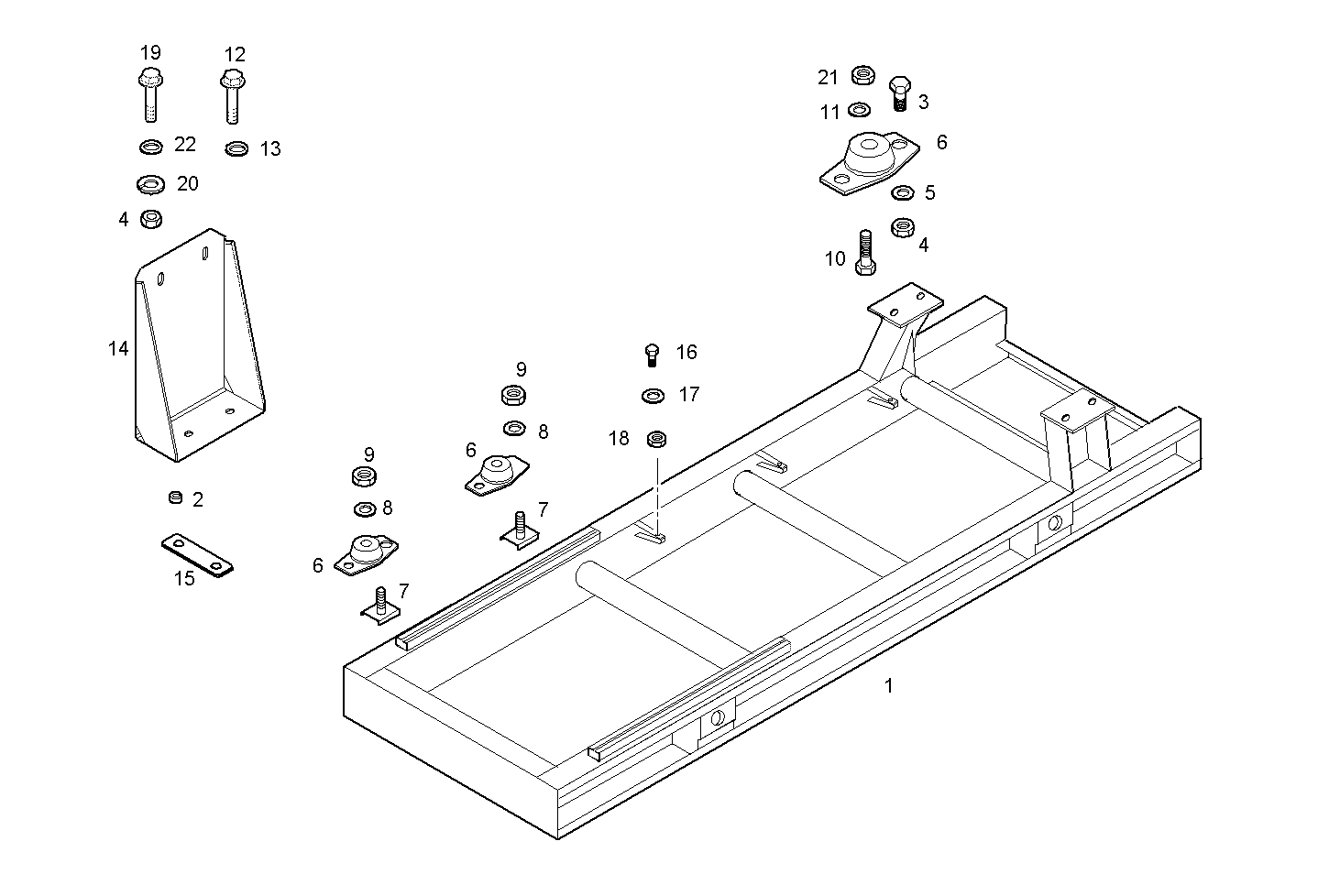

A36810003 SUBBASE FOR GENERATOR UNIT

Iveco/FPT SUBBASE FOR GENERATOR UNIT

Item Part number Description
1 8029749 SUBBSAE-SUPPORT FRAME
2 8019415 SPACING BAR
3 16614724 SCREW M16X45
4 17038931 HEXAGON NUT M16X2
5 17092374 SPRING WASHER Ø16X34X3,6 MM
6 4955094 RUBBER PAD
7 8015168 SCREW
8 17091974 SPRING WASHER Ø14X32 MM SP=3,4 MM
9 17038721 NUT M14X2 [from ...]
10 16620124 SCREW M24X3X80
11 17093174 WASHER Ø24X46X5,4 MM
12 16607524 HEXAGON BOLT M10X1,5X20 MM (8.8)
13 17090174 SPRING WASHER Ø10X20 MM
14 8016858 SUPPORT
15 8010041 SPACING BAR SP=7 MM
16 16605524 HEXAGON BOLT M8X20 MM
17 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
18 17037925 HEXAGON NUT M8X1,25
19 16614824 SCREW M16X50
20 17092174 SPRING WASHER Ø16X32X3,4
21 17039721 HEXAGON NUT M24
22 17095704 WASHER Ø16X30 MM
