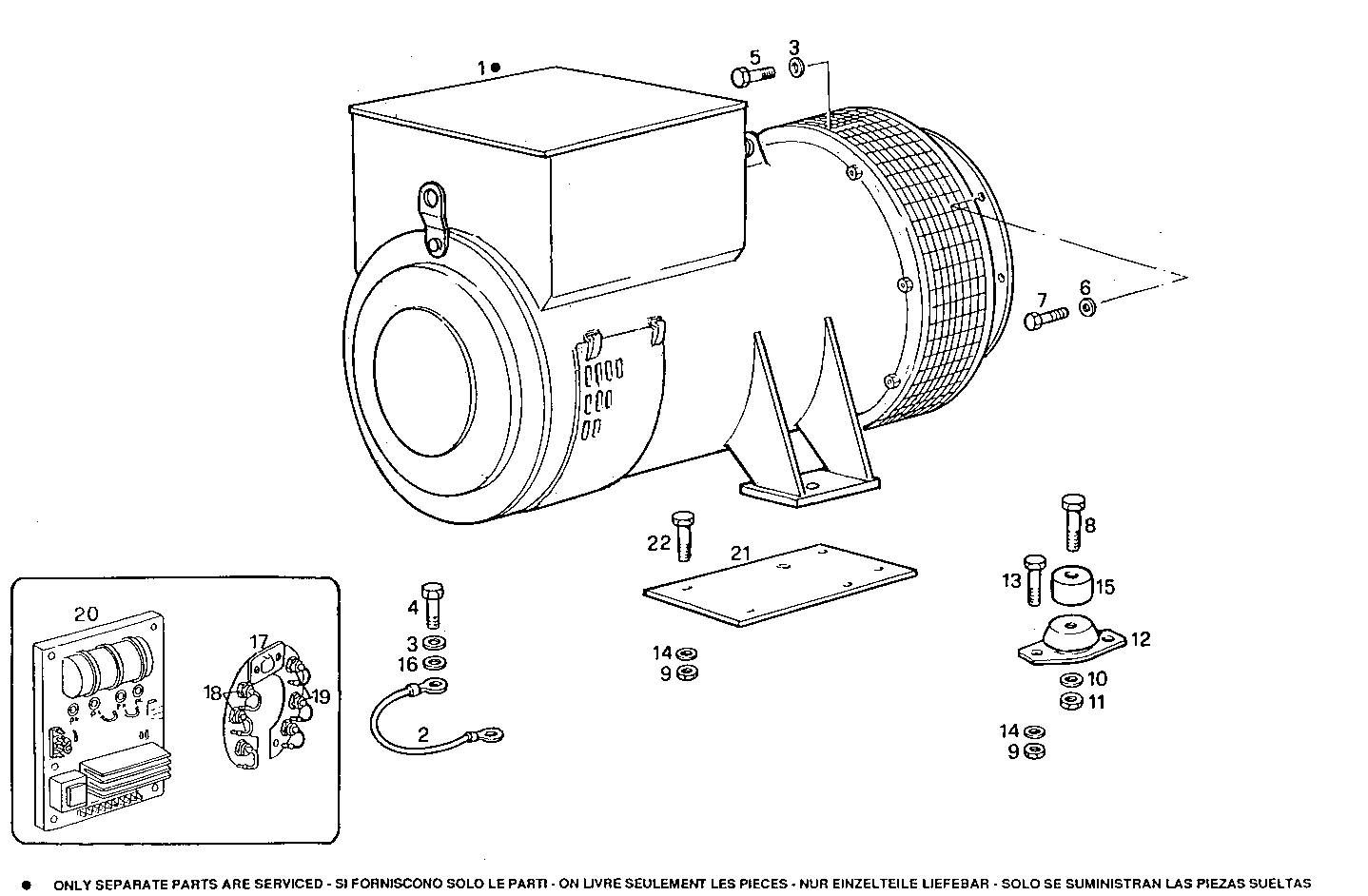

| Item |
Part number |
Description |
|
1 |
8016223 |
ELECTRIC MACHINE LSA 471 M4 50-60HZ |
|
2 |
8104358 |
EARTH WIRE |
|
3 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
4 |
16607424 |
SCREW M10X16 |
|
5 |
11234721 |
HEXAGON BOLT M10X1,25X45 MM |
|
6 |
17091171 |
WASHER Ø12X24X3,2 MM |
|
7 |
15540421 |
SCREW M12X1,25X30 |
|
8 |
16620424 |
HEXAGON BOLT M24X110 MM |
|
9 |
17038921 |
NUT M16X2 |
|
10 |
17093171 |
WASHER Ø24X46X5,4 MM |
|
11 |
17039721 |
HEXAGON NUT M24 |
|
12 |
4955094 |
RUBBER PAD |
|
13 |
16614724 |
SCREW M16X45 |
|
14 |
17092371 |
WASHER Ø16X34X3,6 MM |
|
16 |
17095104 |
WASHER Ø10X21X2 MM |
|
17 |
8092295 |
SUPPRESSOR |
|
18 |
8092294 |
EL.MACHINE DIODE - |
|
19 |
8092293 |
EL.MACHINE DIODE + |
|
20 |
8092292 |
EL.MACHINE VOLTAGE REGUL. |
|
21 |
8016222 |
PLATE |
|
22 |
16614924 |
SCREW M16X55 |
