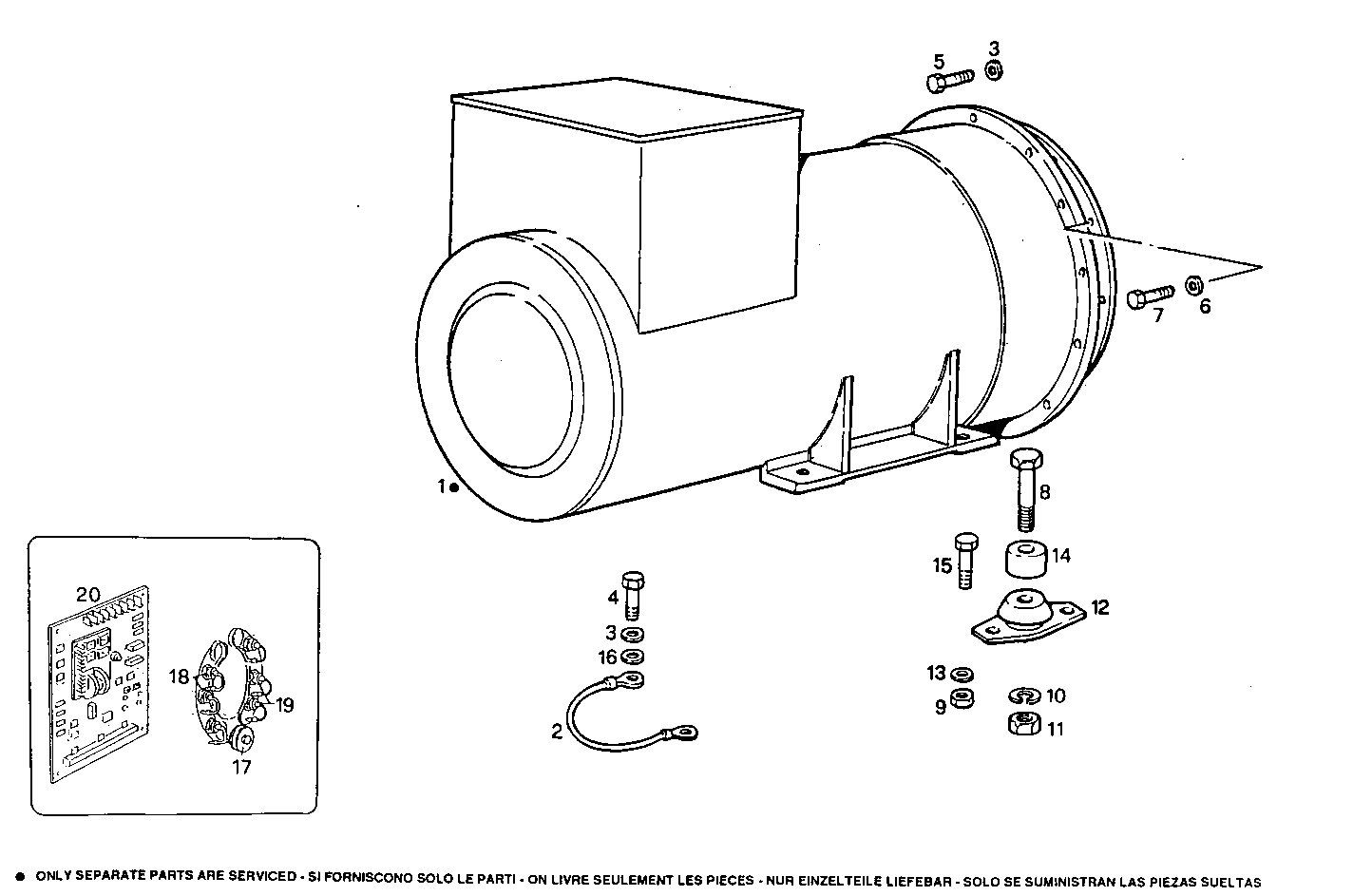

| Item |
Part number |
Description |
|
1 |
8008285 |
ELECTRIC MACHINE M7B 315 SB/4 50HZ |
|
2 |
8104358 |
EARTH WIRE |
|
3 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
4 |
16607424 |
SCREW M10X16 |
|
5 |
11307021 |
HEXAGON BOLT M10X40 MM |
|
6 |
17091174 |
SPRING WASHER Ø12X24 MM |
|
7 |
15540431 |
HEXAGON BOLT M12X1,25X30 MM |
|
8 |
16620824 |
SCREW M24X150 |
|
9 |
17038921 |
NUT M16X2 |
|
10 |
17093174 |
WASHER Ø24X46X5,4 MM |
|
11 |
17039721 |
HEXAGON NUT M24 |
|
12 |
4955094 |
RUBBER PAD |
|
13 |
17092374 |
SPRING WASHER Ø16X34X3,6 MM |
|
14 |
8010711 |
SPACING BAR |
|
15 |
16614724 |
SCREW M16X45 |
|
16 |
17095104 |
WASHER Ø10X21X2 MM |
|
17 |
8106490 |
SUPPRESSOR MARELLI |
|
18 |
8106488 |
EL.MACHINE DIODE MARELLI - REVERSE |
|
19 |
8106487 |
EL.MACHINE DIODE MARELLI - FORWARD |
|
20 |
8091766 |
EL.MACHINE VOLTAGE REGUL. MARELLI |
