GE8210SRi27.01A955

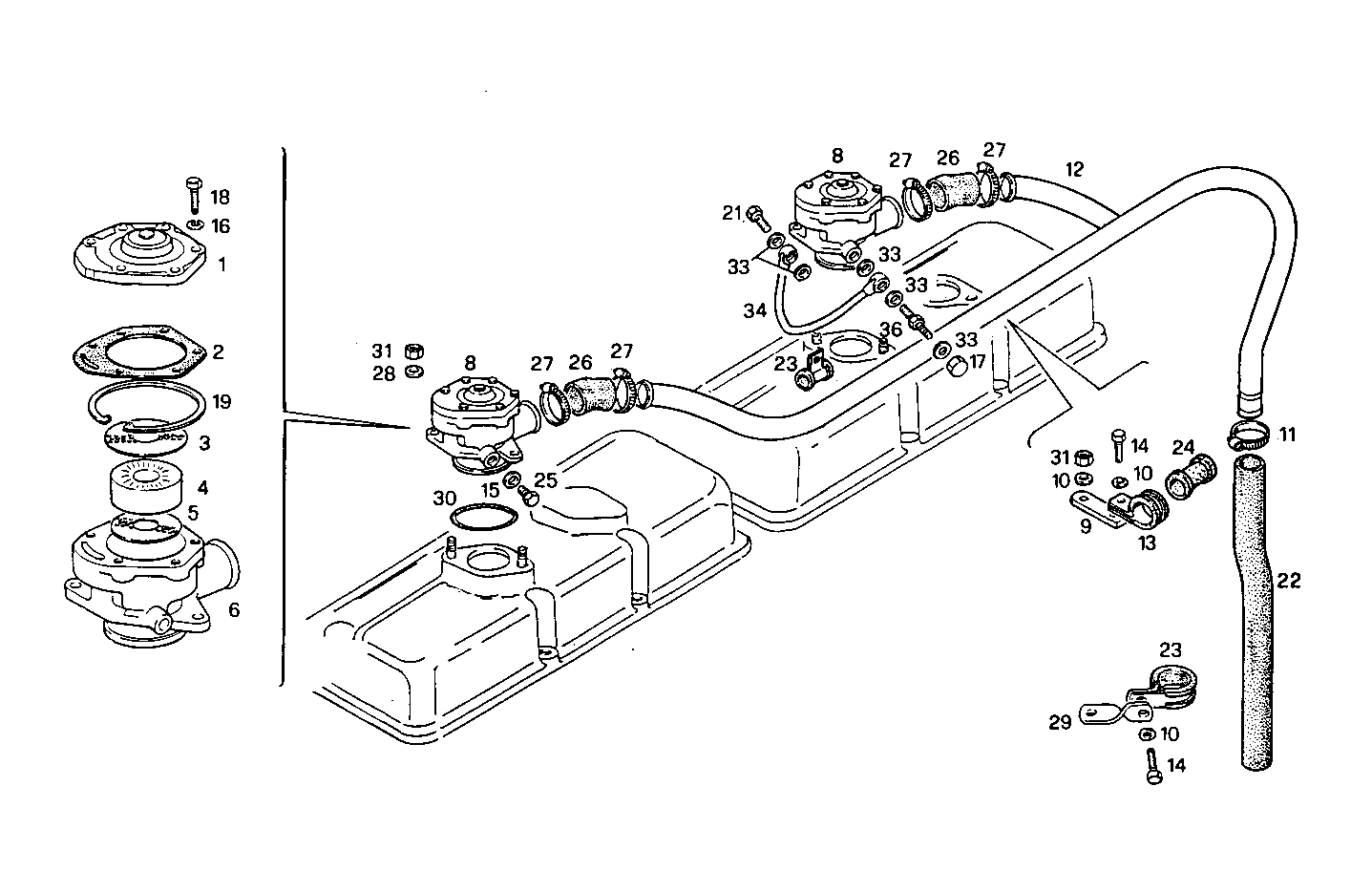

0450.037 ENGINE BREATHERS
| Item | Part number | Description |
|---|---|---|
| 1 | 4771075 | COVER |
| 2 | 61320345 | FLAT ENGINE GASKET |
| 3 | 4771080 | DISC |
| 4 | 4771079 | FILTER |
| 5 | 4771081 | DISC |
| 6 | 4771073 | BEARING HOUSING |
| 8 | 61320347 | BREATHER ASSY |
| 9 | 4716869 | RETAINER |
| 10 | 17089471 | SPRING WASHER Ø16X8 MM SP=1,4 MM |
| 11 | 17764592 | CLIP Ø20/32 MM |
| 12 | 8005084 | BREATHER PIPE |
| 13 | 4760226 | FASTENING BRACKET |
| 14 | 16605424 | SCREW M8X16 MM (8.8) |
| 15 | 10296360 | GASKET Ø10X14X1 MM |
| 16 | 17094701 | WASHER Ø6X12 MM |
| 17 | 11902117 | PLUG M10X1,25 |
| 18 | 16603924 | HEXAGON BOLT M6X30 MM |
| 19 | 16874976 | CIRCLIP Ø90,5 MM |
| 20 | 11194071 | WASHER Ø8X16X1,9 MM |
| 21 | 4864080 | SCREW CONNECTOR M10X1,25 |
| 22 | 8016337 | OIL HOSE |
| 23 | 17317190 | PIPE CLIP Ø24 MM |
| 24 | 4747140 | RUBBER PAD |
| 25 | 11903111 | LOCK PLUG M10X1,25 |
| 26 | 8009117 | RUBBER SLEEVE |
| 27 | 17764691 | CLIP Ø25/40 MM |
| 28 | 12646704 | WASHER Ø8X21X1,5 MM |
| 29 | 4787181 | SUPPORT |
| 30 | 17289681 | O-RING Ø44 MM SP=3,53 MM |
| 31 | 17037931 | HEXAGON NUT M8X1,25 |
| 32 | 16043421 | HEXAGON BOLT M8X20 MM |
| 33 | 4858606 | GASKET Ø10X14X1 MM |
| 34 | 8013058 | BREATHER PIPE |
| 36 | 11901711 | SCREW CONNECTOR |
