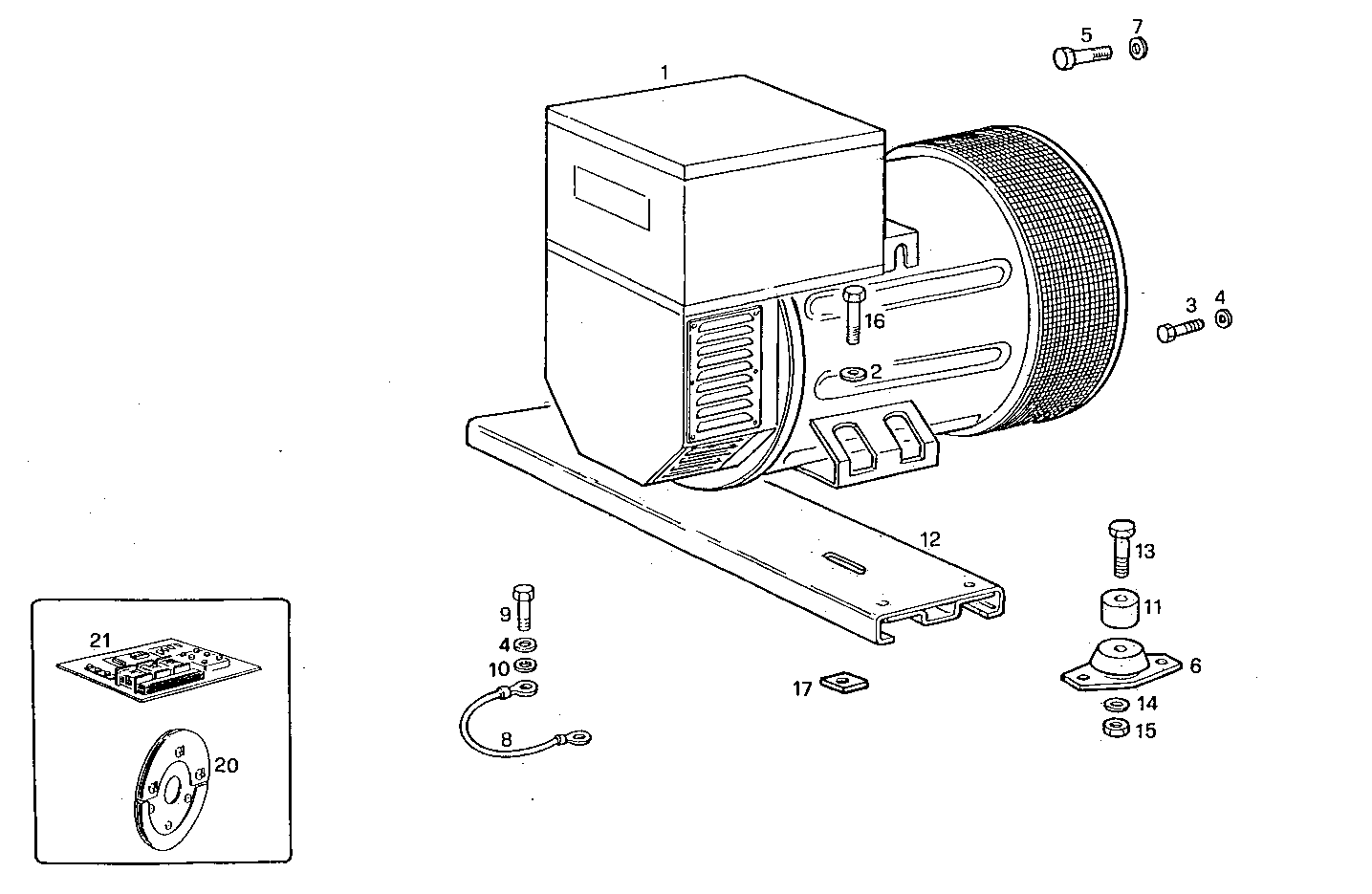

| Item |
Part number |
Description |
|
1 |
8015006 |
ELECTRIC MACHINE ECN 37 LD/4 50-60HZ |
|
2 |
17092774 |
WASHER Ø20X38X4,6 MM |
|
3 |
15004624 |
HEXAGON BOLT M10X50 MM |
|
4 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
5 |
15540431 |
HEXAGON BOLT M12X1,25X30 MM |
|
6 |
4599094 |
CONTROL CABLE |
|
7 |
17091174 |
SPRING WASHER Ø12X24 MM |
|
8 |
8110852 |
EARTH WIRE |
|
9 |
16607424 |
SCREW M10X16 |
|
10 |
17095104 |
WASHER Ø10X21X2 MM |
|
11 |
8016970 |
SPACING BAR |
|
12 |
8019196 |
SUPPORT |
|
13 |
16621024 |
SCREW M24X180 |
|
14 |
17093174 |
WASHER Ø24X46X5,4 MM |
|
15 |
17039721 |
HEXAGON NUT M24 |
|
16 |
16617624 |
SCREW M20X70 |
|
17 |
8019231 |
PLATE |
|
20 |
8090799 |
EL.MACHINE DIODE MECC-ALTE |
|
21 |
8091776 |
EL.MACHINE VOLTAGE REGUL. MECC-ALTE |
