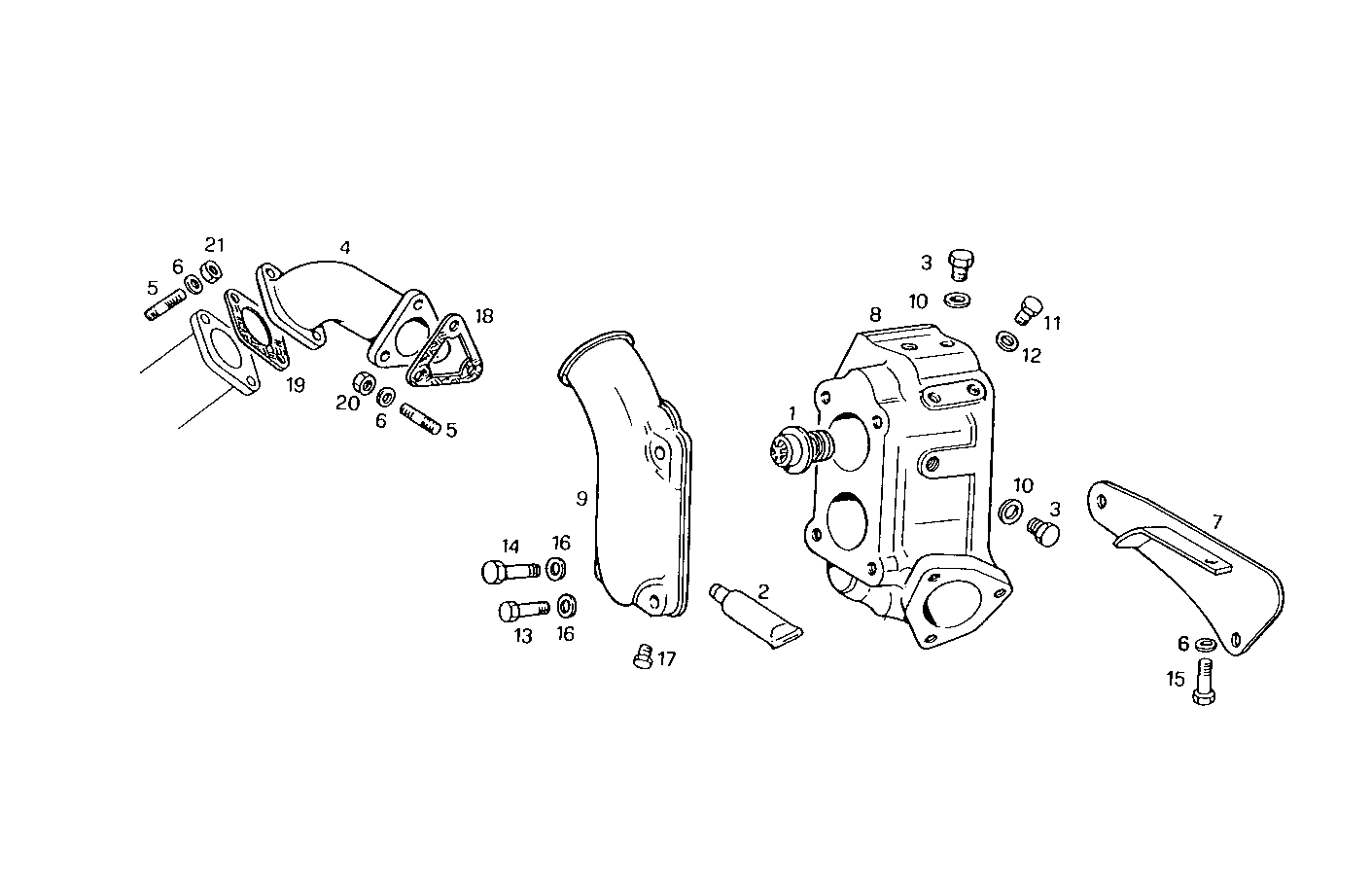

| Item |
Part number |
Description |
|
1 |
8110947 |
THERMOSTAT |
|
2 |
45500051 |
ADHESIVE/STICKER |
|
3 |
10300640 |
LOCK PLUG M14X1,5 |
|
4 |
4751003 |
WATER PIPE |
|
5 |
16729324 |
STUD M8X12X20 MM |
|
6 |
11193879 |
SPRING WASHER Ø8X16 MM |
|
7 |
4800743 |
RETAINER |
|
8 |
8111337 |
SUPPORT |
|
9 |
4725688 |
COVER |
|
10 |
10280060 |
WASHER Ø14X20 MM SP=1,5 MM |
|
11 |
16992440 |
THREADED PLUG M16X1,5 |
|
12 |
10257060 |
SEAL GASKET Ø16X22 MM SP=1,5 MM |
|
13 |
15971521 |
HEXAGON BOLT M10X85 MM |
|
14 |
15970921 |
HEXAGON BOLT M10X1,25X35 MM |
|
15 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
16 |
17090474 |
SPRING WASHER Ø10X27 MM SP=2,5 |
|
17 |
16992311 |
LOCK PLUG M14X1,5 |
|
18 |
4816168 |
GASKET |
|
19 |
4816169 |
GASKET |
|
20 |
16979431 |
NUT M8 |
|
21 |
17037931 |
HEXAGON NUT M8X1,25 |
