GE8281M32.30A001

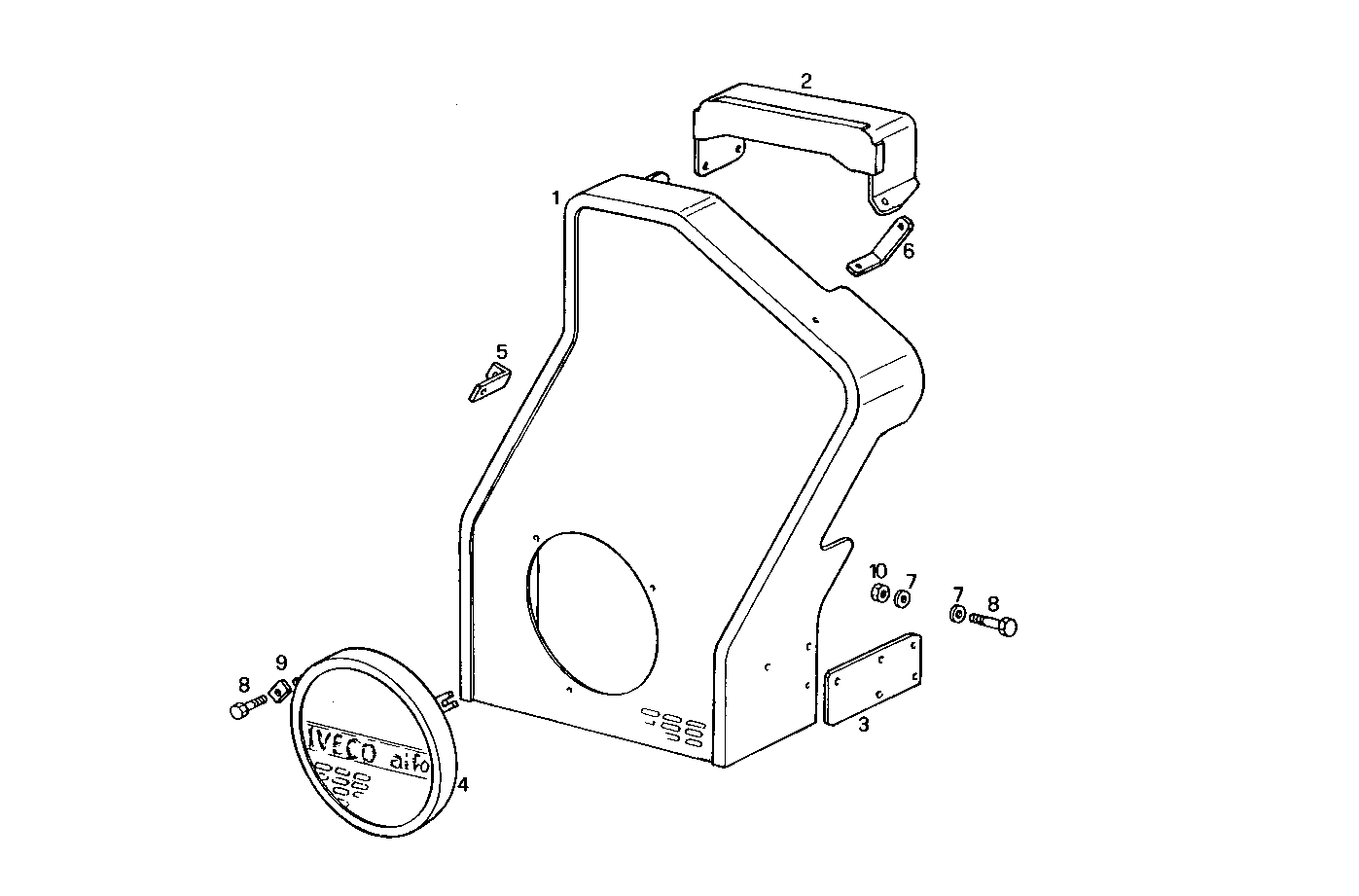

5770.033 SHIELDS

Iveco/FPT SHIELDS

Item Part number Description
1 8025403 PROTECTION
2 8025456 PROTECTION
3 8025430 RETAINER
4 8022086 COVER
5 8025459 RETAINER
6 8025458 RETAINER
7 17089574 WASHER Ø8X16 MM
8 16605424 SCREW M8X16 MM (8.8)
9 7300648 LOCKING PLATE
10 17037821 HEXAGON NUT M6X1
