GE8281SRG75.10A80E

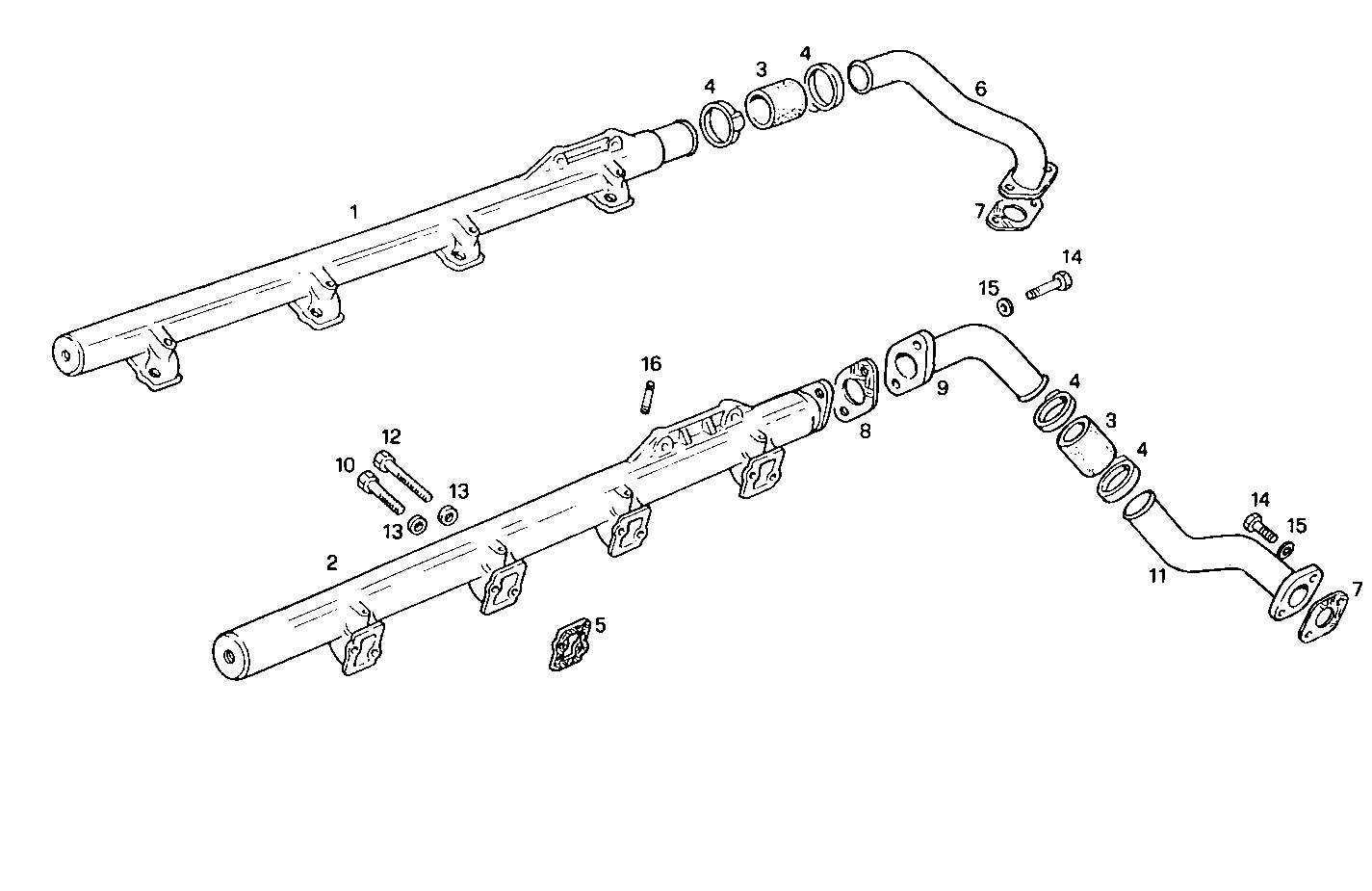

3210.188/01 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4678211 | WATER MANIFOLD |
| 2 | 4760275 | WATER MANIFOLD |
| 3 | 98421375 | AIR HOSE |
| 4 | 17764891 | CLIP Ø40/60 MM |
| 5 | 98418857 | FLAT ENGINE GASKET |
| 6 | 8017830 | WATER PIPE |
| 7 | 8008755 | FLAT ENGINE GASKET |
| 8 | 4863528 | GASKET |
| 9 | 8017829 | WATER PIPE |
| 10 | 16605924 | SCREW M8X40 MM |
| 11 | 8017913 | WATER PIPE |
| 12 | 16606624 | HEXAGON BOLT M8X80 MM |
| 13 | 12646721 | WASHER Ø8X20 MM |
| 14 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 15 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 16 | 13540921 | STUD M6X12X16 MM |
