GE8281SRG75.10A80E

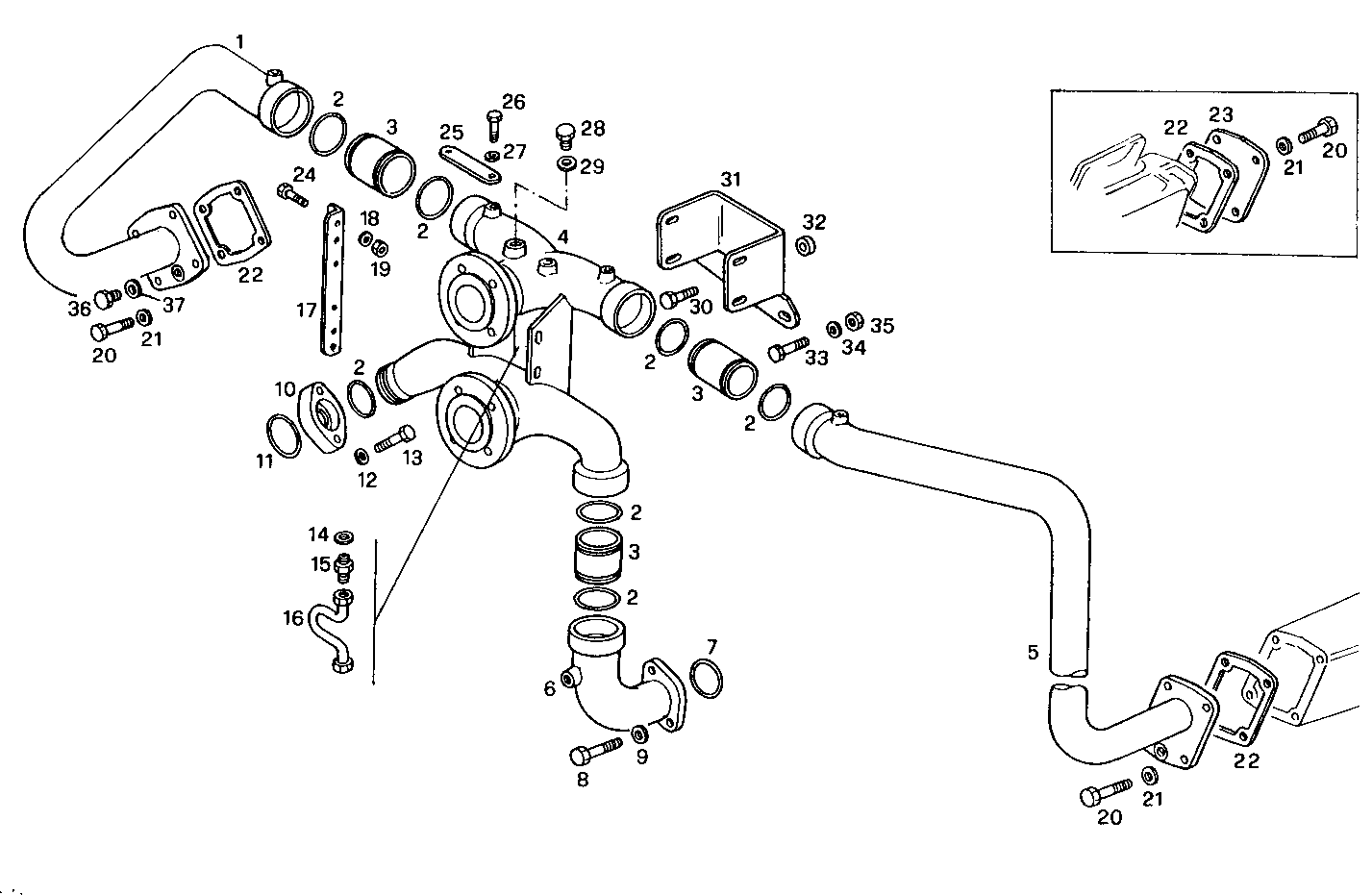

3210.188/02 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 8022313 WATER PIPE
2 17289981 O-RING Ø53,57X3,53 MM
3 8009637 WATER PIPE L=50 MM
4 8022310 WATER PIPE
5 8022312 WATER PIPE
6 8022309 WATER PIPE
7 17290481 O-RING 3,53x69,44 [UP TO # 328594]
8 11306921 SCREW M10X1,25X30
9 17090174 SPRING WASHER Ø10X20 MM
10 8022176 FLANGE
11 17283681 O-RING Ø45,6 MM SP=2,62 MM
12 17494834 WASHER Ø8 MM
13 16690724 CYLIND-HEAD SCREW M8X30 MM
14 4858607 WASHER Ø12X17 MM SP=1,5 MM
15 16500114 THREADED UNION M12X1,5 - M14X1,5
16 8022534 WATER PIPE
17 8022367 RETAINER
18 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
19 17037931 HEXAGON NUT M8X1,25
20 16605624 HEXAGON BOLT M8X25 MM (8.8)
22 8105608 GASKET
23 8113918 COVER
24 16605524 HEXAGON BOLT M8X20 MM
25 8017759 PLATE
26 16605424 SCREW M8X16 MM (8.8)
27 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
28 16992411 THREADED PLUG M16X1,5
29 4858609 WASHER Ø16X22 MM SP=1,5 MM
30 15232121 SCREW
31 8022366 RETAINER
32 4932695 WASHER
33 15971421 HEXAGON BOLT M10X1,25X80 MM
34 8113726 WASHER
35 17038221 HEXAGON NUT M10
36 16992311 LOCK PLUG M14X1,5
37 4858608 SEAL GASKET dia.14x19,5x1,5
