GE8281SRG75.10A80E

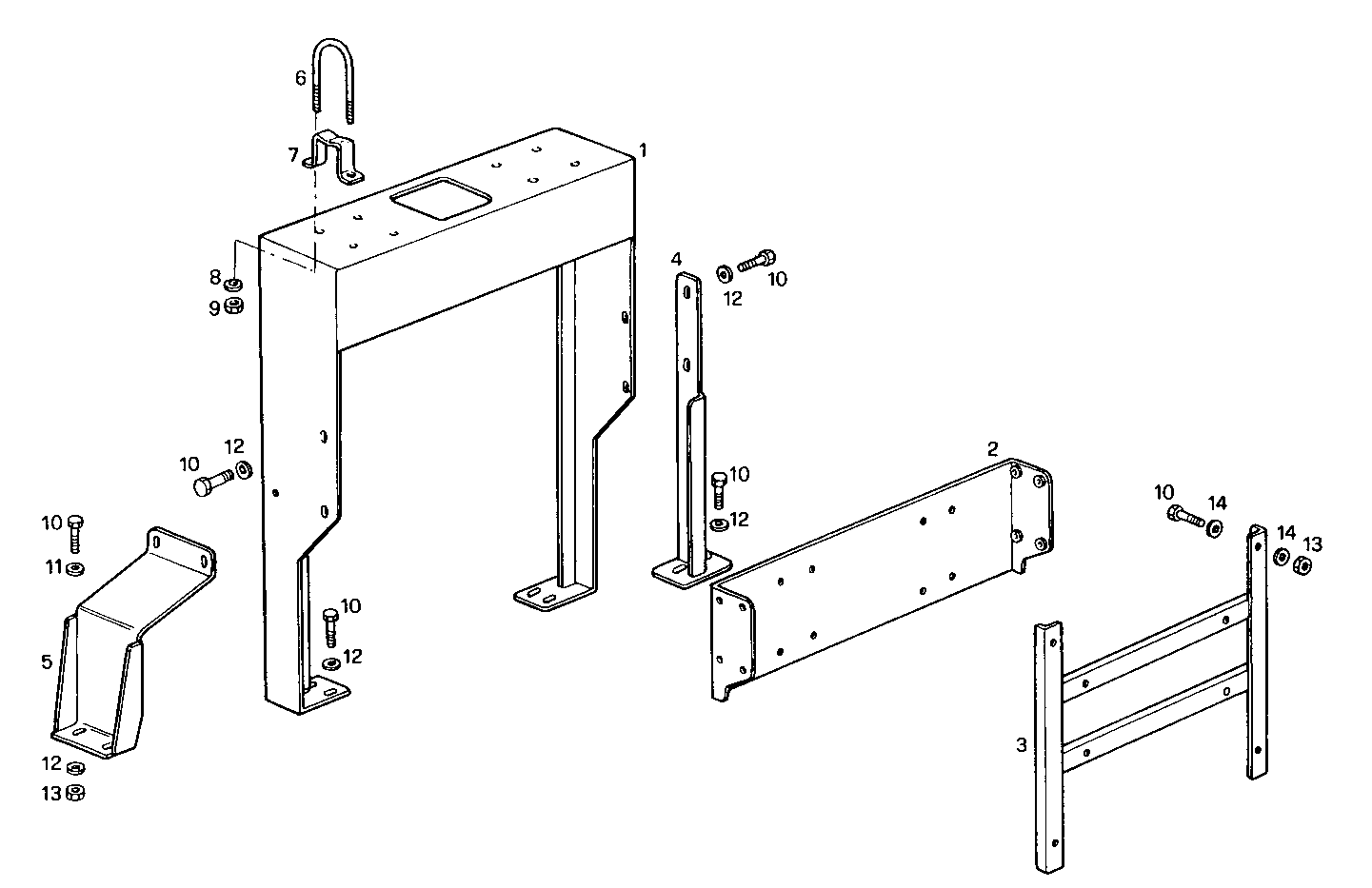

A85010002/02 GAS CONTROL TRAIN
| Item | Part number | Description |
|---|---|---|
| 1 | 8027191 | RETAINER |
| 2 | 8027290 | RETAINER |
| 3 | 8027284 | SUPPORT |
| 4 | 8027329 | RETAINER |
| 5 | 8027683 | RETAINER |
| 6 | 8024465 | TIE ROD |
| 7 | 8024466 | YOKE |
| 8 | 17090374 | WASHER |
| 9 | 17038121 | HEXAGON NUT M10 |
| 10 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 11 | 8102049 | WASHER |
| 12 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
| 13 | 17037931 | HEXAGON NUT M8X1,25 |
| 14 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
