GE8281SRG85.10A80E

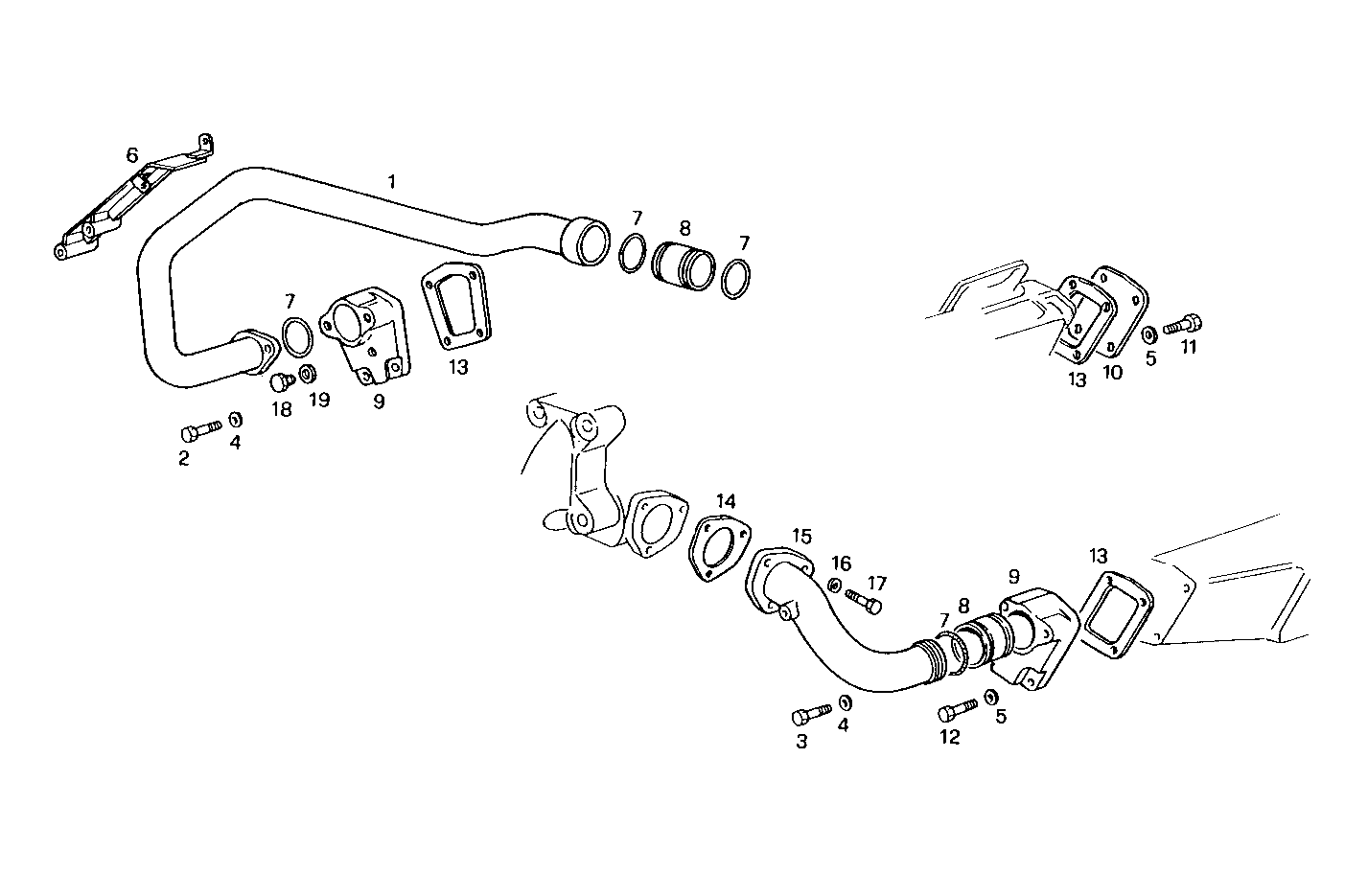

3210.191/02 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 8112005 WATER PIPE
2 16691424 HEXAGON BOLT M8X65
3 16691224 CYLIND-HEAD SCREW M8X55 MM
4 17101534 SPRING WASHER Ø8 MM
5 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
6 8007842 RETAINER
7 17289681 O-RING Ø44 MM SP=3,53 MM
8 8112495 CONNECTOR SLEEVE
9 8109497 COVER
10 8113918 COVER
11 16605624 HEXAGON BOLT M8X25 MM (8.8)
12 16043521 SCREW M8X22
13 8105608 GASKET
14 4863539 FLAT ENGINE GASKET
15 8027004 WATER PIPE
16 17088474 WASHER Ø6X12 MM
17 16604124 HEXAGON BOLT M6X40 MM
18 16692411 PLUG M10X40 MM
19 4858609 WASHER Ø16X22 MM SP=1,5 MM
