GE8281SRG85.10A80E

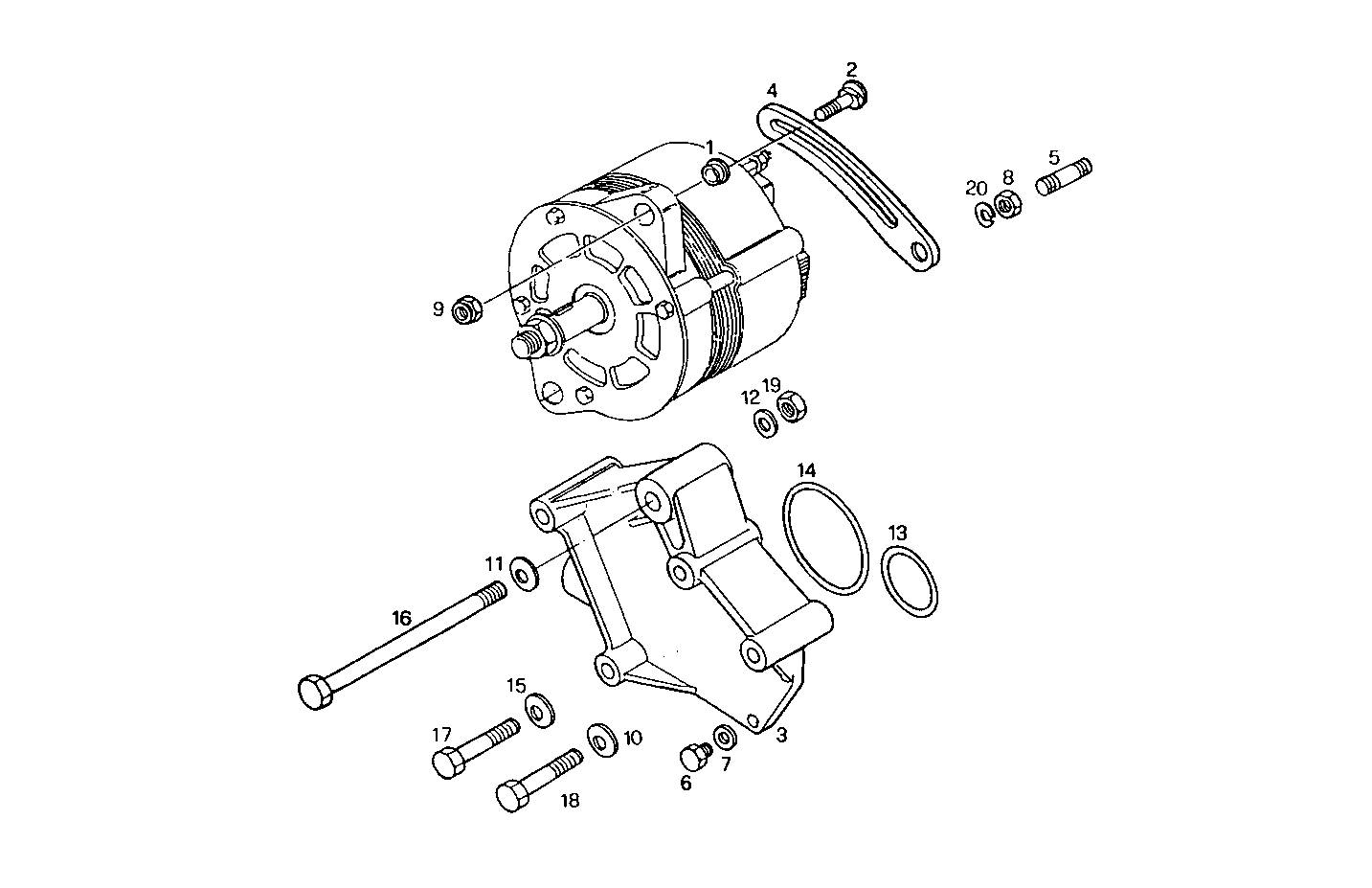

4010.096 MOUNT

Iveco/FPT MOUNT

Item Part number Description
1 4677044 SPACING BAR
2 4799044 THREADED PIN
3 4799669 GENERATOR SUPPORT
4 4799775 BRACE/STRUT
5 13449321 STUD M10X1,25X15X20 MM
6 10278301 LOCK PLUG M28
7 10296260 SEAL GASKET Ø28X36 MM SP=1,5 MM
8 17038221 HEXAGON NUT M10
9 12574511 NUT M10X1,25
10 13579721 WASHER
11 12646901 WASHER Ø12X28 MM
12 17091174 SPRING WASHER Ø12X24 MM
13 17282781 O-RING Ø31,42 MM SP=2,62 MM
14 14461181 O-RING Ø2,6X88,5 MM
15 17095125 WASHER
16 15543221 HEXAGON BOLT M12X1,25X125 MM
17 15971421 HEXAGON BOLT M10X1,25X80 MM
18 16606024 SCREW M8X45 MM
19 17038621 NUT M12
20 17090274 WASHER Ø10X20 MM
