GE8281SRG85.10A80E

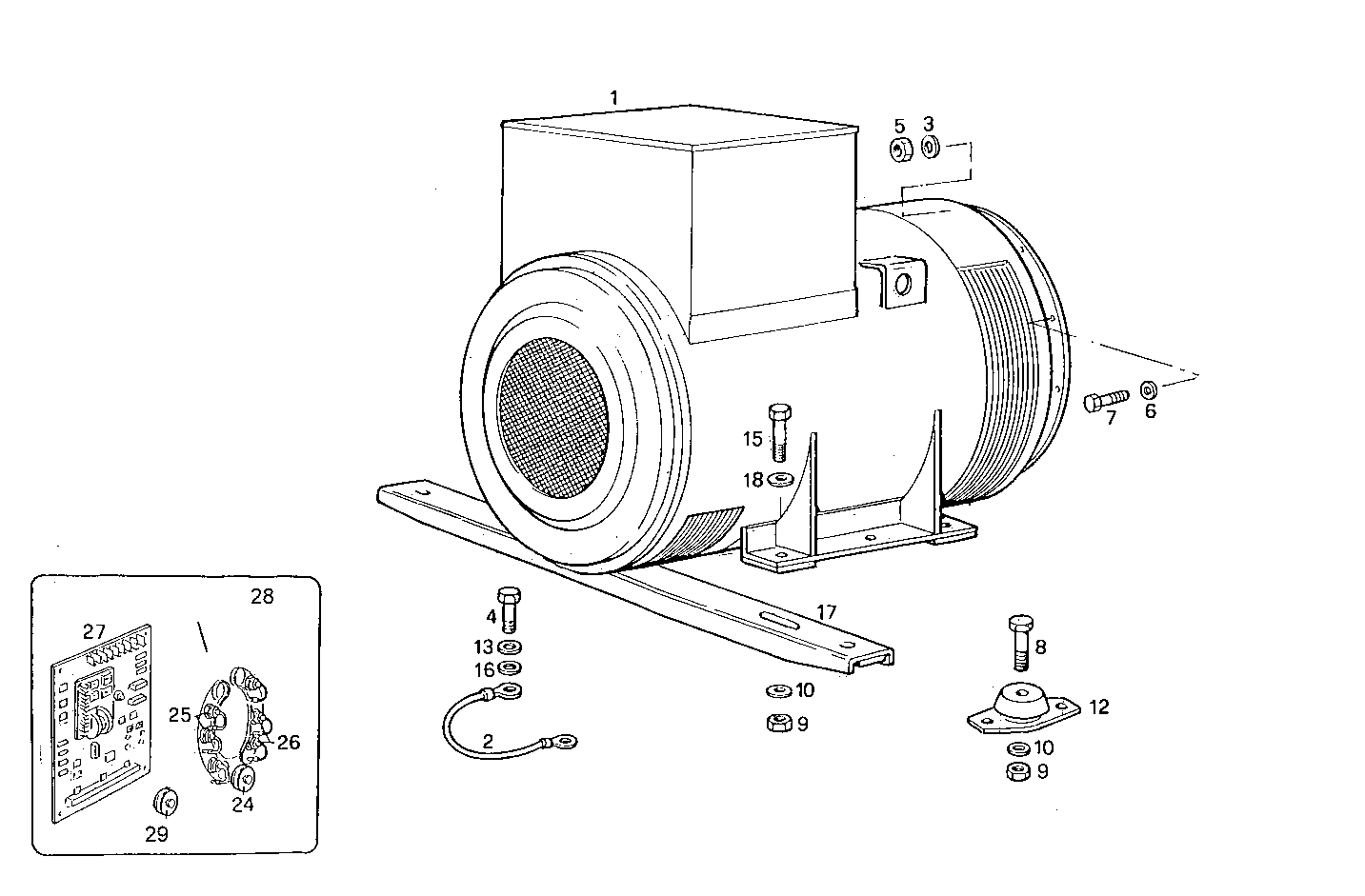

A37210064 SINGLE BEARING ELECTRIC MACHINE - MARELLI

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8025520 ELECTRIC MACHINE M7B 315 SA/4 50HZ
2 8104707 WIRE/CABLE
3 17090174 SPRING WASHER Ø10X20 MM
4 16605524 HEXAGON BOLT M8X20 MM
5 17038221 HEXAGON NUT M10
6 17091174 SPRING WASHER Ø12X24 MM
7 15540431 HEXAGON BOLT M12X1,25X30 MM
8 16620224 SCREW M24X90
9 17039721 HEXAGON NUT M24
10 17093174 WASHER Ø24X46X5,4 MM
12 4955094 RUBBER PAD
13 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
15 16620024 SCREW M24X70
16 16665504 WASHER Ø8 MM
17 8025438 SUPPORT
18 8016962 WASHER
24 8106490 SUPPRESSOR MARELLI
25 8106488 EL.MACHINE DIODE MARELLI - REVERSE
26 8106487 EL.MACHINE DIODE MARELLI - FORWARD
27 8091766 EL.MACHINE VOLTAGE REGUL. MARELLI
28 8094561 CONDENSER
29 8094560 SUPPRESSOR
