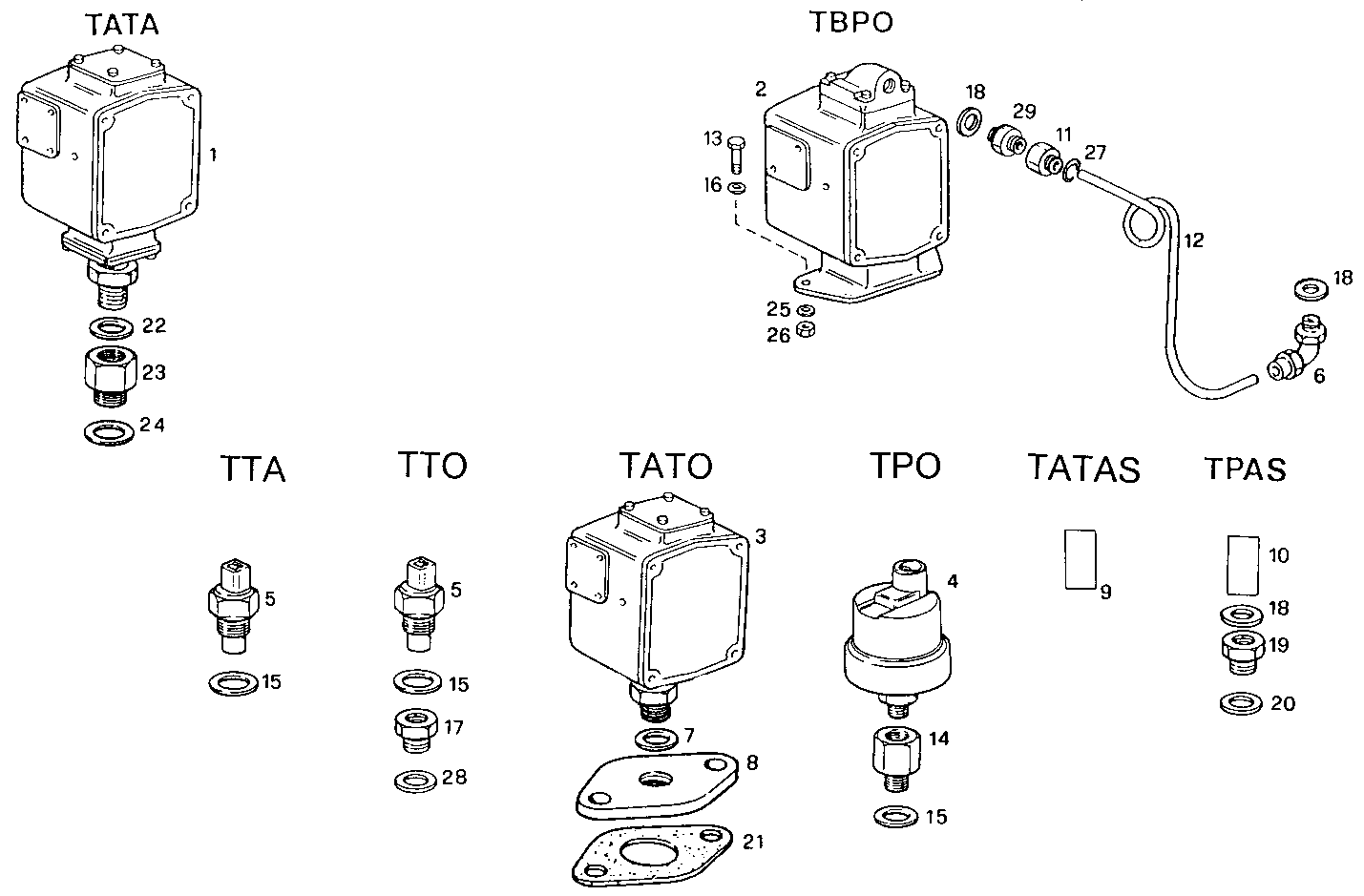

| Item |
Part number |
Description |
|
1 |
8110742 |
TRANSMITTER |
|
2 |
8110741 |
TRANSMITTER TBPO |
|
3 |
8111450 |
TRANSMITTER TATO |
|
4 |
8100563 |
TRANSMITTER TPO |
|
5 |
4933019 |
TRANSMITTER TTA - TTO |
|
6 |
8111261 |
PIPE SOCKET Ø1/8'' MM |
|
7 |
11271460 |
GASKET Ø21X26X1,5 MM |
|
8 |
8111336 |
FLANGE |
|
9 |
8023756 |
TRANSMITTER |
|
10 |
8024371 |
TRANSMITTER |
|
11 |
8110258 |
PIPE SOCKET |
|
12 |
8021856 |
HOSE L=450 MM |
|
13 |
16603624 |
HEXAGON BOLT M6X16 MM (8.8) |
|
14 |
8011514 |
THREADED UNION |
|
15 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
16 |
17094604 |
WASHER Ø6X11 MM |
|
17 |
4929231 |
PIPE SOCKET |
|
18 |
4858606 |
GASKET Ø10X14X1 MM |
|
19 |
4928113 |
PIPE SOCKET |
|
20 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
21 |
4863361 |
GASKET |
|
23 |
8025727 |
PIPE SOCKET |
|
24 |
98429282 |
SEAL GASKET Ø26X33 MM SP=1,5 MM |
|
25 |
17088474 |
WASHER Ø6X12 MM |
|
26 |
17037821 |
HEXAGON NUT M6X1 |
|
27 |
8024645 |
O-RING Ø4 MM |
|
28 |
10284460 |
SEAL GASKET Ø10X16 MM |
|
29 |
16500011 |
PIPE SOCKET |
