GE8281SRi26.01A955

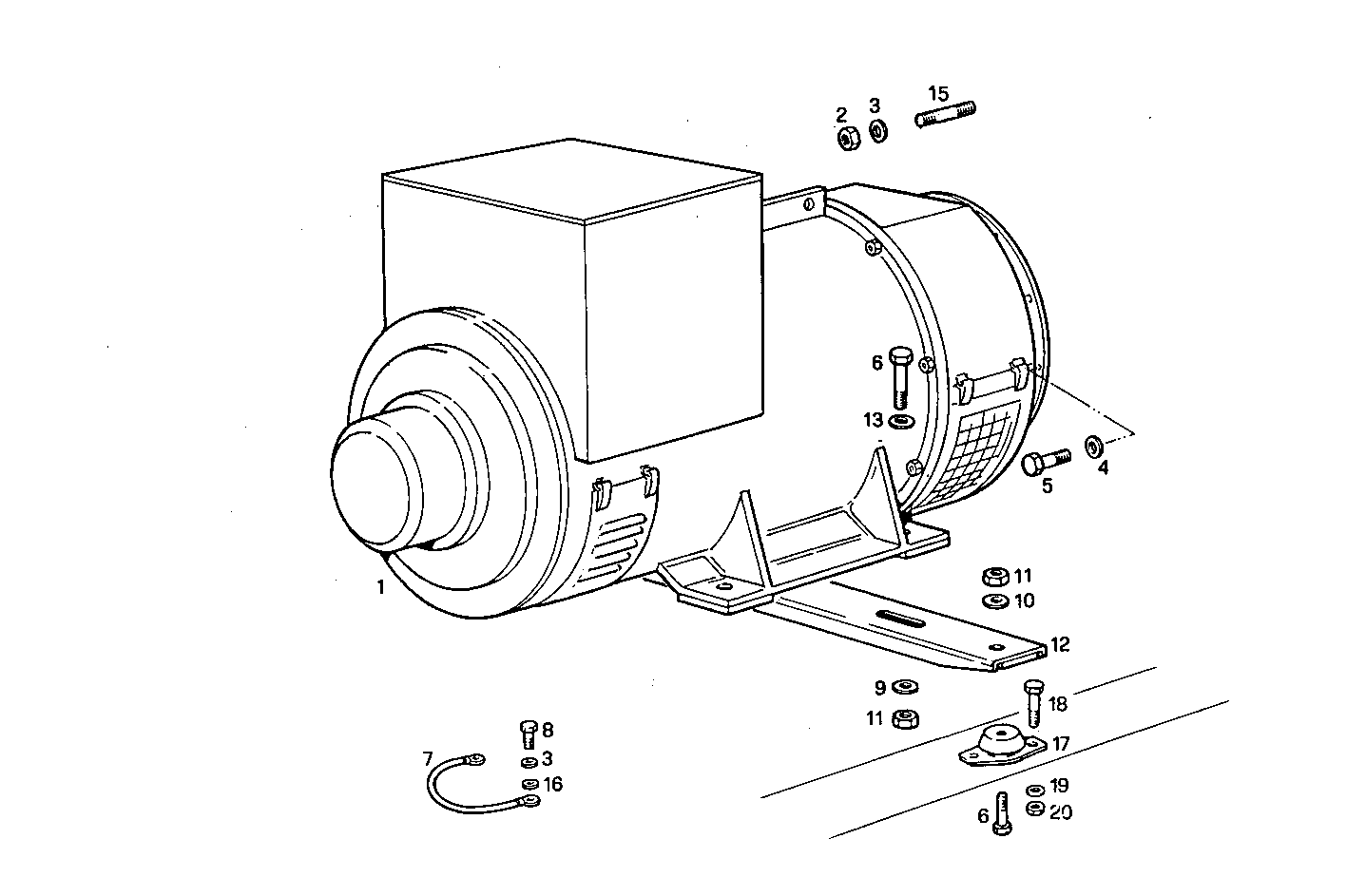

A37010059 SINGLE BEARING ELECTRIC MACHINE - STAMFORD

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8010552 ELECTRIC MACHINE HC 534 1C 50-60HZ
2 17038221 HEXAGON NUT M10
3 17090174 SPRING WASHER Ø10X20 MM
4 17091174 SPRING WASHER Ø12X24 MM
5 15540431 HEXAGON BOLT M12X1,25X30 MM
6 16620224 SCREW M24X90
7 8006993 EARTH WIRE
8 15970521 HEXAGON BOLT M10X20 MM
9 8016962 WASHER
10 17093174 WASHER Ø24X46X5,4 MM
11 17039721 HEXAGON NUT M24
12 8016859 SUPPORT
15 17368124 STUD M10X1,5X35 MM
16 17095104 WASHER Ø10X21X2 MM
17 4955094 RUBBER PAD
18 8015164 SCREW CONNECTOR
19 17091974 SPRING WASHER Ø14X32 MM SP=3,4 MM
20 17038721 NUT M14X2 [from ...]
