GE8281SRi26.01A955

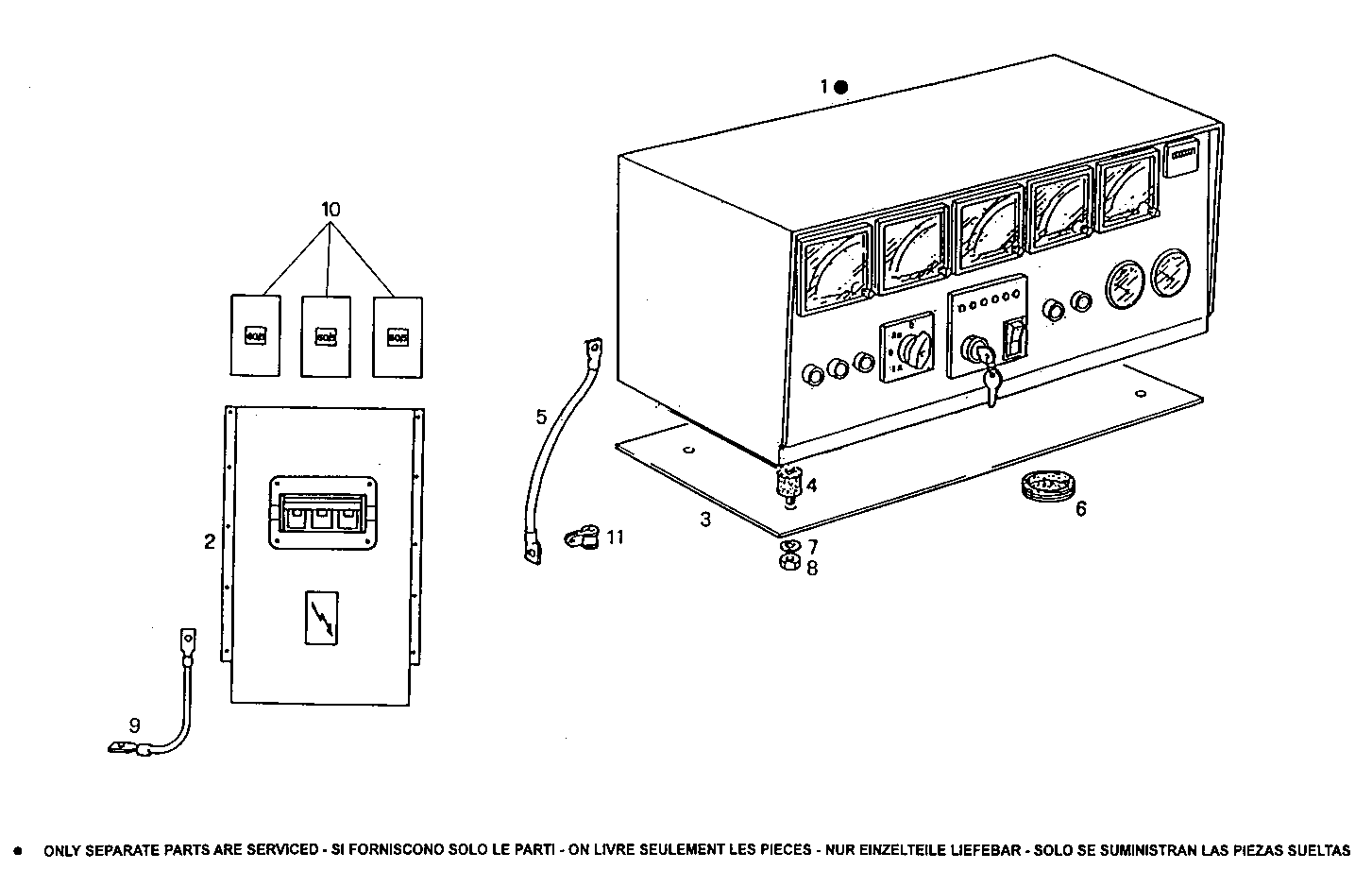

A60230054 MANUAL CONTROL BOARD FOR ELECT. MACHINE - MARELLI [D 03-1997] [from03-1997]
| Item | Part number | Description |
|---|---|---|
| 1 | 8023900 | CONTROL BOARD ASSY 220V 60HZ [from 03-97] |
| 2 | 8023914 | SWITCH 800A |
| 3 | 8019260 | COVER |
| 4 | 8104155 | DOWEL |
| 5 | 8006993 | EARTH WIRE |
| 6 | 8113214 | INSULATING RING |
| 7 | 17088474 | WASHER Ø6X12 MM |
| 9 | 8110852 | EARTH WIRE |
| 10 | 8093498 | AMMETER TRANSFORMATOR REVALCO TAR 5 - 800/5A |
| 11 | 17314890 | CLIP |
