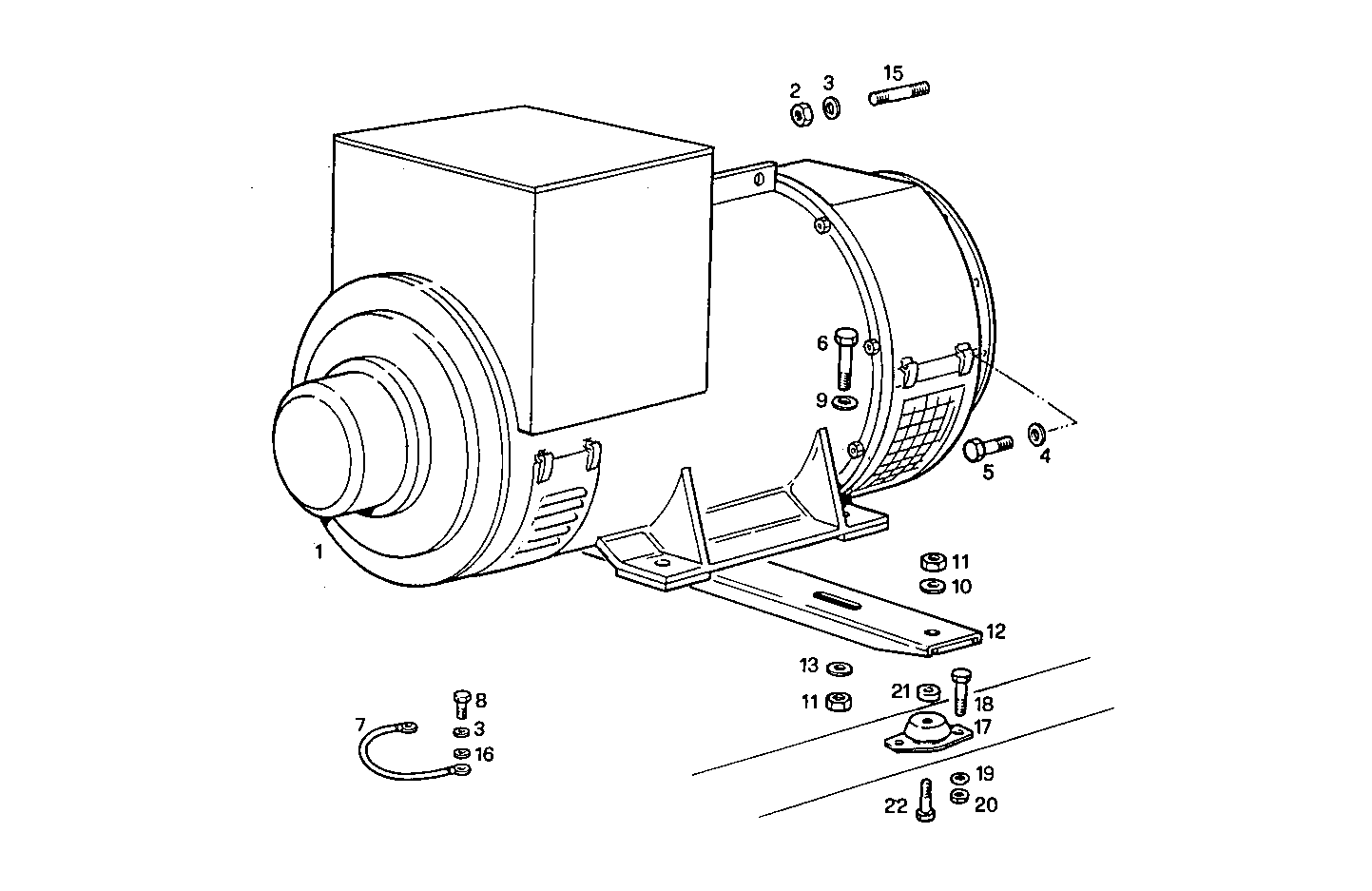

| Item |
Part number |
Description |
|
1 |
8023227 |
ELECTRIC MACHINE HCK 434 1F 50-60HZ |
|
2 |
17038221 |
HEXAGON NUT M10 |
|
3 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
4 |
17091174 |
SPRING WASHER Ø12X24 MM |
|
5 |
15540431 |
HEXAGON BOLT M12X1,25X30 MM |
|
6 |
16620224 |
SCREW M24X90 |
|
7 |
8006993 |
EARTH WIRE |
|
8 |
15970521 |
HEXAGON BOLT M10X20 MM |
|
9 |
8016962 |
WASHER |
|
10 |
17093174 |
WASHER Ø24X46X5,4 MM |
|
11 |
17039721 |
HEXAGON NUT M24 |
|
12 |
8016859 |
SUPPORT |
|
15 |
17368124 |
STUD M10X1,5X35 MM |
|
16 |
17095104 |
WASHER Ø10X21X2 MM |
|
17 |
4955094 |
RUBBER PAD |
|
18 |
8015164 |
SCREW CONNECTOR |
|
19 |
17091974 |
SPRING WASHER Ø14X32 MM SP=3,4 MM |
|
20 |
17038721 |
NUT M14X2 [from ...] |
|
21 |
8108891 |
SPACING BAR |
|
22 |
16620624 |
SCREW M24X130 |
