GE8281SRi26.02N970

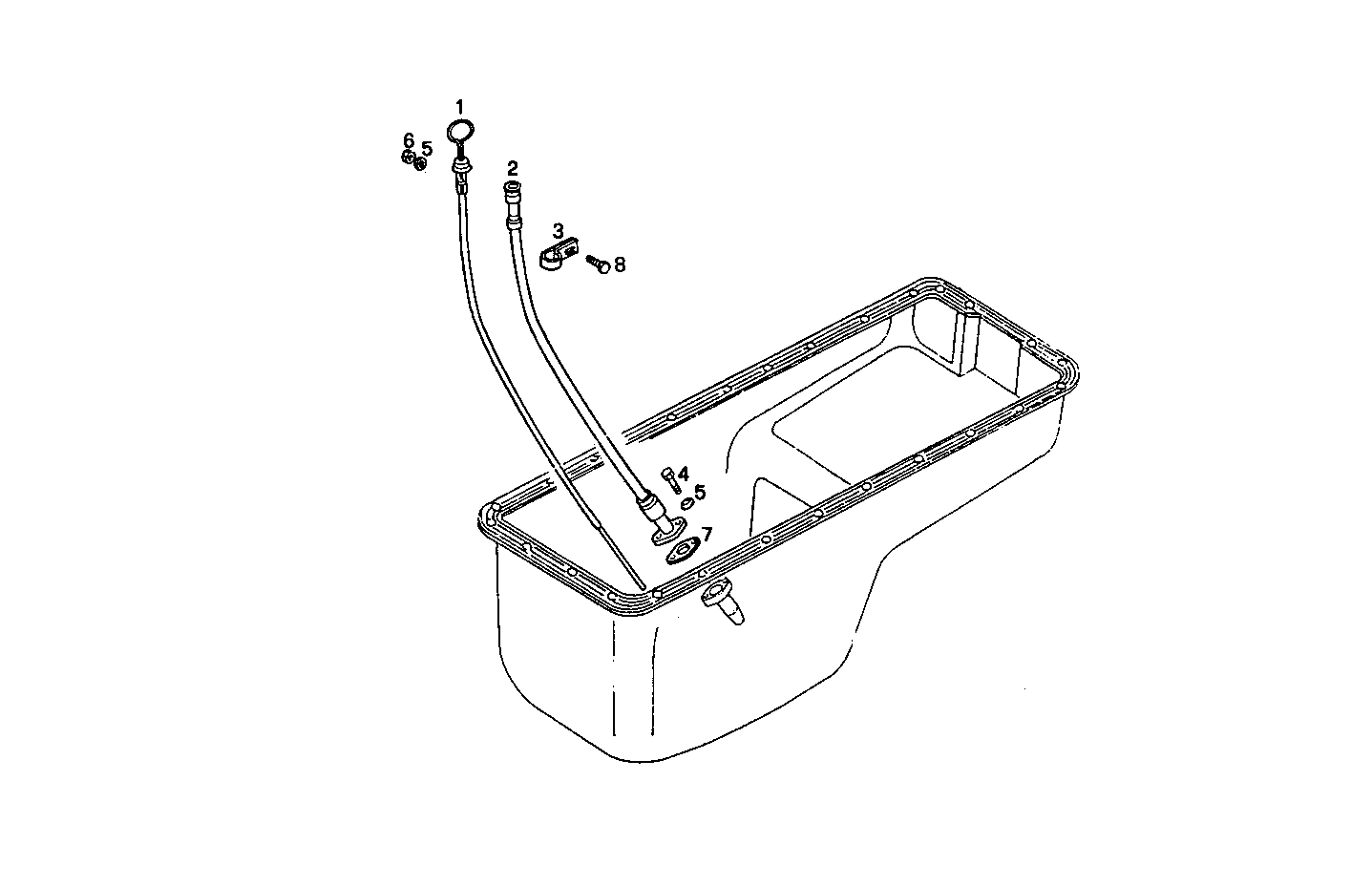

2710.005 OIL DIPSTICK
| Item | Part number | Description |
|---|---|---|
| 1 | 4696147 | OIL DIPSTICK |
| 2 | 8007179 | ROD GUIDE |
| 3 | 8100228 | CLIP |
| 4 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 6 | 17037931 | HEXAGON NUT M8X1,25 |
| 7 | 98418621 | GASKET |
| 8 | 16605524 | HEXAGON BOLT M8X20 MM |
