GE8281SRi27.00A955

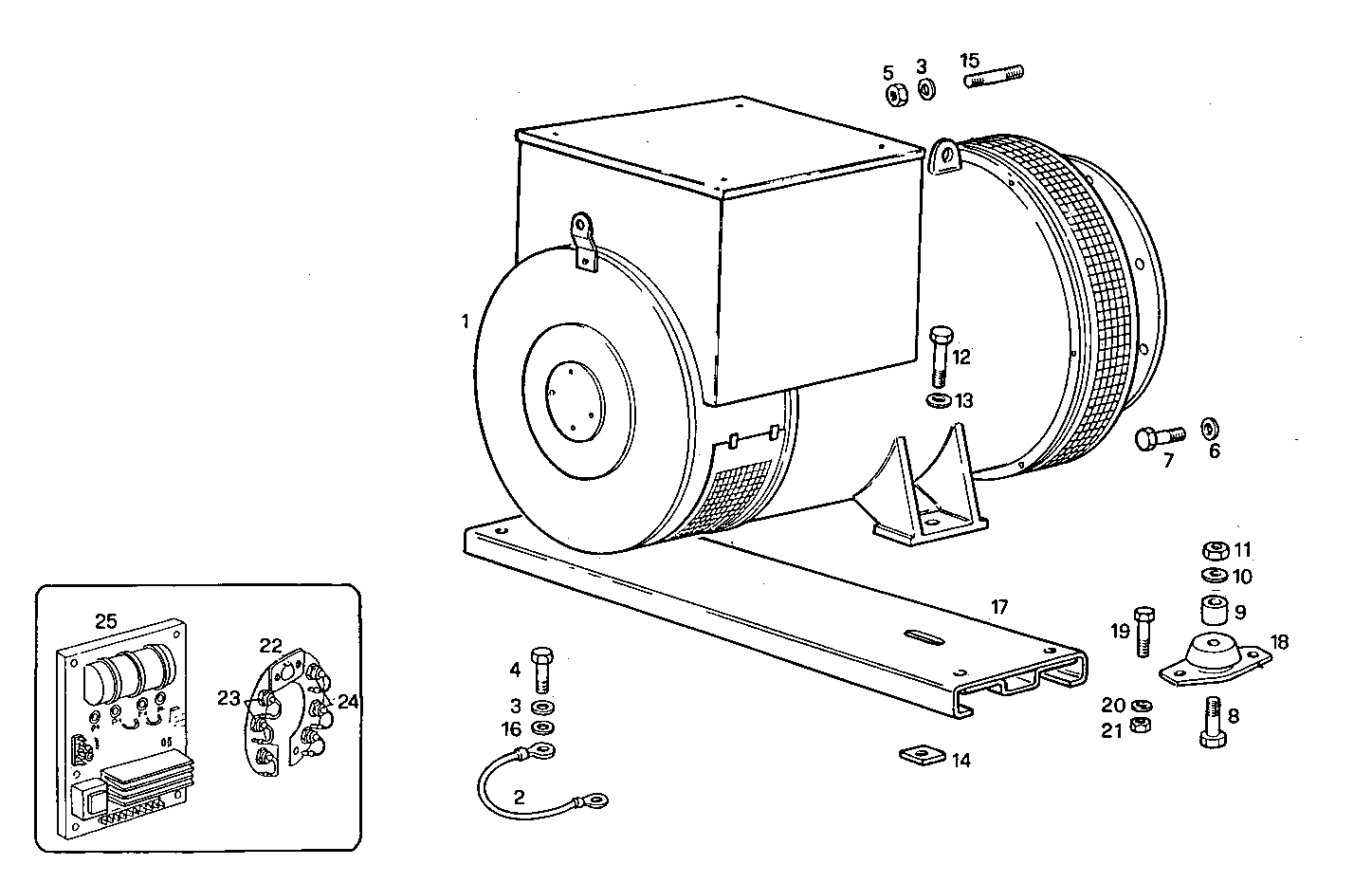

A37110070 SINGLE BEARING ELECTRIC MACHINE - LEROY

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8018703 ELECTRIC MACHINE LSA 471 L9 50Hz
2 8006993 EARTH WIRE
3 17090174 SPRING WASHER Ø10X20 MM
4 15970521 HEXAGON BOLT M10X20 MM
5 17038221 HEXAGON NUT M10
6 17091174 SPRING WASHER Ø12X24 MM
7 15540431 HEXAGON BOLT M12X1,25X30 MM
8 16620224 SCREW M24X90
9 8016025 SPACING BAR
10 17093174 WASHER Ø24X46X5,4 MM
11 17039721 HEXAGON NUT M24
12 16620124 SCREW M24X3X80
14 8019197 PLATE
15 17368124 STUD M10X1,5X35 MM
16 17095104 WASHER Ø10X21X2 MM
17 8019196 SUPPORT
18 4755094 RETAINER
19 8015168 SCREW
20 17091974 SPRING WASHER Ø14X32 MM SP=3,4 MM
21 17038721 NUT M14X2 [from ...]
22 8092295 SUPPRESSOR
23 8092297 DIODE -
24 8092296 DIODE +
25 8092292 EL.MACHINE VOLTAGE REGUL.
