GE8281SRi27.00N970

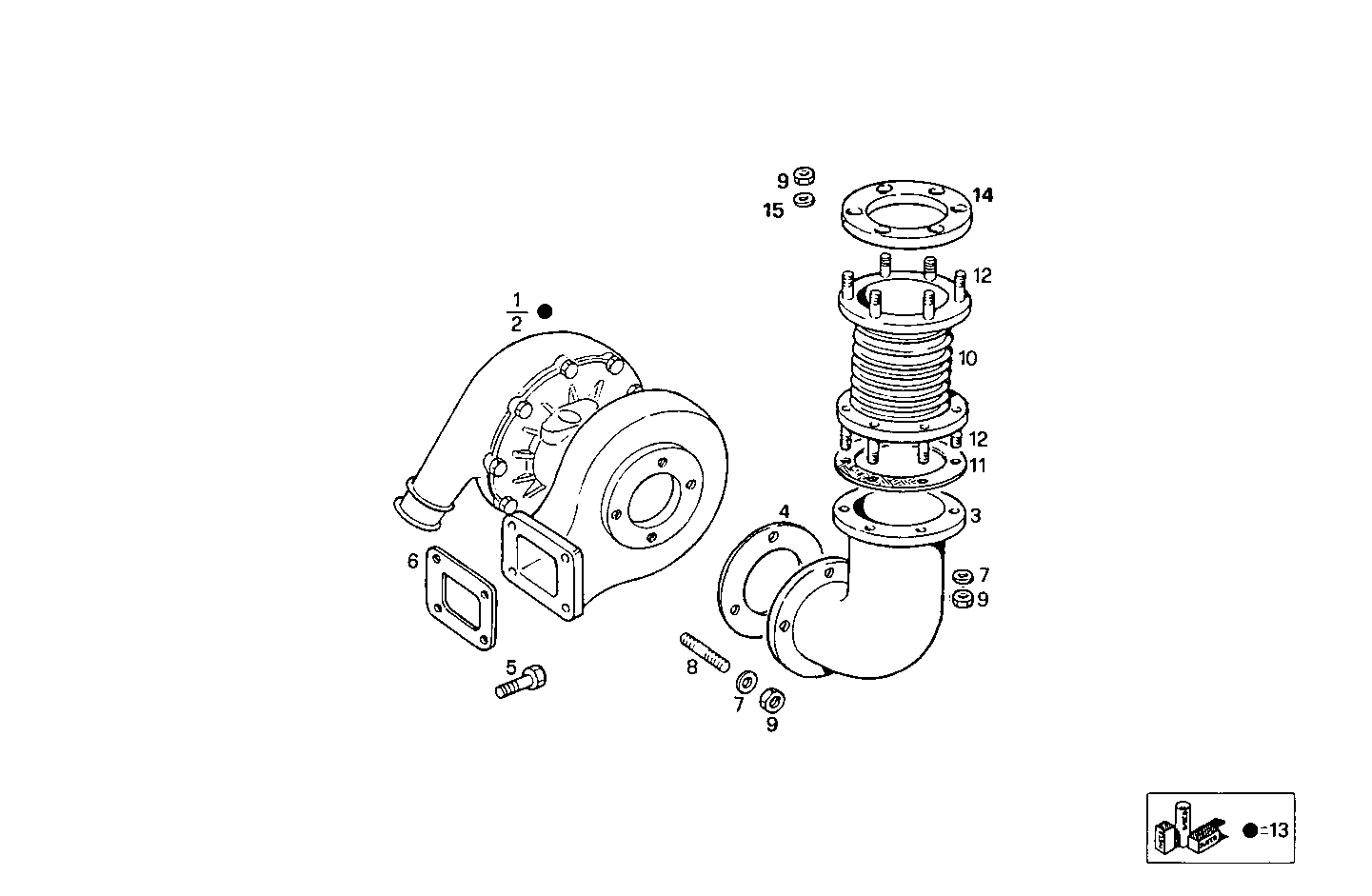

2400.054 TURBOCHARGER
| Item | Part number | Description |
|---|---|---|
| 1 | 98435386 | TURBOCHARGER ASSY GARRETT - LEFT |
| 2 | 98435387 | TURBOCHARGER ASSY GARRETT - RIGHT |
| 3 | 8018125 | EXHAUST ELBOW |
| 4 | 4729026 | GASKET |
| 5 | 4830633 | HEXAGON BOLT M10X28 MM |
| 6 | 4632123 | GASKET |
| 7 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 8 | 16729534 | STUD M8X30 MM |
| 9 | 17037931 | HEXAGON NUT M8X1,25 |
| 10 | 4935378 | EXHAUST BELLOWS |
| 11 | 8009606 | GASKET |
| 12 | 13516921 | STUD M8X12X22 MM |
| 13 | 93161431 | KIT-TURBOCHARGER |
| 14 | 4919183 | FLANGE |
| 15 | 16665514 | WASHER Ø8 MM |
