GE8281SRi27.00N970

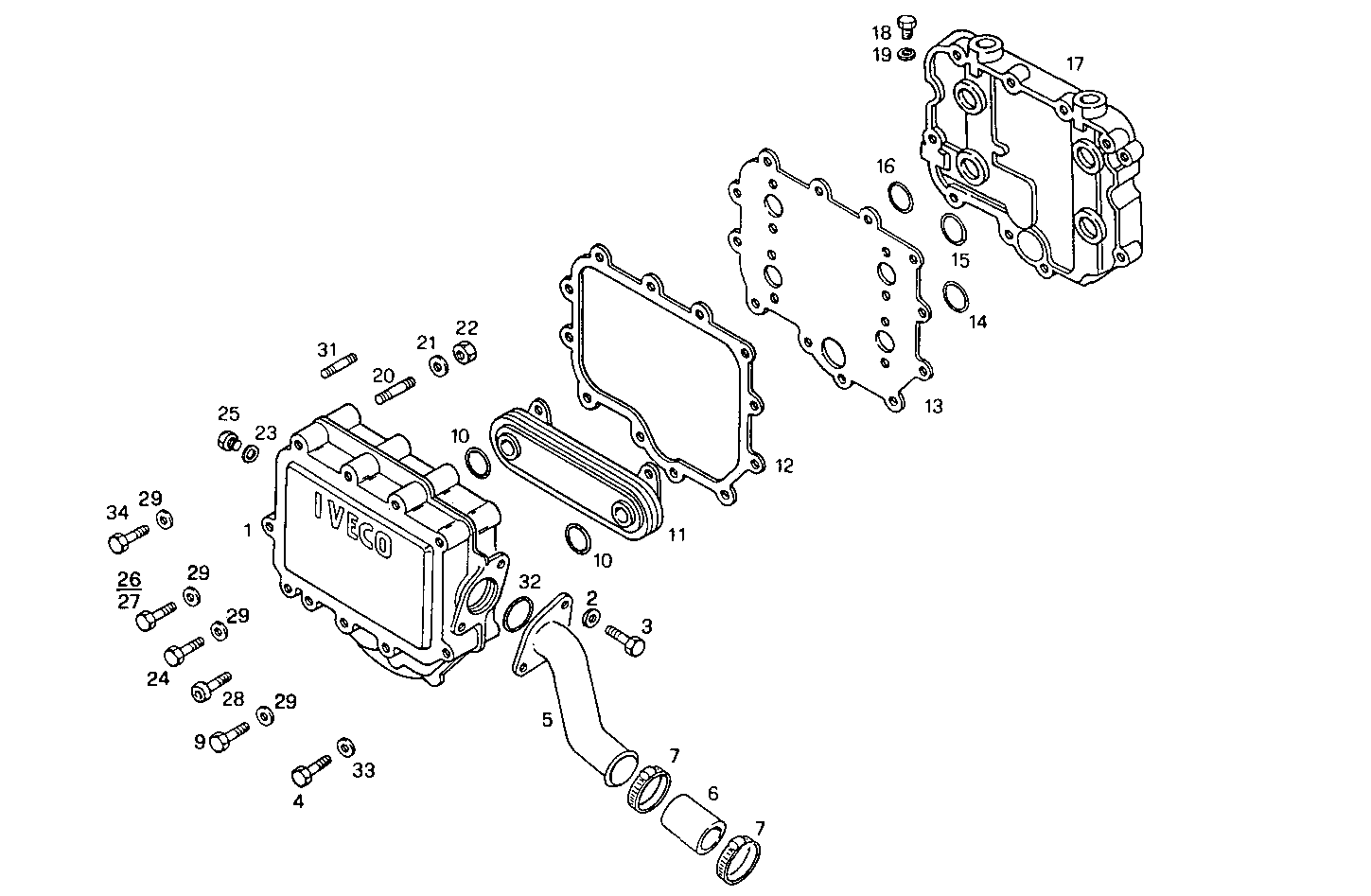

3100.036 OIL - WATER HEAT EXCHANGER

Iveco/FPT OIL - WATER HEAT EXCHANGER

Item Part number Description
1 4799546 HEAT EXANGER BODY
2 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
3 16606724 HEXAGON BOLT M8X90 MM
4 11343821 HEXAGON BOLT M10X1,25X50 MM
5 4799544 WATER PIPE
6 98421380 WATER HOSE
7 17764992 CLIP Ø50-70 MM
9 16605624 HEXAGON BOLT M8X25 MM (8.8)
10 14459081 O-RING Ø2,62X44,12 MM
11 98415302 OIL COOLER
12 98419012 FLAT ENGINE GASKET
13 4799548 HEAT EXCHANG.COVER
14 17283980 O-RING Ø50,47 MM SP=2,62 MM
15 17282781 O-RING Ø31,42 MM SP=2,62 MM
16 17282981 O-RING 2,62x34,59
17 4799550 SUPPORT ASSY
18 16993611 THREADED PLUG M32X1,5
19 10265060 SEAL GASKET Ø32X38 MM SP=1,5 MM
20 16729221 STUD
21 17089574 WASHER Ø8X16 MM
22 17037931 HEXAGON NUT M8X1,25
23 4858606 GASKET Ø10X14X1 MM
24 16606124 HEXAGON BOLT M8X50 MM
25 4753563 PLUG M10X1,5
26 16606824 HEXAGON BOLT M8X100 MM
27 16045421 HEXAGON BOLT M8X110 MM
28 16690424 CYLIND-HEAD SCREW M8X1,25X16 MM
29 17094914 WASHER 8x16
31 16729521 STUD
32 17283681 O-RING Ø45,6 MM SP=2,62 MM
33 17095125 WASHER
34 16606924 SCREW M8X110
